|Place of Origin:||China|
|Certification:||ISO / SGS Audit|
|Minimum Order Quantity:||1pcs|
|Packaging Details:||Electric Motor Stator Testing Machine is Packed By Wood Box.|
|Delivery Time:||49 - 73 days|
|Payment Terms:||T/T, L/C|
|Supply Ability:||1pcs / 49 - 73 days|
|Name:||Refrigerator / Air Conditioner Stator Motor Testing Equipment / Machinery||Output Frequency:||50Hz / 60Hz|
|Waveform Acquisition:||5kHz-40Mhz||Several Tests:||1-9 Times, Continuous|
|Test Range:||200-5000V||Usage:||Motor Stator Test|
automatic motor winding machine,
motor winding equipment

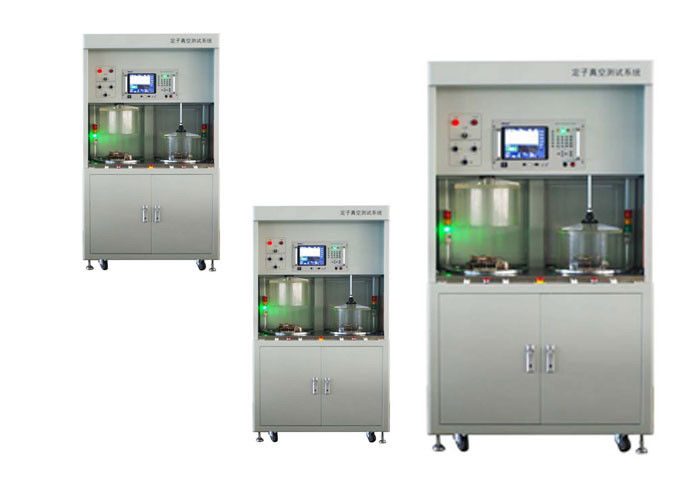

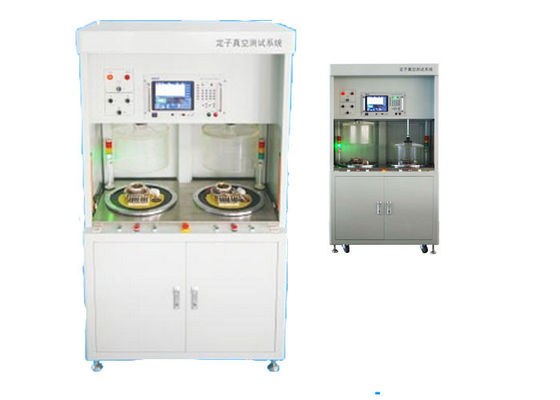

Refrigerator / Air Conditioner Stator Motor Testing Equipment / Machinery SMT-AN96951V
1. This machine is used for testing stator.
2. It is applied to integrated test varieties of compressor stator in refrigerator, air conditioner and heater etc.
3. Each test items could be on or off randomly.
4.The testing data will show on the screen.
5. All the testing data will be saved automatically.
(1) Main Technical Information Of Our Product
|AN969-02071S(F)||Stator test bench|
|AN969-01081B(F)||8 channels connection box|
|AN969-01161B(F)||16 channels connection box|
1. Winding reverse: check if the stator winding is reversed
2. Multi-channel: Provide 8 channels configuration to 2 station mode, 16 channels configuration to single station mode
3. Large ACW capacity: Standard is 3KV/20mA, but can be up to 5Kv/100mA.
4. Large IW capacity: IW is improved to 0.1uF storage capacitor, stronger identification
5. Modify ACW mode: Case Hight voltage, wire high voltage and phase to phase mode
(3) Machine Main Characteristic
A station detects: vacuum between turns, voltage, insulation resistance, anti-embedded magnetic field rotation, once wiring complete all the testing;
Accurate and reliable: DSP technology, 14-bit, high-precision 16-bit AD converter, test consistency, repeatability and stability;
High speed and efficiency: all the testing process consists of a high-performance processing core of control, no multi-processor communications, high-speed production to meet the needs of the beat;
High integration: Cabinets beautiful atmosphere, compact structure, rational use of space, the components are integrated inside the cabinet, to avoid the piping, wiring connection problems caused by multi-machine combination, to maximize reduce equipment footprint, reduce staff travel distance and reduce Labor intensity.
Security is good: hand operation start button design, high sensitivity safety light curtain protection, effective protection of the operator and other personnel from mechanical damage and damage to high-voltage electric shock;
Vacuum generator speed: duplex test, each station is equipped with separate high-speed vacuum generator, vacuum gauge, a stator routine testing can be performed simultaneously with the vacuum generator, improve test beats, under pressure -60kpa 4-speed motor stator typical test time ≤10 seconds;
USB Data Support: Support U disk import, export model parameters, export test results; when more than one use in a device input model parameters, import through U disk to another device, such that multiple devices at the same time to create a new type of operation easier fast;
Serial Communication Support: Support RS232,485 serial communication, supports serial bar code scanner to read the data;
Easy maintenance: modular hardware design, the boot program self-diagnosis fault module can be 10 minutes quick fix; you can add or replace cards for device model upgrades, pneumatic components can be individually controlled movement, easy to debug and maintenance;
(5)Production Line Profile
With good service, professional team and reliable quality, SMT provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.
