Automatic Coil Winding Machine PLC Displayer 0.2~1.0 MM Wire Diameter
Product Summary
Automatic Coil Winding Machine PLC Displayer 0.2~1.0 MM Wire Diameter This machine is primarily designed for winding 2-pole stators, completing one stator per cycle to significantly enhance production efficiency. It features automatic loading and mold removal to reduce labor intensity. The winding ...
Product Custom Attributes
Name:
Automatic Coil Winding Machine PLC Displayer 0.2~1.0 MM Wire Diameter
Wire Speed:
≤2000r/min
Transfer Number:
2pcs
Condition:
New
Warranty:
12 Months
Winding Head:
1pcs
Max Stack Height:
≤150mm
Application:
Stator Production
Automatic Grade:
Full-Automatic
OEM:
Yes
Highlight:
PLC display stator winding machine
,automatic coil winding machine 0.2-1.0mm
,wire winding machine with PLC control
Basic Properties
Place of Origin:
China
Brand Name:
SMT
Certification:
ISO9001/SGS/CE
Model Number:
SMT-LR150
Trading Properties
Minimum Order Quantity:
1 Set
Price:
Negotiable
Packaging Details:
Wooden Case Suitable for Sea Transportation.
Delivery Time:
50-60 days for 1set
Payment Terms:
T/T,L/C
Supply Ability:
1pcs/ 50-60 days
Product Description
Automatic Coil Winding Machine PLC Displayer 0.2~1.0 MM Wire Diameter

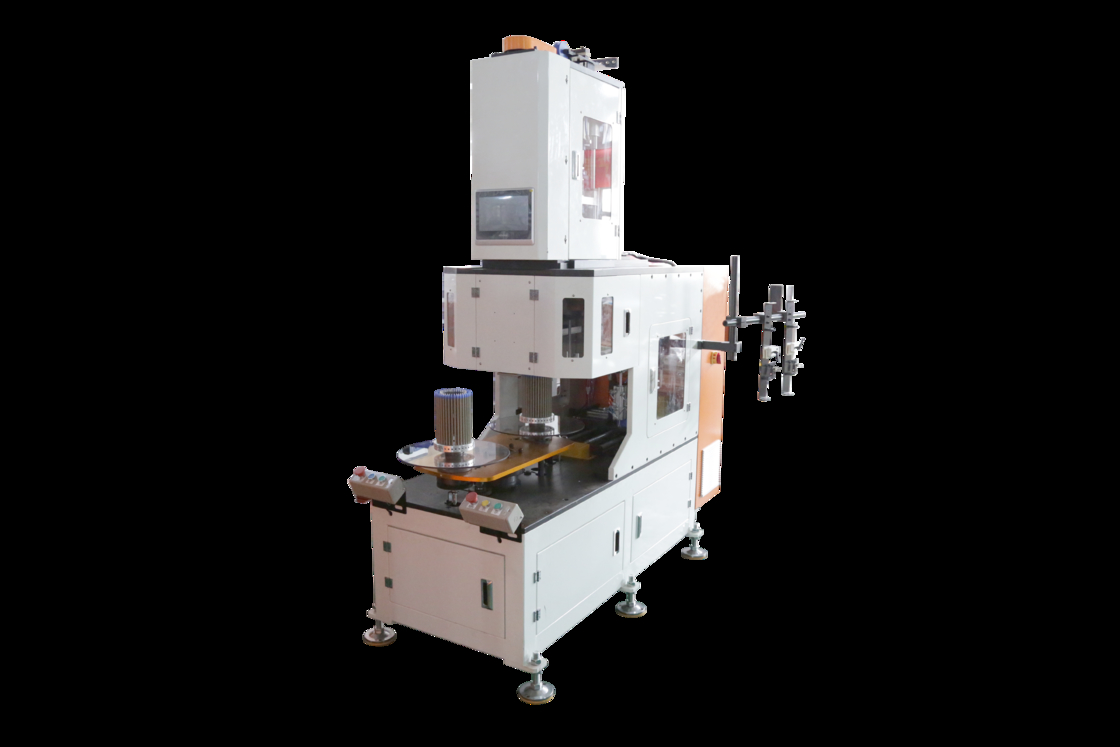

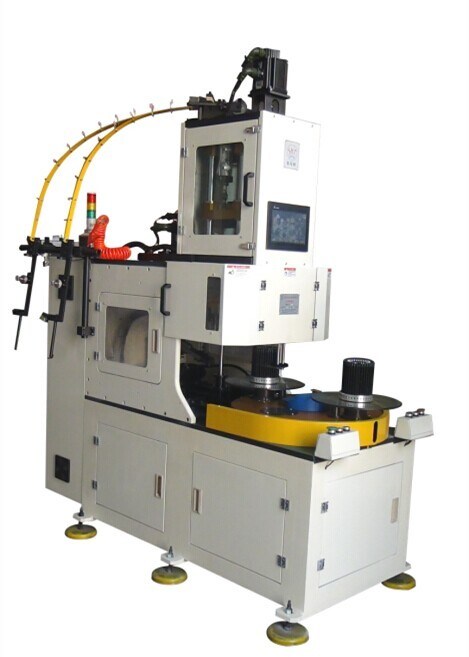

This machine is primarily designed for winding 2-pole stators, completing one stator per cycle to significantly enhance production efficiency. It features automatic loading and mold removal to reduce labor intensity. The winding process supports tapping (5 times) and clamping functions, with adjustable fly fork lever stroke and pivot angle. The frame is constructed from anodized aluminum alloy with imported acrylic protection. Electrical control is managed by PLC, displayer, and frequency converter for safe and reliable operation.
Machine Main Function and Characteristics
- Double-station automatic vertical coil winding machine with two-station turntable structure
- Servo system for rotation and index transfer
- Precisely winds coils onto forklike flywheel and transfers to coil inserter with high efficiency
- Includes one set winding tooling with three vertical winding forms
- Full tooling change possible in approximately 15 minutes
- Servo-controlled main spindle with ±1 turn accuracy
- PLC controls turn number, winding speed, tooling sunk height/speed, and winding direction
- Servo system for X/Y spindle wire hooker and cutter with adjustable bridge/lead wire length
- Supports two-wire simultaneous winding
- Displays dynamic turns, actual turns, set turns, failure causes, and position self-check
- Automatic stop when copper wire runs out
- Minimal vibration and noise operation
Main Technical Specifications
| Model | LR150 |
|---|---|
| Winding Head | 1pc |
| Wire Diameter | 0.3-1.0mm |
| Stack height | ≤150mm |
| Unload speed | ≤2000r/min |
| Winding precision | ±0turn |
| Air pressure | ≥0.6MPa |
| Power supply | 380V/50/60Hz 8Kw |
| MOQ | 1set Automatic Coil Winding Machine |
| Certification | ISO9001:2008; SGS |
Applications
Suitable for winding 2-pole, 4-pole, and 6-pole coils.
OEM/ODM Capabilities
Leveraging experienced engineers, skilled professionals, advanced equipment, and strict manufacturing controls, we provide optimized solutions for electric motor manufacturing. Our machines are exported worldwide (USA, Italy, Australia, India, Brazil, Mexico, Turkey, Thailand, Vietnam, Iran, etc.) and are recognized for durable performance, competitive pricing, and excellent after-sales service.
Production Line Services
We offer comprehensive technical consulting and turn-key project services for AC/DC/BLDC motor manufacturing, including cost evaluation, manufacturing know-how, staff training, and complete project implementation.
Related Products
Contact Our Experts And Get A Free Consultation!
Our mission is to offer "High Quality" & "Good Service" & "Fast Delivery" to help our clients to gain more profits.
