adjustable width slot wedge cutter
,stator paper cutting machine
,wedge cutting machine with warranty
-
NameStator Paper Cutting Machine / Slot Wedge Forming Cutting Machine
-
Feeding Length9~200mm
-
Folding Width2~5mm, Adjustable
-
Folding & Cutting Precision0.2mm
-
Machine WeightAbout 150kg
-
Dimension (L X W X H)460 X 910 X 1220mm
-
Place of OriginChina
-
Brand NameSMT
-
CertificationISO/SGS Audit
-
Model NumberSMT-CG200
-
Minimum Order Quantity1pcs
-
PriceNegotiable
-
Packaging DetailsPlywood Box With Reinforcement
-
Delivery Time33 - 59 days
-
Payment TermsT/T,L/C
-
Supply Ability1pcs / 27 - 57 days

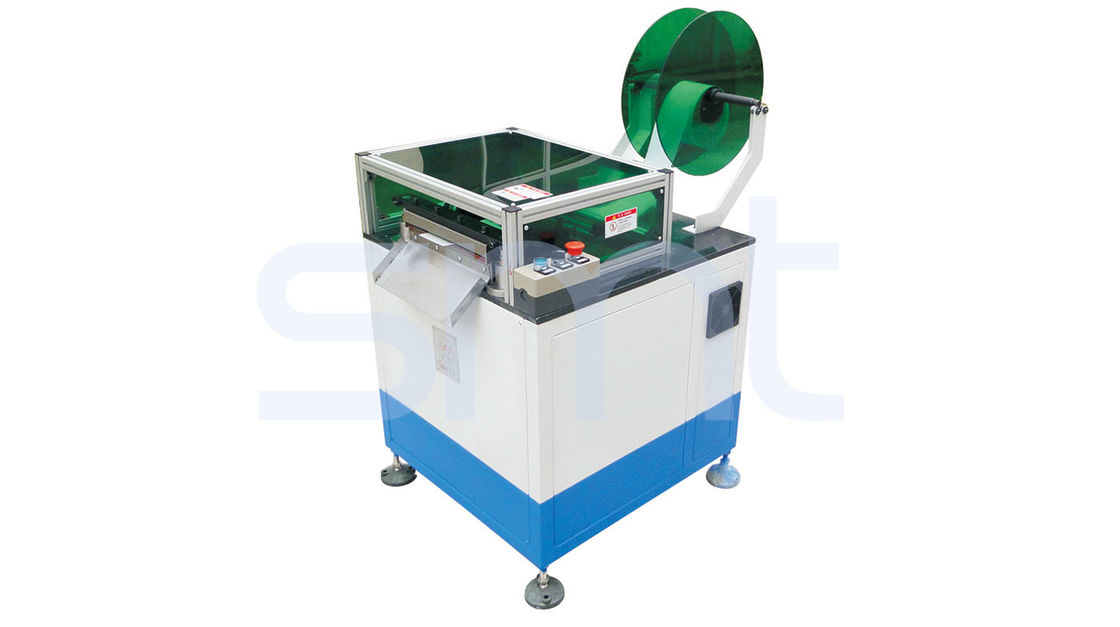

Slot Wedge Stator Paper Cutting Machine Adjustable Width

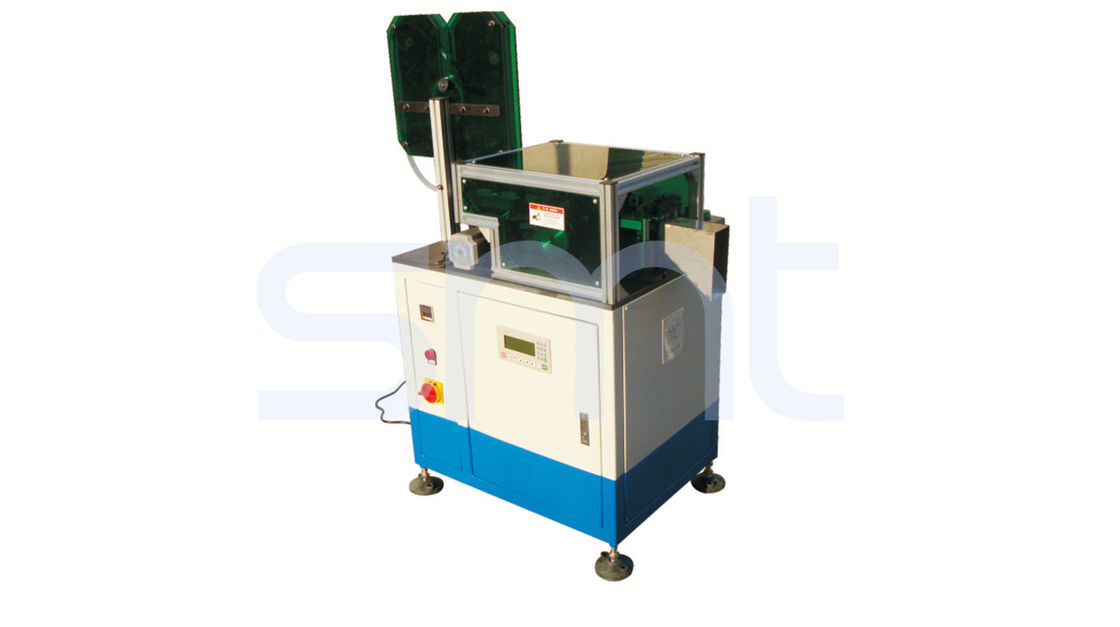

Slot Wedge Stator Paper Cutting Machine Adjustable Width
SMT-CG200 Stator Paper Cutting Machine / Slot Wedge Forming Cutting Machine
Insulation paper forming and cutting machine feeds insulation paper from the reel, forms it to suit the shape of stator slot with heater and cuts it to a preset length. The only thing operator has to do is to load and unload the insulation paper and press button to start cutting.
Main Technical Features
| Item | Data |
|---|---|
| Model | CG200 |
| Suitable paper roll width | 20~140mm |
| Suitable paper thickness | 0.16~0.36mm |
| Feeding length | 9~200mm |
| Folding width | 2~5mm, adjustable |
| Cutting speed | About 130 pieces per minute |
| Folding & cutting precision | 0.2mm |
| Power supply | 220V, 50/60Hz, 0.5kW |
| Machine weight | About 260kg |
| Dimension (L x W x H) | 460 x 910 x 1220mm |
Key Applications
- Length of edge fold, paper feed length and width is adjustable
- Apply to cut insulation paper for hand-made and multi sizes motor
- Heating forming model could be tailor-made
- High efficiency and easy operation
- OEM available, same quality much lower price
Machine Characteristics
Special design specific to different designs or sizes of slots; can finish insulation paper insertion at a time; automatic adjustment to perimeter, automatic cutting paper, automatic hemming and automatic inserting when inserting to various or different-sized slots.
The equipment adopts programmable terminal (touch screen) that can set and display necessary information, characterized by simple operation, low noise, fast speed and high automation.
OEM/ODM Services
- Innovative technical team provides complete technical solutions
- Specialized after-sale team offers rapid door-to-door service
- Widespread domestic and international service network
- 24/7 customer support available
Production Line Profile
SMT provides complete motor manufacturing technical consulting and turn-key project services, including cost evaluation, manufacturing know-how, staff training, and complete production line setup.
About Our Company
Suzhou Smart Motor Equipment Manufacturing Co., Ltd is a high-tech enterprise specializing in motor manufacturing equipment. With 150 employees including 30+ engineers, we design and manufacture complete production lines for various motor types, certified with ISO9001:2000 Quality Management System.
