Automatic Slot Insulation Paper Inserting Machine OEM Adjustable Folding Width

Automatic Slot Insulation Paper Inserting Machine OEM Adjustable Folding Width

  • Automatic Slot Insulation Paper Inserting Machine OEM Adjustable Folding Width
Automatic Slot Insulation Paper Inserting Machine OEM Adjustable Folding Width
Product Details:
Place of Origin: China
Brand Name: SMT
Certification: ISO/SGS Audit
Model Number: SMT-CD150
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Plywood Box With Reinforcement
Delivery Time: 32 - 57 days
Payment Terms: T/T, L/C
Supply Ability: 1pcs / 31 - 58 days
Contact Now
Detailed Product Description
Name: Slot Insulation Paper Polyester Inserting Machine DC Motor Armature Forming And Cutting Machine Feeding Length: 10~200mm
Folding Width: 2~5mm, Adjustable Model: SMT - CD150
Machine Weight: About 160kg Color: White
OEM: Yes Weight: 150Kg
High Light:

motor coil winding machine

,

Rotor Casting Machine

Slot Insulation Paper Polyester Inserting Machine DC Motor Armature Forming and Cutting Machine





(1) Main Technical Information



Item Data
Model CD150
Suitable paper roll width 10~100mm
Suitable paper thickness 0.15~0.35mm
Feeding length 10~200mm
Folding width 2~5mm, adjustable
Cutting speed About 120 pieces per minute
Folding & cutting precision 0.2mm
Power supply 220V, 50/60Hz, 0.5kW
Machine weight About 160kg
Dimension (L x W x H) 500 x 900 x 1200mm



(2) Application



Electric engines of generators, electric engines of washing machine, air conditioning, water pump, compressors, electric engines of fan, also applicable to copper wires, aluminum wires and some special wires, Fan motors, washing machine motor, and all kinds of small motor, square, circular, multi-layer coil winding .

1) Length of edge fold, paper feedin length and width is adjustable
2) Apply to cut insulation paper for hand-made and multi sizes motor
3) Heating forming model could be tailor-made .
4) High efficiency and easy operation
5) OEM available, same quality much lower price


(3) Machine Main Characteristic



It is a special design specific to different design or different sizes of slot; can finish insulation paper insertion at a time; automatic adjustment to perimeter, automatic cutting paper, automatic hemming and automatic inserting when inserting to various or different-sized slot; use servo paper inserting machine to feed paper and settle breadth; interpersonal interface sets required specific parameter; forming mould is adjustable to different sizes of slot automatically; characterized by simple operation, low noise, fast speed and high automaticity.
The equipment adopts programmable terminal, also called touched screen, that can set and display necessary information, it is easy to operate and reliable.

Electric engines of generators, electric engines of washing machine, air conditioning, water pump, compressors, electric engines of fan, also applicable to copper wires, aluminum wires and some special wires, Fan motors, washing machine motor, and all kinds of small motor, square, circular, multi-layer coil winding .



(4) OEM/ODM



Innovational technical team provides perfect complete technical solutions, to satisfy every customer’s unique requirement;
Specialized after-sale team and engineers offer superior quality, rapid after-sale service door to door, to solve customer’s all after-sale problems;
Wide spreaded domestic after-sale service service network stations and overseas agencies ensure of powerful after-sale service;
Multi communication methods and full time customer service personnel dispel customer’s after-sale scruples 24 hours.



(5)Production Line Profile



With good service, professional team and reliable quality, Nide provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.

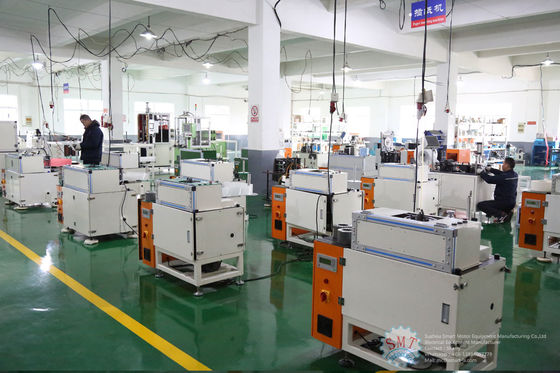

(6) About Our Factory



Suzhou Smart motor Equipment Manufacturing Co.,Ltd is one of the high-tech key enterprises which specialize in designing, producing and selling motor manufacturing equipments in China. The company now has nearly 150 employees, including more than 30 engineers and technicians, with the building area about 20,000 square meters and a hundred sets of advanced production and test equipments. It is now qualified for designing and manufacturing full production line (starts from coil winding to final forming of a stator) for AC motors such as home appliance motor, industrial medium and small motors, pump motor, rolling door motor and automobile motor etc. In 2012, SMT passed the certification of ISO9001:2000 Quality Management System.
