Multi-Pole Stator Winding Machine Winder Equipment 220V 50Hz / 60Hz
  • name
  • name

Multi-Pole Stator Winding Machine Winder Equipment 220V 50Hz / 60Hz

MOQ: 1 Set
Price: Negotiable
Standard Packaging: Wooden Case Suitable for Sea Transportation.
Delivery Period: 35-69 days
Payment Method: L/C,T/T
Supply Capacity: 1pcs / 35-69 days
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
SMT
Certification
ISO9001 / SGS
Model Number
SMT-WR100
Name:
Automatic Multi-Pole Stator Coil Winding Machine Winder Equipment
Flier:
200mm
Transfer Number:
2-6pcs
Power Supply:
220V/50/60Hz 1.5Kw
Dimension:
(L)1051*(W)1811*(H)1501mm
Winding Head:
2
Air Pressure:
0.6-0.7Mpa
Wire Diameter:
0.15-0.9mm
Highlight:

220V stator winding machine

,

multi-pole stator winder equipment

,

50Hz 60Hz stator winding machine

Product Description
Multi-Pole Stator Winding Machine Winder Equipment

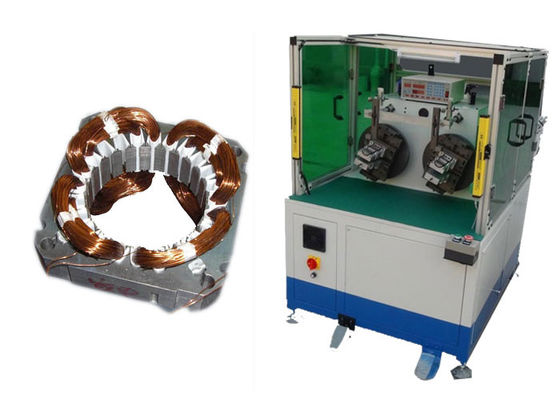

This advanced multi-pole stator winding machine operates on 220V 50Hz/60Hz power supply. It features Mitsubishi program controller and GOT for intuitive man-machine interaction, enabling easy modification and storage of winding parameters. The precisely calculated cam combination ensures accurate winding processes, while the fixed fixture and protective sleeve design guarantee quick, exact, and safe wire hanging operations.
Technical Specifications
Model WR100
Wire Diameter 0.15-0.8mm
Rotating Speed 800r/min
Winding Head 2pcs
Swing Diameter 250mm
Max. Winding Distance 160mm
Air Pressure 0.4-0.7Mpa
Power Supply 220V/50/60Hz 1.5Kw
MOQ 1pcs
Dimension (L)1050*(W)1800*(H)1500mm
Operation Process
Production efficiency averages approximately 1000 pieces per 8-hour shift, varying based on armature slots and turn count. The automated process begins with manual armature loading onto the shuttle. Upon pressing START, the shuttle delivers the armature to the winding position where automatic winding, indexing, and wire cutting occur. After completion, the shuttle removes the finished armature, and the operator unloads it to complete the cycle.
Key Features & Capabilities
  • Complete winding tooling set with three vertical winding forms included
  • Quick tooling changeover (approximately 15 minutes)
  • Two-station turntable with servo system for rotation and indexing
  • Capable of three-wire simultaneous winding
  • Servo motor-controlled main spindle with ±1 turn accuracy
  • Adjustable working rotation speed with minimal vibration and noise
  • Prevents enamel damage and wire breakage
  • Automatic stop function when copper wire runs out
  • PLC programming for turn count, speed, tooling height, and winding direction
  • Servo-controlled X and Y spindles for wire hooker and cutter
  • Adjustable bridge wire and lead wire lengths
  • Servo-controlled tooling sunk with up to 6 segment capability
OEM/ODM Services
Leveraging experienced engineers, skilled professionals, advanced equipment, and strict manufacturing process controls, we provide optimized solutions for electric motor manufacturing. Our machines are exported worldwide to countries including USA, Italy, Australia, India, Brazil, Mexico, Turkey, Thailand, Vietnam, and Iran, earning recognition for durability, reliability, competitive pricing, and excellent after-sales service.
Production Line Solutions
SMT offers comprehensive technical consulting and turn-key project services for AC motor, DC motor, and BLDC motor manufacturing. Our services include motor cost evaluation, manufacturing know-how, staff training, and complete project implementation. Our solutions serve various applications including new energy automobile motors, servo motors, generators, three-phase motors, pump motors, compressor motors, household appliance motors, and other induction motors. We specialize in stator and rotor core assembly, slot insulation, automated winding, inserting, fusing, and resin impregnation technologies for diverse stator sizes and slot configurations.
