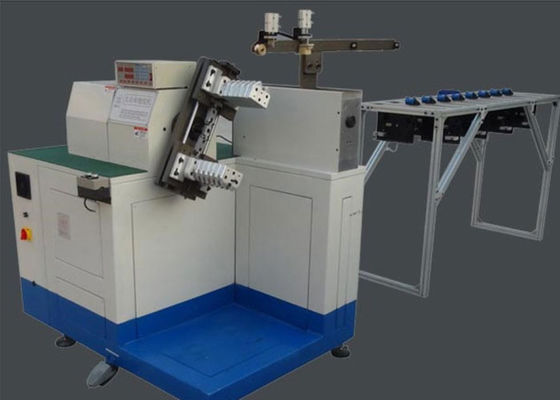

Strong and Durable Automatic Stator Winding Machine / Coil Winding Machine

Strong and Durable Automatic Stator Winding Machine / Coil Winding Machine

  • High Light

    electric motor coil winding machine

    ,

    ceiling fan winding machine

    ,

    Durable Stator Winding Machine

  • Name
    Strong And Durable Electric Induction Motor Stator Coil Winding Machine
  • Color
    White / Blue
  • Flier
    200mm
  • Transfer Number
    2-6pcs
  • Power Supply
    220V/50/60Hz 2.2Kw
  • Weight
    950kg
  • Dimension
    (L)1500*(W)1700*(H)1550mm
  • Winding Head
    8pcs
  • Air Pressure
    0.4-0.6MPa
  • Wire Diameter
    0.3-1.2mm
  • Effective Length Of The Tooling
    ≤400mm
  • Place of Origin
    China
  • Brand Name
    SMT
  • Certification
    ISO9001 / SGS
  • Model Number
    SMT-R650
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Plywood Box
  • Delivery Time
    35 - 68 days
  • Payment Terms
    T/T, L/C, Western Union, D/A, D/P
  • Supply Ability
    1pcs / 35 - 68 days

Strong and Durable Automatic Stator Winding Machine / Coil Winding Machine

Strong and Durable Automatic Stator Winding Machine / Coil Winding Machine SMT - DR450





(1) Description



Model R650
Swing diameter ≤450mm
Effective length of the tooling ≤400mm
Parallel wire number ≤16pcs
Wire diameter 0.3-1.2mm
Wire arraying width 400mm
Power supply 220V/50/60Hz 2.2Kw
Machine weight 950kgs
Air Pressure 0.4-0.6MPa
Machine dimension (L)1500*(W)1700*(H)1550mm



(2) Application
This machine is suitable for 2 poles, 4 poles and 6poles coils winding.

(3) Machine main function and characteristic


Winding tooling: each machine has one set winding tooling and three vertical winding forms.
The whole set of tooling can be changed, and it takes about 15min.
The turntable is two stations structure. It adopts servo system to rotate and index transfer form.
Allow three wires winding simultaneously.
Main spindle is controlled by servo motor. The coil turn number accuracy is ±1 turn.
The working rotation speed can be set . Machine has no distinct vibration and noise.
Free of enamel damage and wire snap. Once the copper wire is run out, machine will automatically stop.
PLC can set turn number, winding speed, tooling sunk height, tooling sunk speed and winding direction.
X andY spindle of wire hooker and wire cutter adopts servo system. It can adjust the length of bridge wire and lead wire.
Tooling sunk adopts servo system. The max segment number of tooling sunk is 6.
