AC / DC 3 Phase / 1 Phase Stator Core Assembly Machine For Stator Coil Winding
Product Summary
AC / DC 3 Phase / 1 Phase Stator Core Assembly Machine For Stator Coil Winding Multistrand Type Coil Winding Machine is specially designed for multiple wire parallel coil winding such as alternator, servo motor and three phase motor. Multistrand Type Coil Winding Machine adopts special purpose ...
Product Custom Attributes
electric motor coil winding machine
,ceiling fan winding machine
,1 Phase Stator Core Assembly Machine
Basic Properties
Trading Properties
Product Description

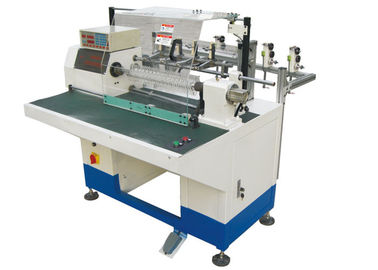

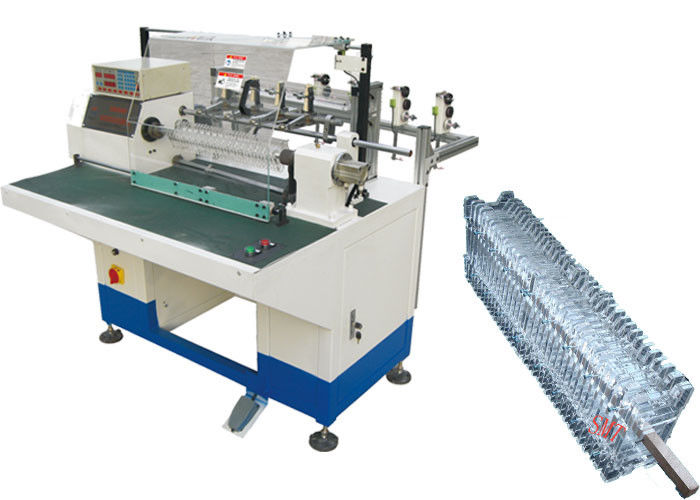

AC / DC 3 Phase / 1 Phase Stator Core Assembly Machine For Stator Coil Winding
Multistrand Type Coil Winding Machine is specially designed for multiple wire parallel coil winding such as alternator, servo motor and three phase motor. Multistrand Type Coil Winding Machine adopts special purpose controller which could set the function of arraying direction, winding start point, slow starting,slow ending, sides stop, auto width, auto reset, ect.
(2)Technical parameter of stator coil winding machine
| Product name | stator coil winding machine |
| Swing diameter | ≤350mm |
| Effective length of tooling | ≤400mm |
| Parallel wire number | ≤16 pcs |
| Wire diameter | 0.2~1.5mm |
| Max RPM | 1600RPM |
| Power supply | 220V/50/60Hz 1.5Kw |
| Air pressure | 0.4~0.6MPa |
| Machine Weight | 900Kg |
| Machine Dimension | 1550mm*1250mm*1550mm |
(3) Machine function and characteristic of stator coil winding machine
This Stator Coil Winding Machine is specially designed for multiple wire parallel coil winding such as alternator, servo motor and three phase motor.
This stator coil winding machine adopts special purpose controller which could set the function of arraying direction, winding start point, slow starting, slow ending, sides stop, auto width, auto reset, ect.
The coil winding machine saves labor and cost.
(4)Competitive advantages:
This machine could set the function of arraying direction, winding start point, slow starting, slow ending, sides stop, auto width, auto reset, ect..
Variety of application, easy operation.
We have Overseas Service Center.
It is suitable for rotor or stator with different model number and dimension.
The operation and tooling change process is easy.
We could customize machine for our customer as per their requirement.
We directly supply our machines to many countries, like USA, France, Turkey, Iran, India, Brazil, Argentina, Mexico etc.
