SMT- LG300 Wedge Cutting Machine Precise Bicycle Frame Coils Winding For Wheel Motor

SMT- LG300 Wedge Cutting Machine Precise Bicycle Frame Coils Winding For Wheel Motor

  • SMT- LG300 Wedge Cutting Machine Precise Bicycle Frame Coils Winding For Wheel Motor
  • SMT- LG300 Wedge Cutting Machine Precise Bicycle Frame Coils Winding For Wheel Motor
SMT- LG300 Wedge Cutting Machine Precise Bicycle Frame Coils Winding For Wheel Motor
Product Details:
Place of Origin: China
Brand Name: SMT
Certification: ISO9001 / SGS Factory Inspection
Model Number: SMT- LG300
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Plywood Box With Sealing Plastic Bags
Delivery Time: 27 - 55 days
Payment Terms: T/T, L/C
Supply Ability: 1pcs/ 26 - 57 days
Contact Now
Detailed Product Description
Name: Precise Bicycle Frame Coils Winding For Wheel Motor / Electric Motor Machine SMT- LG300 Color: White
Stator Diameter: 150-300mm Winding Number: 1-9 Pieces
Stator Height: 15-35mm Power Supply: 220V/ 50/60Hz, 1.5kw
High Light:

Rotor Casting Machine

,

bearing pressing machine

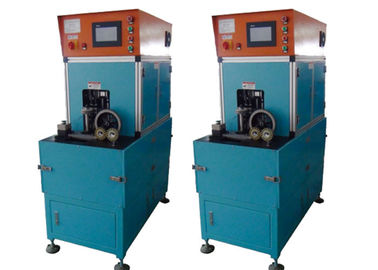

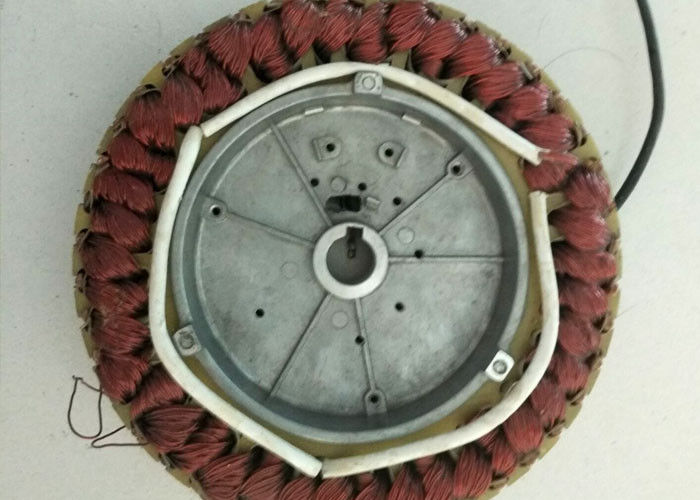

SMT- LG300 Electric Motor Machine Precise Bicycle Frame Coils Winding For Wheel Motor





1. It is suitable for multi-connected and multi-layerwinding.

2. The number of coils it can wind is up to 8 at a time.

3. Automatic slot change, starting winding position, idling start, idling stop, double-ended stop, automatic reset and automatic start could be set in control system.

4. There are two alternate spindles to facilitate higher output.

5. It can be applied to all kinds of micro motors such as fan motor, pump motor, air conditioner motor, three phase machine, etc.



(1) Main Technical Date



Item Data
Model LG300
Suitable wire diameter 0.2-0.7mm
Stator diameter 150-300mm
Winding number 1-9 pieces
Stator height 15-35mm
Power supply 220V/ 50/60Hz, 1.5kw
Machine weight About 400kg
Machine dimension (LxWxH) 1300x 800 x 1500mm



(2) Application


This machine is suitable for 2 poles, 4 poles coils winding.

(3) Machine main function and characteristic


Winding tooling: each machine has one set winding tooling and three vertical winding forms.
The whole set of tooling can be changed, and it takes about 15min.
The turntable is two stations structure. It adopts servo system to rotate and index transfer form.
Allow three wires winding simultaneously.
Main spindle is controlled by servo motor. The coil turn number accuracy is ±1 turn.
The working rotation speed can be set . Machine has no distinct vibration and noise.
Free of enamel damage and wire snap. Once the copper wire is run out, machine will automatically stop.
PLC can set turn number, winding speed, tooling sunk height, tooling sunk speed and winding direction.
X andY spindle of wire hooker and wire cutter adopts servo system. It can adjust the length of bridge wire and lead wire.
Tooling sunk adopts servo system. The max segment number of tooling sunk is 6.



(4) OEM/ODM Profile


Taking full advantage of experienced engineers, skillful professionals, perfect equipment, strict manufacturing process control and wide coverage service net-work, we are dedicated to provide our customers with the optimized solution to electric motor manufacturing. So far, except the big market share in China, we export out machines to the worldwide countries such as USA, Italy, Australia, India, Brazil, Mexico, Turkey, Thailand, Vietnam, Iran, etc, and our machines share the great reputation among customers for it durable, reliable performance, reasonable price and good after-service.



(5) Production Line Profile



With good service, professional team and reliable quality, Nide provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.

SMT- LG300 Wedge Cutting Machine Precise Bicycle Frame Coils Winding For Wheel Motor 0



(6) About Our Factory



Located in Suzhou, a beautiful city of industry, commerce heart in Yangtze River Delta, Smart is specialized in the R&D, manufacturing and sales of induction motor machinery. Our machines produced in Suzhou factory are mainly applied to induction motors such as washing machine motor, air conditioner motor, pump motor, coil motor, three-phase motor, fan motor and compressor motor, etc.
