Automatic Die-Casting Rotor for Electric Motor / Electric Motor Machine

Automatic Die-Casting Rotor for Electric Motor / Electric Motor Machine

  • High Light

    Rotor Casting Machine


    bearing pressing machine

  • Name
    Precise Automatic Die-Casting Rotor For Electric Motor / Electric Motor Machine SMT- ZL4080
  • Working Station
    4 Pcs
  • Rotor O.D
  • Core Length
  • Weight
  • Power Supply
    380V/50/60 9Kw
  • Place of Origin
  • Brand Name
  • Certification
    ISO / SGS Audit
  • Model Number
  • Minimum Order Quantity
  • Price
  • Packaging Details
    Automatic Motor Rotor Die Casting Machine is packed by wood case.
  • Delivery Time
    29 - 67 days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1pcs / 28 - 67 days

Automatic Die-Casting Rotor for Electric Motor / Electric Motor Machine

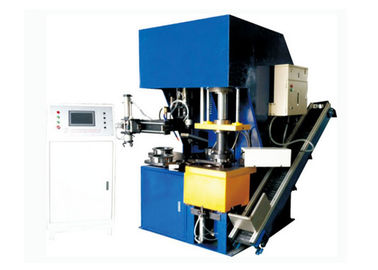

Automatic Die-Casting Rotor for Electric Motor / Electric Motor Machine SMT- ZL4080



Variety of application, easy operation.
We have Overseas Service Center.
It is suitable for stators with different modelnumber and dimension.
The operation and tooling change process iseasy.
We could customize machine for our customeras per their requirement.
We directly supply our machines to manycountries, like USA, France, Turkey, Iran, India, Brazil, Argentina, Mexicoetc.
This machine is controlled by PLC. All the parameter could be seton the touch screen,


(1) Main Technical Features Of Our Product


Model ZL4080
Working station 4 pcs
Rotor O.D ≤ø81mm
Core length ≤ø82mm
Max. working pressure of oil cylinder 22.6MPa
Nominal pressure 400KN
Power supply 380V/50/60 9Kw
Weight ≈4000Kg
Dimension (L)1350×(W)1400×(H)2200mm


(2) Application


1. It is in 4 working station in rotary plate. .
2. Mechanical arms takes and puts self- rivet rotor core in the loading station,and then operator injects liquid aluminum in the casting station , which has smoke-sucking sysytem ,auto releasing agent spraying system and cooling system ,aluminum scraps come back to the aluminum melt oven.
3. It owns the merit of saving labor cost , high effiency and low tooling cost etc.

(3) Machine Main Characteristic

The equipment adopts programmable terminal, also called touched screen, that can set and display necessary information, it is easy to operate and reliable.

Electric engines of generators, electric engines of washing machine, air conditioning, water pump, compressors, electric engines of fan, also applicable to copper wires, aluminum wires and some special wires, Fan motors, washing machine motor, and all kinds of small motor, square, circular, multi-layer coil winding .


(4) OEM/ODM


Innovational technical team provides perfect complete technical solutions, to satisfy every customer’s unique requirement;
Specialized after-sale team and engineers offer superior quality, rapid after-sale service door to door, to solve customer’s all after-sale problems;
Wide spreaded domestic after-sale service service network stations and overseas agencies ensure of powerful after-sale service;
Multi communication methods and full time customer service personnel dispel customer’s after-sale scruples 24 hours.


(5) Production Line Profile


With good service, professional team and reliable quality, SMT provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.

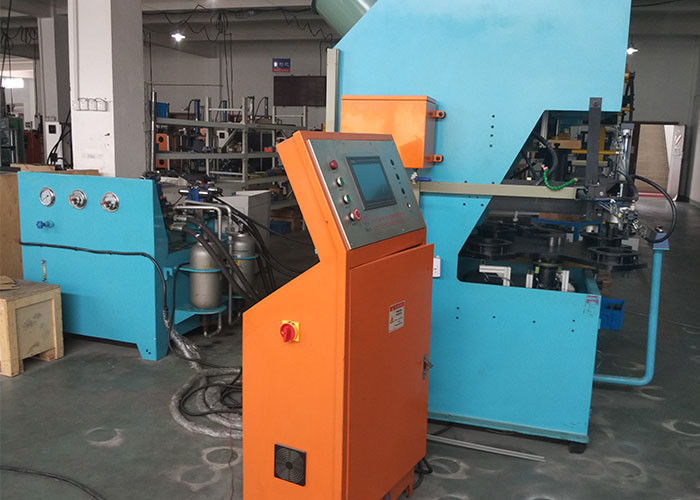

Automatic Die-Casting Rotor for Electric Motor / Electric Motor Machine 0

(6) Our Factory


Suzhou Smart motor Equipment Manufacturing Co.,Ltd is one of the high-tech key enterprises which specialize in designing, producing and selling motor manufacturing equipments in China. The company now has nearly 150 employees, including more than 30 engineers and technicians, with the building area about 20,000 square meters and a hundred sets of advanced production and test equipments. It is now qualified for designing and manufacturing full production line (starts from coil winding to final forming of a stator) for AC motors such as home appliance motor, industrial medium and small motors, pump motor, rolling door motor and automobile motor etc. In 2012, SMT passed the certification of ISO9001:2000 Quality Management System.
Automatic Die-Casting Rotor for Electric Motor / Electric Motor Machine 1
