Detailed Product Description
Name: Conductor Winding Magnetic Field Coil Winding For Motor / Stator SMT- LG300 Color: Green
Stator Diameter: 150-300mm Winding Number: 1-10 Pieces
Machine Dimension (LxWxH): 1300x800x1500mm Machine Weight: About 440kg
High Light:

Rotor Casting Machine


bearing pressing machine

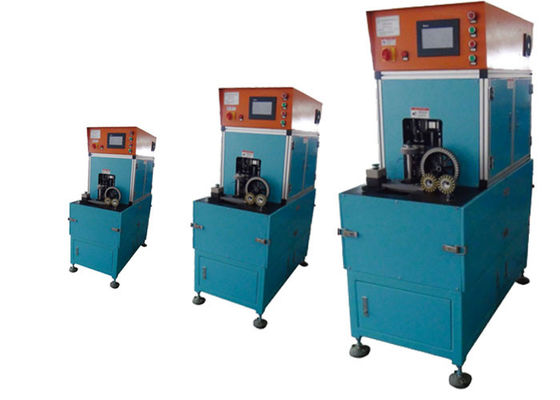

CNC Precision Automatic Winding Machine Auto Coil Winding Machine SMT- LG300

  1. Easy operation.
  2. High efficiency production.
  3. High precision.
  4. Fast mould change.
  5. Easy maintenance
  6. Simple mechanism to ensure trouble-free & long-life operation.
  7. Good quality and competitive price.
  8. Provide various insulation paper forming and cutting solutions according to your production needs.
  9. OEM or ODM are accepted

(1) Main Technical Date


Item Data
Model LG300
Suitable wire diameter 0.2-0.7mm
Stator diameter 150-300mm
Winding number 1-10 pieces
Stator height 15-35mm
Power supply 220V/ 50/60Hz, 1.5kw
Machine weight About 440kg
Machine dimension (LxWxH) 1300x 800 x 1500mm


(2) Application

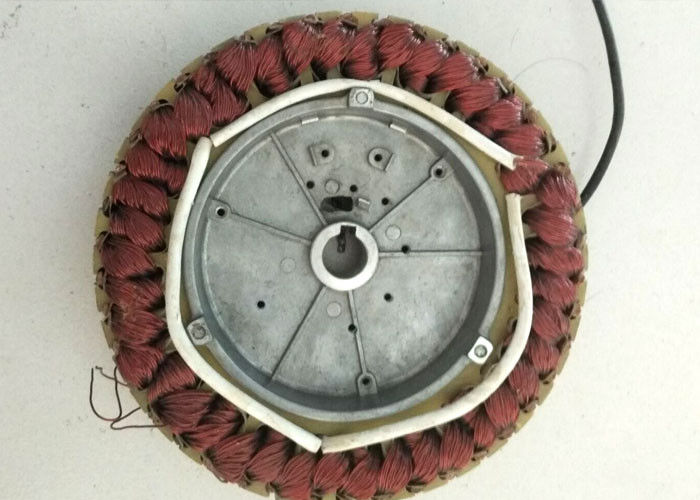

This wheel motor winding machine is designed for the electric bike. It does the winding under the control of servo motor. Its HMI could diagnose the fault, count and save the output etc. Also, wheel motor winding machine could be set up automatic wire feeding, multi-diameter wire winding, automatic indexing,automatic slot-skipping, winding speed etc. It is of easy operation and highly efficiency.

(3) Machine main function and characteristic

Winding tooling: each machine has one set winding tooling and three vertical winding forms.
The whole set of tooling can be changed, and it takes about 15min.
The turntable is two stations structure. It adopts servo system to rotate and index transfer form.
Allow three wires winding simultaneously.
Main spindle is controlled by servo motor. The coil turn number accuracy is ±1 turn.
The working rotation speed can be set . Machine has no distinct vibration and noise.
Free of enamel damage and wire snap. Once the copper wire is run out, machine will automatically stop.
PLC can set turn number, winding speed, tooling sunk height, tooling sunk speed and winding direction.
X andY spindle of wire hooker and wire cutter adopts servo system. It can adjust the length of bridge wire and lead wire.
Tooling sunk adopts servo system. The max segment number of tooling sunk is 6.


(4) OEM/ODM Profile

Taking full advantage of experienced engineers, skillful professionals, perfect equipment, strict manufacturing process control and wide coverage service net-work, we are dedicated to provide our customers with the optimized solution to electric motor manufacturing. So far, except the big market share in China, we export out machines to the worldwide countries such as USA, Italy, Australia, India, Brazil, Mexico, Turkey, Thailand, Vietnam, Iran, etc, and our machines share the great reputation among customers for it durable, reliable performance, reasonable price and good after-service.


(5) Production Line Profile


With good service, professional team and reliable quality, SMT provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.


(6) About Our Factory


Located in Suzhou, a beautiful city of industry, commerce heart in Yangtze River Delta, Smart is specialized in the R&D, manufacturing and sales of induction motor machinery. Our machines produced in Suzhou factory are mainly applied to induction motors such as washing machine motor, air conditioner motor, pump motor, coil motor, three-phase motor, fan motor and compressor motor, etc.
