Paper Polyester Motor Coil Winding Machine  / DC Motor Forming and Cutting Machine

Paper Polyester Motor Coil Winding Machine / DC Motor Forming and Cutting Machine

  • High Light

    motor coil winding machine

    ,

    Rotor Casting Machine

  • Name
    Slot Insulation Paper Polyester Inserting Machine DC Motor Armature Forming And Cutting Machine
  • Feeding Length
    10~200mm
  • Folding Width
    2~5mm, Adjustable
  • Model
    SMT - CD150
  • Machine Weight
    About 160kg
  • Color
    White
  • Place of Origin
    China
  • Brand Name
    SMT
  • Certification
    ISO/SGS Audit
  • Model Number
    SMT-CD150
  • Minimum Order Quantity
    1pcs
  • Price
    Negotiable
  • Packaging Details
    Plywood Box With Reinforcement
  • Delivery Time
    32 - 57 days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1pcs / 31 - 58 days

Paper Polyester Motor Coil Winding Machine / DC Motor Forming and Cutting Machine

Paper Polyester Inserting Machine / DC Motor Forming and Cutting Machine SMT - CD150





(1) Main Technical Information



Item Data
Model CD150
Suitable paper roll width 10~100mm
Suitable paper thickness 0.15~0.35mm
Feeding length 10~200mm
Folding width 2~5mm, adjustable
Cutting speed About 120 pieces per minute
Folding & cutting precision 0.2mm
Power supply 220V, 50/60Hz, 0.5kW
Machine weight About 160kg
Dimension (L x W x H) 500 x 900 x 1200mm



(2) Application

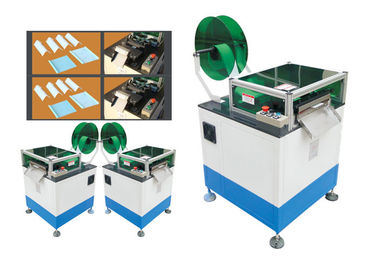

Insulation paper forming and cutting machine feeds insulation paper from the reel, forms it to suit the shape of stator slot with heater and cuts it to a preset length. The only thing operator has to do is to load and unload the insulation paper and press button to start cutting.

Electric engines of generators, electric engines of washing machine, air conditioning, water pump, compressors, electric engines of fan, also applicable to copper wires, aluminum wires and some special wires, Fan motors, washing machine motor, and all kinds of small motor, square, circular, multi-layer coil winding .

1) Length of edge fold, paper feedin length and width is adjustable
2) Apply to cut insulation paper for hand-made and multi sizes motor
3) Heating forming model could be tailor-made .
4) High efficiency and easy operation
5) OEM available, same quality much lower price


(3) Machine Main Characteristic



It is a special design specific to different design or different sizes of slot; can finish insulation paper insertion at a time; automatic adjustment to perimeter, automatic cutting paper, automatic hemming and automatic inserting when inserting to various or different-sized slot; use servo paper inserting machine to feed paper and settle breadth; interpersonal interface sets required specific parameter; forming mould is adjustable to different sizes of slot automatically; characterized by simple operation, low noise, fast speed and high automaticity.
The equipment adopts programmable terminal, also called touched screen, that can set and display necessary information, it is easy to operate and reliable.

Electric engines of generators, electric engines of washing machine, air conditioning, water pump, compressors, electric engines of fan, also applicable to copper wires, aluminum wires and some special wires, Fan motors, washing machine motor, and all kinds of small motor, square, circular, multi-layer coil winding .



(4) OEM/ODM



Innovational technical team provides perfect complete technical solutions, to satisfy every customer’s unique requirement;
Specialized after-sale team and engineers offer superior quality, rapid after-sale service door to door, to solve customer’s all after-sale problems;
Wide spreaded domestic after-sale service service network stations and overseas agencies ensure of powerful after-sale service;
Multi communication methods and full time customer service personnel dispel customer’s after-sale scruples 24 hours.



(5) Production Line Profile



Insulation paper forming and cutting machines are widely used in motor stator, servo motor stator, induction motor stator, stepper motor stator, dc motor stator, tubular motor stator, linear motor stator, permanent magnet motor stator, torque motor stator, brushless motor stator, micro motor stator, E-bike motor stator, auto alternator stator, auto starter stator.
