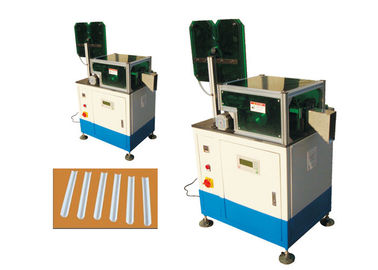

Stator Paper Cutting Machine / Slot Wedge Forming Cutting Machine

Stator Paper Cutting Machine / Slot Wedge Forming Cutting Machine

  • Stator Paper Cutting Machine / Slot Wedge Forming Cutting Machine
  • Stator Paper Cutting Machine / Slot Wedge Forming Cutting Machine
Stator Paper Cutting Machine / Slot Wedge Forming Cutting Machine
Product Details:
Place of Origin: China
Brand Name: SMT
Certification: ISO/SGS Audit
Model Number: SMT-CG200
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Plywood Box With Reinforcement
Delivery Time: 33 - 59 days
Payment Terms: T/T, L/C
Supply Ability: 1pcs / 27 - 57 days
Contact Now
Detailed Product Description
Name: Stator Paper Cutting Machine / Slot Wedge Forming Cutting Machine Feeding Length: 9~200mm
Folding Width: 2~5mm, Adjustable Folding & Cutting Precision: 0.2mm
Machine Weight: About 260kg Dimension (L X W X H): 460 X 910 X 1220mm
High Light:

Rotor Casting Machine

,

bearing pressing machine

SMT-CG200 Stator Paper Cutting Machine / Slot Wedge Forming Cutting Machine

Insulation paper forming and cutting machine feeds insulation paper from the reel, forms it to suit the shape of stator slot with heater and cuts it to a preset length. The only thing operator has to do is to load and unload the insulation paper and press button to start cutting.
Suzhou Smart Motor Equipment Manufacturing CO.,Ltd. is a professional manufacturer and supplier of insulation paper forming and cutting machine from china. After years of market development, our products have been exporting to Europe, America, Asia and other international markets. When you need to improve your production process, please feel free to contact us and find out how our machine perform.

(1) Main Technical Features Of The Machine.

Item Data
Model CG200
Suitable paper roll width 20~140mm
Suitable paper thickness 0.16~0.36mm
Feeding length 9~200mm
Folding width 2~5mm, adjustable
Cutting speed About 130 pieces per minute
Folding & cutting precision 0.2mm
Power supply 220V, 50/60Hz, 0.5kW
Machine weight About 260kg
Dimension (L x W x H) 460 x 910 x 1220mm


(2) Application

Insulation paper forming and cutting machine feeds insulation paper from the reel, forms it to suit the shape of stator slot with heater and cuts it to a preset length. The only thing operator has to do is to load and unload the insulation paper and press button to start cutting.
Suzhou Smart Motor Equipment Manufacturing CO.,Ltd. is a professional manufacturer and supplier of insulation paper forming and cutting machine from china. After years of market development, our products have been exporting to Europe, America, Asia and other international markets. When you need to improve your production process, please feel free to contact us and find out how our machine perform.
1) Length of edge fold, paper feedin length and width is adjustable
2) Apply to cut insulation paper for hand-made and multi sizes motor
3) Heating forming model could be tailor-made .
4) High efficiency and easy operation
5) OEM available, same quality much lower price
(3) Machine Main Characteristic

It is a special design specific to different design or different sizes of slot; can finish insulation paper insertion at a time; automatic adjustment to perimeter, automatic cutting paper, automatic hemming and automatic inserting when inserting to various or different-sized slot; use servo paper inserting machine to feed paper and settle breadth; interpersonal interface sets required specific parameter; forming mould is adjustable to different sizes of slot automatically; characterized by simple operation, low noise, fast speed and high automaticity.
The equipment adopts programmable terminal, also called touched screen, that can set and display necessary information, it is easy to operate and reliable.
Electric engines of generators, electric engines of washing machine, air conditioning, water pump, compressors, electric engines of fan, also applicable to copper wires, aluminum wires and some special wires, Fan motors, washing machine motor, and all kinds of small motor, square, circular, multi-layer coil winding .

(4) OEM/ODM

Innovational technical team provides perfect complete technical solutions, to satisfy every customer’s unique requirement;
Specialized after-sale team and engineers offer superior quality, rapid after-sale service door to door, to solve customer’s all after-sale problems;
Wide spreaded domestic after-sale service service network stations and overseas agencies ensure of powerful after-sale service;
Multi communication methods and full time customer service personnel dispel customer’s after-sale scruples 24 hours.

(5) Production Line Profile

With good service, professional team and reliable quality, SMT provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.
Stator Paper Cutting Machine / Slot Wedge Forming Cutting Machine 0
(6) About Us

Suzhou Smart motor Equipment Manufacturing Co.,Ltd is one of the high-tech key enterprises which specialize in designing, producing and selling motor manufacturing equipments in China. The company now has nearly 150 employees, including more than 30 engineers and technicians, with the building area about 20,000 square meters and a hundred sets of advanced production and test equipments. It is now qualified for designing and manufacturing full production line (starts from coil winding to final forming of a stator) for AC motors such as home appliance motor, industrial medium and small motors, pump motor, rolling door motor and automobile motor etc. In 2012, SMT passed the certification of ISO9001:2000 Quality Management System.
