Aluminium Wedge Cutting Machine Electric Motor Machine With Cooling System

Aluminium Wedge Cutting Machine Electric Motor Machine With Cooling System

  • Aluminium Wedge Cutting Machine Electric Motor Machine With Cooling System
  • Aluminium Wedge Cutting Machine Electric Motor Machine With Cooling System
Aluminium Wedge Cutting Machine Electric Motor Machine With Cooling System
Product Details:
Place of Origin: China
Brand Name: SMT
Certification: ISO / SGS Audit
Model Number: SMT-ZL4080
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Automatic Motor Rotor Die Casting Machine is packed by wood case. Or, we can do it as your order.
Delivery Time: 39 - 71 days
Payment Terms: T/T, L/C
Supply Ability: 1pcs / 39 - 71 days
Contact Now
Detailed Product Description
Name: Aluminium Rotor Casting Machine For Cast-Aluminum Rotor With Cooling System Working Station: 4 Pcs
Rotor O.D: 40~80mm Core Length: ≤ø80mm
Max. Operation Pressure: 22.6MPa Power Supply: 380V/50/60 9Kw
Max Die-casting Volume: 0.6Kg Pitch Time: Less Than 8s
Fuel Tank Capacity: 425L
High Light:

motor coil winding machine

,

Rotor Casting Machine

Aluminium Rotor Casting Machine For Cast-Aluminum Rotor With Cooling System





It is 4 working station rotay plate. Mechanical arm takes and puts self-rivet rotor core in the loading station, and then operator injects liquid aluminum in the casting station, which has somke-sucking system, auto releasing agent spraying system and cooling system, aluminum scraps come back to the aluminum melt oven. It owns the merit of saving labor cost, high efficiency and low tooling cost etc.



(1) Main Technical Features Of Our Product



Rotor O.D 40~80mm
Rotor stack length 16~100mm
Pitch time less than 8s
Upper presser operation pressure 40T
Bottom presser operation pressure 12T
Max die-casting volume 0.6Kg
Fuel tank capacity 425L
Injection piston running speed slow injection-190mm/s, fast injection-600mm/s
Motor power of 40L Variable piston hydraulic pump 7.5kw
Max. operation pressure 22.6MPa
Machine Dimension 1800(L)X1800(W) X 2350(H)mm
Total Power about 8.5Kw



(2) Application



1. It is in 4 working station in rotary plate. .
2. Mechanical arms takes and puts self- rivet rotor core in the loading station,and then operator injects liquid aluminum in the casting station , which has smoke-sucking sysytem ,auto releasing agent spraying system and cooling system ,aluminum scraps come back to the aluminum melt oven.
3. It owns the merit of saving labor cost , high effiency and low tooling cost etc.


(3) Machine Main Characteristic


The equipment adopts programmable terminal, also called touched screen, that can set and display necessary information, it is easy to operate and reliable.

Electric engines of generators, electric engines of washing machine, air conditioning, water pump, compressors, electric engines of fan, also applicable to copper wires, aluminum wires and some special wires, Fan motors, washing machine motor, and all kinds of small motor, square, circular, multi-layer coil winding .



(4) OEM/ODM



Innovational technical team provides perfect complete technical solutions, to satisfy every customer’s unique requirement;
Specialized after-sale team and engineers offer superior quality, rapid after-sale service door to door, to solve customer’s all after-sale problems;
Wide spreaded domestic after-sale service service network stations and overseas agencies ensure of powerful after-sale service;
Multi communication methods and full time customer service personnel dispel customer’s after-sale scruples 24 hours.



(5)Production Line Profile



With good service, professional team and reliable quality, Nide provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.

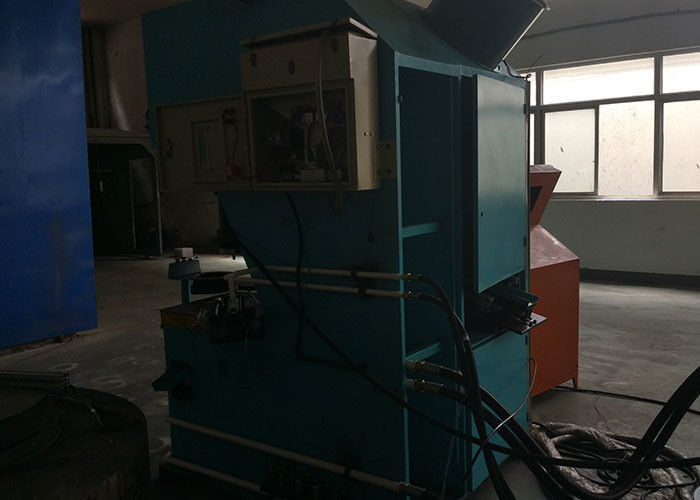

Aluminium Wedge Cutting Machine Electric Motor Machine With Cooling System 0

(6) About Us



Suzhou Smart motor Equipment Manufacturing Co.,Ltd is one of the high-tech key enterprises which specialize in designing, producing and selling motor manufacturing equipments in China. The company now has nearly 150 employees, including more than 30 engineers and technicians, with the building area about 20,000 square meters and a hundred sets of advanced production and test equipments. It is now qualified for designing and manufacturing full production line (starts from coil winding to final forming of a stator) for AC motors such as home appliance motor, industrial medium and small motors, pump motor, rolling door motor and automobile motor etc. In 2012, SMT passed the certification of ISO9001:2000 Quality Management System.

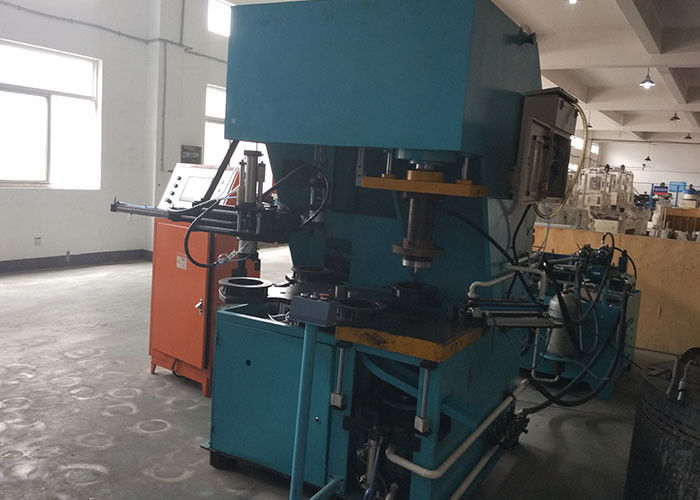

Aluminium Wedge Cutting Machine Electric Motor Machine With Cooling System 1
