Fully Automatic Rotor Casting Machine For Washing Motor And Pump Motor SMT- ZL4080

Fully Automatic Rotor Casting Machine For Washing Motor And Pump Motor SMT- ZL4080

  • High Light

    Rotor Casting Machine

    ,

    bearing pressing machine

  • Name
    Fully Automatic Rotor Casting Machine For Washing Motor, Spin Motor And Pump Motor
  • Working Station
    4 Pcs
  • Max Die-casting Volume
    0.6Kg
  • Pitch Time
    Less Than 8s
  • Max. Operation Pressure
    22.6MPa
  • Rotor Stack Length
    16~100mm
  • Sizw
    1820(L)X1810(W) X 2330(H)mm
  • Color
    Blue
  • Place of Origin
    China
  • Brand Name
    SMT
  • Certification
    ISO / SGS Audit
  • Model Number
    SMT-ZL4080
  • Minimum Order Quantity
    1pcs
  • Price
    Negotiable
  • Packaging Details
    Automatic Motor Rotor Die Casting Machine is packed by wood case. Or, we can do it as your order.
  • Delivery Time
    43 - 79 days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1pcs / 43 - 79 days

Fully Automatic Rotor Casting Machine For Washing Motor And Pump Motor SMT- ZL4080

Fully Automatic Rotor Casting Machine For Washing Motor, Spin Motor And Pump Motor SMT- ZL4080



Rotor casting machine is suitable for casting the aluminum rotor of small size which used in pump motor, washing machine motor, compressor motor, air conditione motor, fan motor etc;

4 working stations; it does working table rotation, casting, scratch removing, rotor cooling, unloading automatically.



(1) Main Technical Features Of Our Product



Rotor O.D 40~80mm
Rotor stack length 16~100mm
Pitch time less than 8s
Upper presser operation pressure 40T
Bottom presser operation pressure 12T
Max die-casting volume 0.6Kg
Fuel tank capacity 425L
Injection piston running speed slow injection-190mm/s, fast injection-600mm/s
Motor power of 40L Variable piston hydraulic pump 7.5kw
Max. operation pressure 22.6MPa
Machine Dimension 1820(L)X1810(W) X 2330(H)mm
Total Power about 8.5Kw



(2) Application



1. It is in 4 working station in rotary plate. .
2. Mechanical arms takes and puts self- rivet rotor core in the loading station,and then operator injects liquid aluminum in the casting station , which has smoke-sucking sysytem ,auto releasing agent spraying system and cooling system ,aluminum scraps come back to the aluminum melt oven.
3. It owns the merit of saving labor cost , high effiency and low tooling cost etc.


(3) Machine Main Characteristic


The equipment adopts programmable terminal, also called touched screen, that can set and display necessary information, it is easy to operate and reliable.

Electric engines of generators, electric engines of washing machine, air conditioning, water pump, compressors, electric engines of fan, also applicable to copper wires, aluminum wires and some special wires, Fan motors, washing machine motor, and all kinds of small motor, square, circular, multi-layer coil winding .



(4) OEM/ODM



Innovational technical team provides perfect complete technical solutions, to satisfy every customer’s unique requirement;
Specialized after-sale team and engineers offer superior quality, rapid after-sale service door to door, to solve customer’s all after-sale problems;
Wide spreaded domestic after-sale service service network stations and overseas agencies ensure of powerful after-sale service;
Multi communication methods and full time customer service personnel dispel customer’s after-sale scruples 24 hours.



(5)Production Line Profile



With good service, professional team and reliable quality, Nide provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.

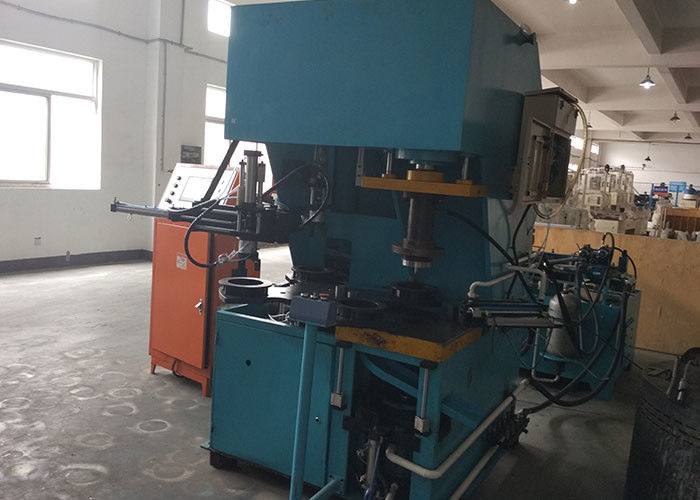

Fully Automatic Rotor Casting Machine For Washing Motor And Pump Motor SMT- ZL4080 0

(6) About Us



Suzhou Smart motor Equipment Manufacturing Co.,Ltd is one of the high-tech key enterprises which specialize in designing, producing and selling motor manufacturing equipments in China. The company now has nearly 150 employees, including more than 30 engineers and technicians, with the building area about 20,000 square meters and a hundred sets of advanced production and test equipments. It is now qualified for designing and manufacturing full production line (starts from coil winding to final forming of a stator) for AC motors such as home appliance motor, industrial medium and small motors, pump motor, rolling door motor and automobile motor etc. In 2012, SMT passed the certification of ISO9001:2000 Quality Management System.

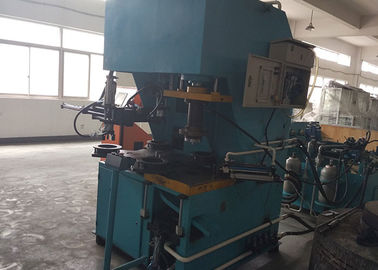

Fully Automatic Rotor Casting Machine For Washing Motor And Pump Motor SMT- ZL4080 1
