Induction Motor Winding Machine  100 - 260 mm Stack Height

Induction Motor Winding Machine 100 - 260 mm Stack Height

  • High Light

    Coil Wire Binding Machine

    ,

    induction motor winding machine

  • Name
    Single-Side Inuction Motor Stator Winding Lacing Machine
  • Model
    SMT-DW300
  • Stator I.D.
    110-210mm
  • Stator O.D.
    ≤Φ301mm
  • Stack Height
    100 - 260mm
  • Power Supply
    380v/50/60Hz 0.75kw
  • Warranty
    12 Months
  • Overseas After-Service
    Engineers Are Available To Overseas
  • Condition
    New
  • Place of Origin
    China
  • Brand Name
    SMT
  • Certification
    ISO / SGS Audit
  • Model Number
    SMT-DW300
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Plywood Box or follow your requirement.
  • Delivery Time
    27 - 79 days
  • Payment Terms
    T/T , L/C
  • Supply Ability
    1pcs / 34 - 76 days

Induction Motor Winding Machine 100 - 260 mm Stack Height

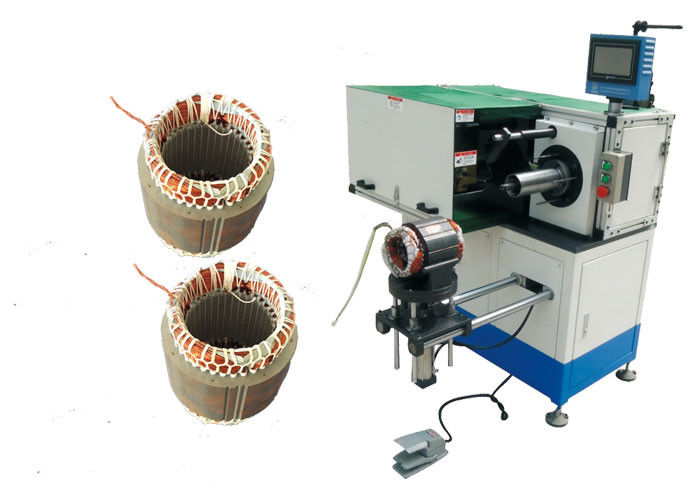

Induction Motor Winding Machine SMT-DW300 100 - 260 mm Stack Height





The horizontal single side stator winding lacing machine adopts industrial PLC, human-computer interface and horizontal frame-structure design, the servo system machine accurately controls the lacing action. Different lacing methods such as slot-by-slot lacing, interval lacing and fancy lacing are programmable. This horizontal single side stator winding lacing machine is suitable for the big stator with high winding over-hang. The tooling is movable, and convenient for stator fast laoding and unloading, hence to reduce the labor strength effectively.



(1) Main Technical Information



Model DW300
Stack height 100 - 260mm
Stator I.D 110-210mm
Stator O.D ≤ 301mm
Height of Overhang ≤50mm
Laccing mode Slot by slot / interval slot/Fancy lacing
Lacing speed 8-48 slot
Power supply 380v/50/60Hz 0.75kw
Machine weight About 450kg
Machine dimension (LxWxH) 1160x 1200x1500mm



(2) Advantage



This machine adopts servo driven system, CNC control design and HIM program.

The indexing is driven by servo system. Different lacing mode could be set such as slot lacing, interval lacing, and fancy lacing.

Main spindle adopts servo control system. The rotation speed can be set.

Two needles driven by servo system lace upper and lower coil simultaneously.

Machine can automatically feed thread and cut thread. There is no need to tie a knot.

Tooling change is fast and convenient. Stator stack length range is 50-130mm.

Lacing tension can be set,

Production capacity ≤1s/slot.

Should be no copper wire snap and wire enamel broken.

Primary qualification rate ≥98.5%, after rework, the rate ≥99.5%

his machine adopts safety grating protection system. Operator need to stand when operating.

Machine adopts two hands simultaneously start button to ensure safety.


(3) Machine Main Characteristic



1. Adapting industrial PLC, human-computer interface and horizontal frame-structure design, the servo system machine accurately controls the lacing action.

2. Different lacing methods such as slot-by-slot lacing, interval lacing and fancy lacing are programmable.

3. This machine is suitable for the big stator with high winding over-hang.

4. The tooling is movable and convenient for stator fast loading and unloading, hence to reduce the labor strength effectively.



(4) OEM/ODM



The company mainly produces motor machinery and equipment. Our products mainly include automatic winding machine, lacing machine, inserting machine, shaping machine, forming machine etc. We adopt overseas advanced technology and processes and corporate willpower to improve electromechanical fully automated factory production capacity, with the most stable quality and customer service to get the biggest trust.

We are in a safe, professional and efficient service concept of "wisdom and humanity towards the direction of development, technology and the world simultaneously with the progress", to meet different needs of customers to create a brilliant career.



(5) Production Line Profile



With good service, professional team and reliable quality, SMT provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.

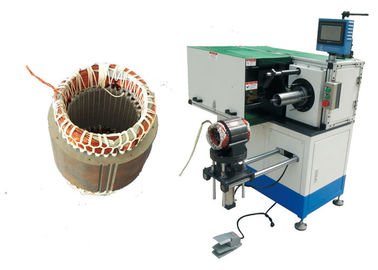

Induction Motor Winding Machine  100 - 260 mm Stack Height 0

(6) About Suzhou Smart motor Equipment Manufacturing Co.,Ltd



Suzhou Smart motor Equipment Manufacturing Co.,Ltd is one of the high-tech key enterprises which specialize in designing, producing and selling motor manufacturing equipments in China. The company now has nearly 150 employees, including more than 30 engineers and technicians, with the building area about 20,000 square meters and a hundred sets of advanced production and test equipments.
