Horizontal Single Side Motor Stator Lacing Machine SMT - DW350 High Performance

Horizontal Single Side Motor Stator Lacing Machine SMT - DW350 High Performance

  • Horizontal Single Side Motor Stator Lacing Machine SMT - DW350 High Performance
Horizontal Single Side Motor Stator Lacing Machine SMT - DW350 High Performance
Product Details:
Place of Origin: China
Brand Name: SMT
Certification: ISO / SGS Audit
Model Number: SMT-DW350
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box or follow your requirement.
Delivery Time: 51 - 83 days
Payment Terms: T/T , L/C
Supply Ability: 1pcs / 46 - 79 days
Contact Now
Detailed Product Description

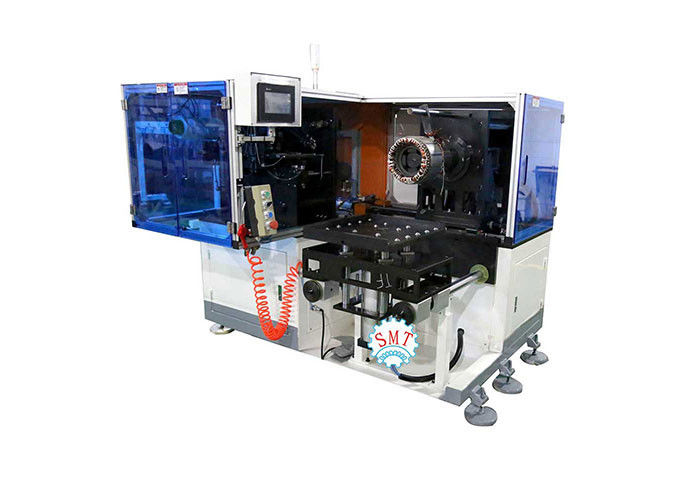

Name: Horizontal Single Side Motor Stator Lacing Machine Model: SMT-DW350
Stack Height: 100 - 260mm Power Supply: 380v/50/60Hz 0.75kw
Automatic Grade: Semiautomatic Lacing Power: Servo Motor
Slot Number: 8-48 Hs Code: 8479899990
High Light:

Coil Wire Binding Machine

,

induction motor winding machine



Fan / Washing Machine Stator Winding Machine SMT - DW350 60Hz 0.75kw





This machine is used to inserting coil and wedge into stator. And it can insert coil and wedge simultaneously. This HMI can set all the necessary data. With easy and convenient tooling change process, this machine is suitable for three phase motor, fan motor and other motor, with a veriety model number but low output.

Wedge fedding mode can be set according to different motor.Horizontal Winding Inserting Machine is equipped with human-machine control interface, It has the characteristic of widely application, high automation, easy operation and convenient tooling change.



(1) Main Technical Description



Model DW350
Stator I.D. 120-250mm
Stator O.D. 210-350mm
Core length 120-300mm
Overhang coils height 20-85mm
Slot Number 24-60
Lacing Speed about 0.7s/s
Power Supply 380V/50/60Hz 7Kw
Dimension (L)1550*(W)1350*(H)1500mm
MOQ 1 set Single Side Lacing Machine



(2) Advantage



This machine adopts servo driven system, CNC control design and HIM program.

The indexing is driven by servo system. Different lacing mode could be set such as slot lacing, interval lacing, and fancy lacing.

Main spindle adopts servo control system. The rotation speed can be set.

Two needles driven by servo system lace upper and lower coil simultaneously.

Machine can automatically feed thread and cut thread. There is no need to tie a knot.

Tooling change is fast and convenient. Stator stack length range is 50-130mm.

Lacing tension can be set,

Production capacity ≤1s/slot.

Should be no copper wire snap and wire enamel broken.

Primary qualification rate ≥98.5%, after rework, the rate ≥99.5%

his machine adopts safety grating protection system. Operator need to stand when operating.

Machine adopts two hands simultaneously start button to ensure safety.


(3) Machine Main Characteristic



1. Adapting industrial PLC, human-computer interface and horizontal frame-structure design, the servo system machine accurately controls the lacing action.

2. Different lacing methods such as slot-by-slot lacing, interval lacing and fancy lacing are programmable.

3. This machine is suitable for the big stator with high winding over-hang.

4. The tooling is movable and convenient for stator fast loading and unloading, hence to reduce the labor strength effectively.



(4) OEM/ODM



The company mainly produces motor machinery and equipment. Our products mainly include automatic winding machine, lacing machine, inserting machine, shaping machine, forming machine etc. We adopt overseas advanced technology and processes and corporate willpower to improve electromechanical fully automated factory production capacity, with the most stable quality and customer service to get the biggest trust.



(5) Production Line Profile



With good service, professional team and reliable quality, SMT provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.



(6) About Suzhou Smart motor Equipment Manufacturing Co.,Ltd



Suzhou Smart motor Equipment Manufacturing Co.,Ltd is one of the high-tech key enterprises which specialize in designing, producing and selling motor manufacturing equipments in China. The company now has nearly 150 employees, including more than 30 engineers and technicians, with the building area about 20,000 square meters and a hundred sets of advanced production and test equipments.
