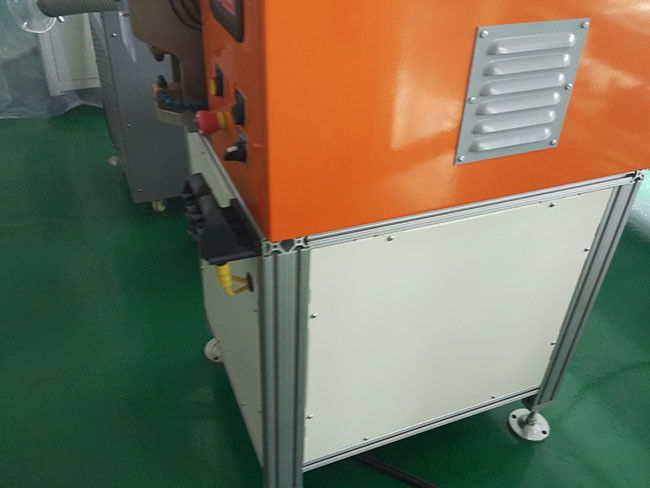

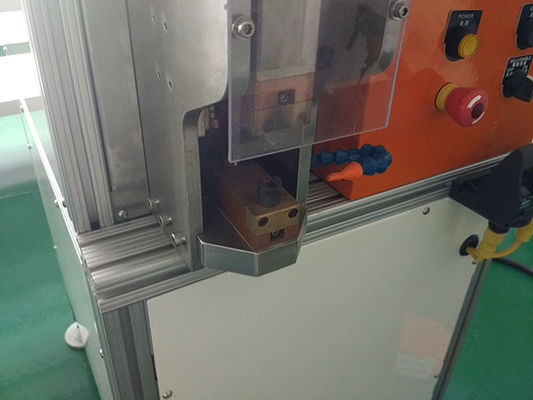

    Automatic Commutator Fusing Machine For DC Motor And Universal Motor
  • Model Number
    K3220
  • Power Supply
    400VAC, 50 Hz – 60 Amp
  • Min.Temperature
    15°C
  • Weight
    960Kg
  • Color
    Orange
  • Place of Origin
    China
  • Brand Name
    SMT
  • Certification
    ISO / SGS Audit
  • Model Number
    SMT- K3220
  • Minimum Order Quantity
    1pcs
  • Price
    Negotiable
  • Packaging Details
    Packed with vacuum film in plywood case. Or, we can do it as your order.
  • Delivery Time
    47 - 67 days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1pcs / 47 - 67 days

ISO9001 Automatic Fusing Machine For DC motor And Universal Motor

ISO9001 Automatic Fusing Machine For DC motor And Universal Motor





This machine can automatically fuse, and operator only need to load and unload rotor. It can weld both riser and hook type commutators. This machine is applied to DC motor and universal motor. It is controlled by PCL, all the data setting can be done on the touch sreeen. There are four power control method, namely secondary constant current, secondary constant voltage secondary constant frequency.



(1) Product General Information



Brand Name: SMT
Model Number: K3220
Certification: SGS/ISO9001
Place of Origin: China



Product Name Stator Lead Wire Tube Fusing Machine Application Electric motor stator production
Status New Paint On request
Warranty time One year after machine(s) arrive in customer’s plant Service Overseas service center available





(2) Description



1.Machine, electrical cabinet and disconnect mounted to aluminum extrusion table.
2.Heavy duty construction utilizing SMT K-Head design.
3.SMT machine enamel paint unless otherwise quoted.
4.20 kva water cooled transformer.
5.400VAC, 50 Hz – 60 Amp input required.
7.Control of squeeze time (prior to fuse), upslope time, fuse time, fuse current, cool time, repeats, hold time and force of head during fuse.
8.Capability to store and recall up to fifty (50) different fuse schedules.


(3) Patented Tube Fusing Technology



In tube fusing, traditional connectors are made redundant by a simple and inexpensive tube which captures the wires to be connected. Resistively heated fusing electrodes apply the necessary pressure and heat to the tube/wire bundle to make a reliable connection. These machines are versatile for most any application including fusing magnet wires, Litz.wire and/or insulated leads within a tube terminal.



(4) Eliminate Stripping and Brazing



This patented technology eliminates the need for an operator to strip the magnet wire from the leads prior to fusing the lead bundle. Capable of fusing up to 150*18AWG(1.0mm) wires in parallel, the heat of the fusing operation burns off the wire enamel while the tin from the tube cleans the area to be connected. The force of the head combined with the controlled heating of the electrode creates a reliable connection while minimizing manual operations.



(5) Thermal Crimp Fusing Technology



With the patented thermal crimp technology, the connector is automatically made from a strip of tinned copper material. This connector is then presented to the operator for placement of the magnet wire and/or lead wire. Once fused, excess wire is trimmed from the connector resulting in the smallest possible package with the highest quality connection.
