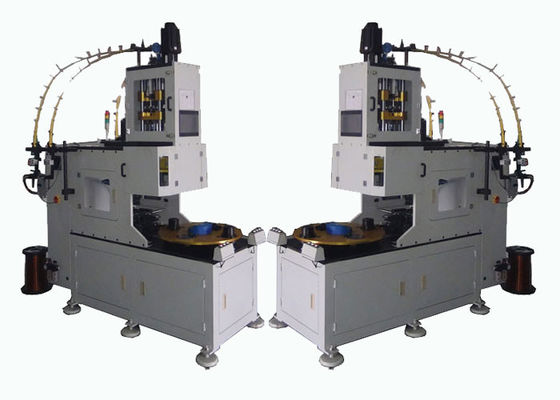

SMT - LR100 Stator Winding Machine 200mm Flier ≤3000r/min Wire Speed

SMT - LR100 Stator Winding Machine 200mm Flier ≤3000r/min Wire Speed

  • SMT - LR100 Stator Winding Machine 200mm Flier ≤3000r/min Wire Speed
  • SMT - LR100 Stator Winding Machine 200mm Flier ≤3000r/min Wire Speed
SMT - LR100 Stator Winding Machine 200mm Flier ≤3000r/min Wire Speed
Product Details:
Place of Origin: China
Brand Name: SMT
Certification: ISO9001/SGS/CE
Model Number: SMT-LR100
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Case Suitable for Sea Transportation.
Delivery Time: 37 - 45 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2pcs/ 37 - 71 days
Contact Now
Detailed Product Description
Name: Stator Coil Winding Machine For Three-Phase Motor Wire Speed: ≤3000r/min
Flier: 200mm Transfer Number: 2-6pcs
Power Supply: 380v/50/60Hz 7Kw Weight: 1100kg
Dimension: (L)1800X(W)1100X2200mm Winding Head: 1pcs
High Light:

electric motor coil winding machine


ceiling fan winding machine


Stator Winding Machine 200mm Flier

SMT - LR100 Stator Winding Machine 200mm Flier ≤3000r/min Wire Speed



1. Six Spindles are controlled by servo motors
2. Double winding heads and four stations wind two phase coils at a time ,which can wind single and multiple wires .

3.Vertical winding machine series wind coils directly and orderly into transfer cups .
4.Main spindle, high speed mold dipping ,hooking and cutting wire, turntable and transfer cup index are all controlled by servo motors ,.
5. It is especially suitable for the coil inserting of stator with high slot fill factor and slot openning .
6. It saves labor and has high efficiency .


(1) Main Technical Data


Winding speed ≤3000r/min
Suitable wire diameter 0.2-1.2mm
Coil perimeter 650mm
Suitable motor poles 2,4,6,8
Suitable motor poles 2,4,6,8
Suitadle down-lead length(Max) 200mm
Winding direction Self-selecting
Counting range 0-9999/Circle
Fly fork diameter 300mm
Operating voltage Three phase 3PH 380V 50Hz
Power 7kw
Air pressure 0.6-1MPa
Weight about 1100Kg
Dimension (L×W×H) (L)1800X(W)1100X(H)2200mm


(2) Application

This machine is suitable for 2 poles, 4 poles and 6poles coils winding.

(3) Machine main function and characteristic

Winding tooling: each machine has one set winding tooling and three vertical winding forms.
The whole set of tooling can be changed, and it takes about 15min.
The turntable is two stations structure. It adopts servo system to rotate and index transfer form.
Allow three wires winding simultaneously.
Main spindle is controlled by servo motor. The coil turn number accuracy is ±1 turn.
The working rotation speed can be set . Machine has no distinct vibration and noise.
Free of enamel damage and wire snap. Once the copper wire is run out, machine will automatically stop.
PLC can set turn number, winding speed, tooling sunk height, tooling sunk speed and winding direction.
X andY spindle of wire hooker and wire cutter adopts servo system. It can adjust the length of bridge wire and lead wire.
Tooling sunk adopts servo system. The max segment number of tooling sunk is 6.


(4) OEM/ODM Profile

Taking full advantage of experienced engineers, skillful professionals, perfect equipment, strict manufacturing process control and wide coverage service net-work, we are dedicated to provide our customers with the optimized solution to electric motor manufacturing. So far, except the big market share in China, we export out machines to the worldwide countries such as USA, Italy, Australia, India, Brazil, Mexico, Turkey, Thailand, Vietnam, Iran, etc, and our machines share the great reputation among customers for it durable, reliable performance, reasonable price and good after-service.


(5) Production Line Profile


With good service, professional team and reliable quality, Nide provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.


(6) About Our Factory

Located in Suzhou, a beautiful city of industry, commerce heart in Yangtze River Delta, Smart is specialized in the R&D, manufacturing and sales of induction motor machinery. Our machines produced in Suzhou factory are mainly applied to induction motors such as washing machine motor, air conditioner motor, pump motor, coil motor, three-phase motor, fan motor and compressor motor, etc.
