Auto Stator Coil Winding Machine For Electric Motors

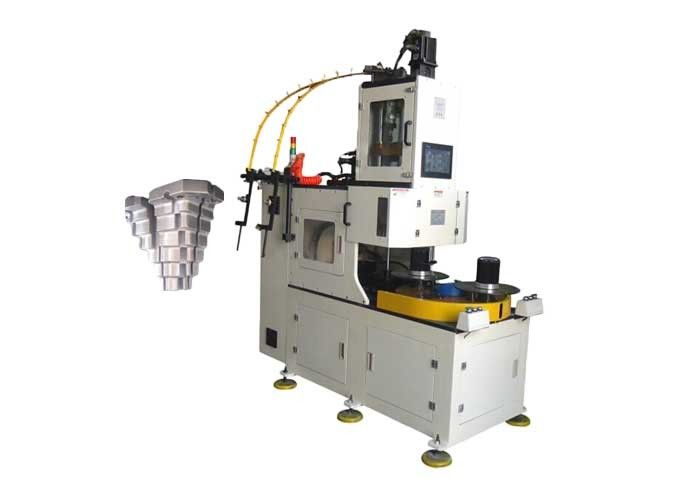

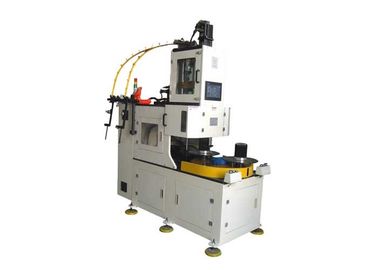

Auto Stator Coil Winding Machine for Electric Motors with Much Broader Scope SMT-LR150-II



Equipped with one winding head and two stations with turntable structure. It can wind coils directly and orderly into transfer cup, which is controlled by six servo motors. If producing stator coils by this kind of machine, it will be eaiser to insert coils of stators with high slot fill factor & small slot opening width. To some degree, it can save labor effecitvely.


(1) Technical Parameters


Model SMT-LR150-II
Winding head 1 pc
Wire diameter D0.3-D1.2mm
Winding speed ≤2500r/min
Stack height ≤150mm
Winding precision ±0 turn
Power supply 380V/50/60Hz 8Kw
Air pressre ≥0.6MPa
Weight ≈1800Kg
Dimension (L)1800×(W)1300×(H)2300mm














(2) Brief Instruction of Machine


Machine "Auto Stator Coil Winding Machine for Electric Motors with Much Broader Scope" is used for winding Cu/AL wires to coils automatically then putting coils into transfer cup orderly & automatically.

It adopts six servo motors to control the motion, like hooking & cutting wire, high-speed mold dipping and transfer cup indexing, etc. It can achieve higher qualification rate.

Operators need to stand when operating.


(3) Main Specifications


1. Equipped with single head and double stations to wind coils;

2. Winding one phase coils at one time, which is suitable for winding single or multiple wires;

3. Put coils into transfer cup automatically and orderly;

4. The main spindle, high-speed mold dipping, hooking and cutting wire, turntable rotation and transfer cup index are all under servo motors control;

5. Especially suitable for stators with high slot fill factor and small slot opening;

6. Winding mode such as automatic skip, automatic cutting and automatic indexing can be set in human-machine interface, winding tension is adjustable;

7. Obtain continuous or discontinuous winding way and meets the 2 poles, 4 poles and 6 poles coils winding;

8. It saves labor and has high efficiency.


(4) Services


We've been dedicated to developing and producing machines for induction motors production for many years, such as Winding machine, Coil Inserting Machine, etc.

Design and manufacturing of products are as customer's request. For example, appearance, brand of some parts and color,etc., all can be customized with customer's special request. Besides, we can help to draw the layout of machines in customer site when necessary.

Our engineers will provide customer with technical support. During one year warranty period, some technical support and parts need to be replaced will be for free, except under some special conditions. Overseas after-service is available too. If customer needs our help, our after-sales engineers will be at customer's site within the shortest time.

We are in a safe, professional and efficient service concept of "wisdom and humanity towards the direction of development, technology and the world simultaneously with the progress", to meet different needs of customers to create a brilliant career.


(5) Production Line Service


With good service, professional team support and reliable quality, SMT will provide customer with different kinds of equipments for various motors production. It can be one set machine or the whole prodcution line from winding process to final forming process. So if customer wants the whole production line, we can provide manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training, even complete turn-key project.
