|Name:||Double Stations & Winding Heads Copper Wire Rolling / Stator Winding Machine||Model:||SMT-SR350|
|Winding Head:||Double||Wire Dia. Min:||Φ0.3mm|
electric motor coil winding machine,
ceiling fan winding machine,
Double Stations Stator Winding Machine

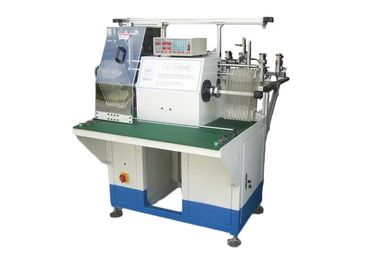

Double Stations & Winding Heads Copper Wire Rolling / Stator Winding Machine SMT-SR350
Equipped with two winding stations and two winding heads, which can wind 2 group coils at one time automatically. Operator need to unload coils manually. Two stations are working separately so that operator can work continuously, one is winding and the other one can be unloaded.
(1) Technical Parameters
|Winding form diameter||≤Φ380mm|
|Unload winding speed||≤1500r/min|
|Power supply||220V/50/60Hz 1.5Kw|
(2) Brief Instruction of Machine
Machine "Double Stations & Winding Heads Copper Wire Rolling / Stator Winding Machine" is used for winding electric wires to the winding tools automatically and orderly. It's special for double separate work stations.
Operators need to unload the coils by manual while it's easy to repair with low cost if happens with faults.
(3) Main Specifications
1. It is newly developed for high-power motor of general-purpose use.
2. Two stations can work individually, while one is at operation, the other can be unloaded, which is characterized by less intermittent time, higher utilization ratio and output.
3. Automatic coil span program & turns count.
4. Automatic cut and reset & manual clamp.
5. Automatic cut, re-clamp and start can be set by optional controller.
6. Tooling loaded/unloaded manually.
7. Can be equipped with an optional through-sleeve device.
8. It has various kinds of operate mode, such as multilayer tapped winding, slot-hopping winding, multi-wire winding, automatic insulated sleeve assembly, etc. are available.
9. It is mainly applied to coil winding for three phase motor, generator motor and deep pump motor.
We're dedicated to developing and producing machinery / equipment for electric motors production, such as Winding machine, Coil Inserting Machine, etc.
Design & manufacturing are according to standard idea and customer's request. For example, mahcine out-look, color, components brand and so on, all can be specilized if customer has special request. Besides, we can help to design the layout of machines of customer site when necessary.
Our engineers will provide customer with technical support. Within one year warranty period, some technical support and some parts need to replace will be for free. Overseas after-service is also available. If customer meet problems and need our technicans be their site, our after-sales engineers will be at customer's site sonnest.
