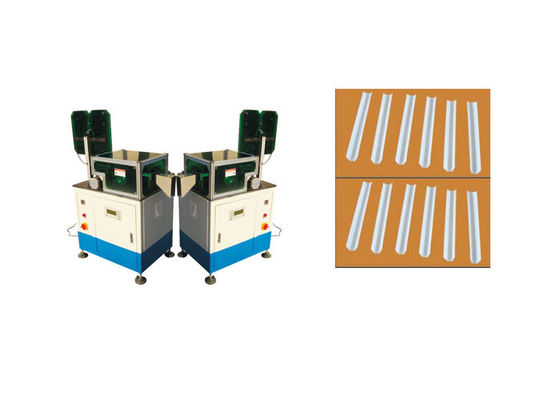

Automatic Slot Paper Forming and Cutting Machine For Motor Stator

Automatic Slot Paper Forming and Cutting Machine For Motor Stator

  • High Light

    motor coil winding machine

    ,

    Rotor Casting Machine

  • Name
    Automatic Slot Paper Forming And Cutting Machine For Motor Stator
  • Feeding Length
    9~200mm
  • Folding Width
    2~5mm, Adjustable
  • Folding & Cutting Precision
    0.2mm
  • Machine Weight
    About 220kg
  • Dimension (L X W X H)
    451 X 920 X 1210mm
  • Modle
    SMT-CG200
  • Suitable Paper Roll Width
    20~140mm
  • Place of Origin
    China
  • Brand Name
    SMT
  • Certification
    ISO/SGS Audit
  • Model Number
    SMT-CG200
  • Minimum Order Quantity
    1pcs
  • Price
    Negotiable
  • Packaging Details
    Plywood Box With Reinforcement.
  • Delivery Time
    45 - 71 days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1pcs / 39 - 72 days

Automatic Slot Paper Forming and Cutting Machine For Motor Stator

Induction Motor Stator Double Heads Wedge Forming and Cutting Machine SMT-CG200





1. It is suitable exclusively for large and medium-size motors.
2. This machine is characterized by low noise, fast speed, excellent forming,
3. it is convenient and easy for different slot number stator production and changing tooling.
4. It is suitable for generator, deep pump motor, three phase machine, etc.



(1) Main Technical Features Of Our Machine



Item Data
Model CG200
Suitable paper roll width 20~140mm
Suitable paper thickness 0.16~0.36mm
Feeding length 9~200mm
Folding width 2~5mm, adjustable
Cutting speed About 130 pieces per minute
Folding & cutting precision 0.2mm
Power supply 220V, 50/60Hz, 0.5kW
Machine weight About 220kg
Dimension (L x W x H) 451 x 920 x 1210mm



(2) Application



Insulation paper forming and cutting machine feeds insulation paper from the reel, forms it to suit the shape of stator slot with heater and cuts it to a preset length. The only thing operator has to do is to load and unload the insulation paper and press button to start cutting.

Ningbo Hisky motor technology co.,ltd is a professional manufacturer and supplier of insulation paper forming and cutting machine from china. After years of market development, our products have been exporting to Europe, America, Asia and other international markets. When you need to improve your production process, please feel free to contact us and find out how our machine perform.


(3) Machine Main Characteristic


The equipment adopts programmable terminal, also called touched screen, that can set and display necessary information, it is easy to operate and reliable.

Electric engines of generators, electric engines of washing machine, air conditioning, water pump, compressors, electric engines of fan, also applicable to copper wires, aluminum wires and some special wires, Fan motors, washing machine motor, and all kinds of small motor, square, circular, multi-layer coil winding .



(4) OEM/ODM



Innovational technical team provides perfect complete technical solutions, to satisfy every customer’s unique requirement;
Specialized after-sale team and engineers offer superior quality, rapid after-sale service door to door, to solve customer’s all after-sale problems;
Wide spreaded domestic after-sale service service network stations and overseas agencies ensure of powerful after-sale service;
Multi communication methods and full time customer service personnel dispel customer’s after-sale scruples 24 hours.



(5) Production Line Profile



With good service, professional team and reliable quality, Nide provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.
