DC Wedge Cutting Machine Slot Paper Inserting Machine For Paper Forming / Cutting

DC Wedge Cutting Machine Slot Paper Inserting Machine For Paper Forming / Cutting

  • High Light

    motor coil winding machine


    Rotor Casting Machine

  • Name
    Paper Polyester Motor Slot Paper Inserting Machine / DC Motor Forming And Cutting Machine
  • Feeding Length
  • Folding Width
    2~5mm, Adjustable
  • Model
    SMT - CD150
  • Machine Weight
    About 160kg
  • Material
  • Place of Origin
  • Brand Name
  • Certification
    ISO/SGS Audit
  • Model Number
  • Minimum Order Quantity
  • Price
  • Packaging Details
    Plywood Box With Reinforcement
  • Delivery Time
    37 - 62 days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1pcs / 35 - 58 days

DC Wedge Cutting Machine Slot Paper Inserting Machine For Paper Forming / Cutting

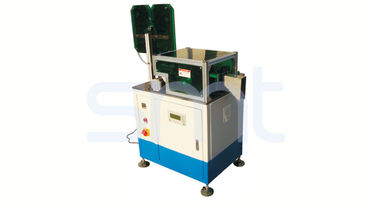

Paper Polyester Inserting Machine / DC Motor Forming and Cutting Machine SMT - CD150



(1) Main Technical Information


Item Data
Model CD150
Suitable paper roll width 10~100mm
Suitable paper thickness 0.15~0.35mm
Feeding length 10~200mm
Folding width 2~5mm, adjustable
Cutting speed About 120 pieces per minute
Folding & cutting precision 0.2mm
Power supply 220V, 50/60Hz, 0.5kW
Machine weight About 160kg
Dimension (L x W x H) 500 x 900 x 1200mm


(2) Application


Insulation paper forming and cutting machine feeds insulation paper from the reel, forms it to suit the shape of stator slot with heater and cuts it to a preset length. The only thing operator has to do is to load and unload the insulation paper and press button to start cutting.

Electric engines of generators, electric engines of washing machine, air conditioning, water pump, compressors, electric engines of fan, also applicable to copper wires, aluminum wires and some special wires, Fan motors, washing machine motor, and all kinds of small motor, square, circular, multi-layer coil winding .

1) Length of edge fold, paper feedin length and width is adjustable
2) Apply to cut insulation paper for hand-made and multi sizes motor
3) Heating forming model could be tailor-made .
4) High efficiency and easy operation
5) OEM available, same quality much lower price

(3) Machine Main Characteristic


It is a special design specific to different design or different sizes of slot; can finish insulation paper insertion at a time; automatic adjustment to perimeter, automatic cutting paper, automatic hemming and automatic inserting when inserting to various or different-sized slot; use servo paper inserting machine to feed paper and settle breadth; interpersonal interface sets required specific parameter; forming mould is adjustable to different sizes of slot automatically; characterized by simple operation, low noise, fast speed and high automaticity.


(4) OEM/ODM


Innovational technical team provides perfect complete technical solutions, to satisfy every customer’s unique requirement;
Specialized after-sale team and engineers offer superior quality, rapid after-sale service door to door, to solve customer’s all after-sale problems;
Wide spreaded domestic after-sale service service network stations and overseas agencies ensure of powerful after-sale service;
Multi communication methods and full time customer service personnel dispel customer’s after-sale scruples 24 hours.


(5) Production Line Profile


Insulation paper forming and cutting machines are widely used in motor stator, servo motor stator, induction motor stator, stepper motor stator, dc motor stator, tubular motor stator, linear motor stator, permanent magnet motor stator, torque motor stator, brushless motor stator, micro motor stator, E-bike motor stator, auto alternator stator, auto starter stator.


(6) About Us


Suzhou Smart motor Equipment Manufacturing Co.,Ltd is one of the high-tech key enterprises which specialize in designing, producing and selling motor manufacturing equipments in China. The company now has nearly 150 employees, including more than 30 engineers and technicians, with the building area about 20,000 square meters and a hundred sets of advanced production and test equipments. It is now qualified for designing and manufacturing full production line (starts from coil winding to final forming of a stator) for AC motors such as home appliance motor, industrial medium and small motors, pump motor, rolling door motor and automobile motor etc. In 2012, SMT passed the certification of ISO9001:2000 Quality Management System.
