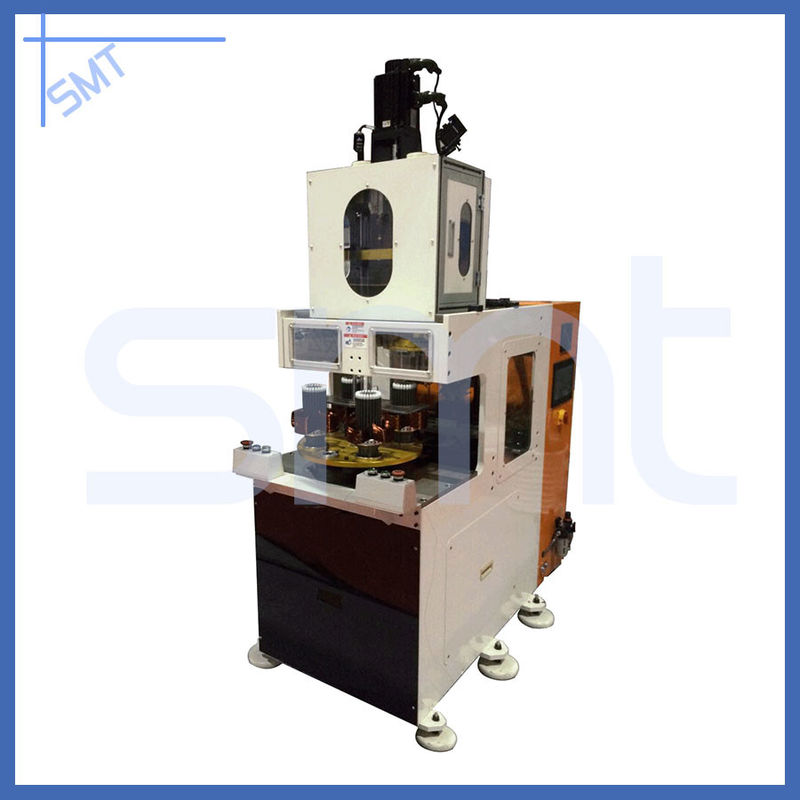

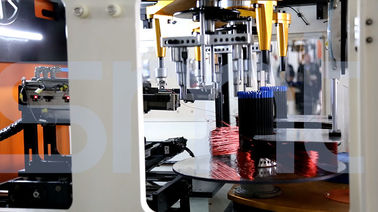

Automatic Single Phase Motor Vertical Type Stator Coil Winding Machine 3000 r/Min

Automatic Single Phase Motor Vertical Type Stator Coil Winding Machine 3000 r/Min

    • Automatic Single Phase Motor Vertical Type Stator Coil Winding Machine 3000 r/Min
    • Automatic Single Phase Motor Vertical Type Stator Coil Winding Machine 3000 r/Min
  • Automatic Single Phase Motor Vertical Type Stator Coil Winding Machine 3000 r/Min

    Product Details:

    Place of Origin: China
    Brand Name: SMT
    Certification: ISO9001/SGS/CE
    Model Number: SMT-LR100

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiable
    Packaging Details: Wooden Case Suitable for Sea Transportation.
    Delivery Time: 45 - 55 days for 1set
    Payment Terms: T/T, L/C
    Supply Ability: 1pcs/ 45 - 55 days
    Contact Now
    Detailed Product Description
    Name: Automatic Single Phase Motor Vertical Type Stator Coil Winding Machine Wire Speed: ≤3000r/min
    Transfer Number: 2-6pcs Condition: New
    Warranty: 12 Months Winding Head: 1-2pcs
    Max Stack Height: ≤70mm Mould Life: >1,000,000 Shots
    Automatic Grade: Full-Automatic OEM: Yes
    High Light:

    electric motor coil winding machine


    ceiling fan winding machine

    QLR70 Coil Needle Stator Winding Machine PLC Displayer 0.2~1.0 MM Wire Diamete



    Vertical Type Stator Coil Winding Machine is a kind of single-head and double-station automatic winding machine; automatic put the coil into transfer former orderly; especially suitable for high slot filling rate, small notch stator; winding mode such as automatic skip, automatic cutting and automatic indexing can be finished at a time successively; parameter could be set in human-machine interface, winding tension is adjustable; obtain continuous/discontinuous winding way and meets the 2 poles, 4 poles and 6 poles coils winding,


    (1) Main Technical Data


    Model LR100
    Winding Head 1pc
    Wire Diameter 0.3-1.0mm
    Stack height ≤120mm
    Unload speed ≤2500r/min
    Winding precision ±0turn
    Air pressure ≥0.6MPa
    Power supply 380V/50/60Hz 8Kw
    MOQ 1set Automatic Coil Winding Machine
    Certification ISO9001:2008;SGS

    (2) Application

    This machine is suitable for 2 poles, 4 poles and 6poles coils winding.

    (3) Machine main function and characteristic

    Winding tooling: each machine has one set winding tooling and three vertical winding forms.
    The whole set of tooling can be changed, and it takes about 15min.
    The turntable is two stations structure. It adopts servo system to rotate and index transfer form.
    Allow three wires winding simultaneously.
    Main spindle is controlled by servo motor. The coil turn number accuracy is ±1 turn.
    The working rotation speed can be set . Machine has no distinct vibration and noise.
    Free of enamel damage and wire snap. Once the copper wire is run out, machine will automatically stop.
    PLC can set turn number, winding speed, tooling sunk height, tooling sunk speed and winding direction.
    X andY spindle of wire hooker and wire cutter adopts servo system. It can adjust the length of bridge wire and lead wire.
    Tooling sunk adopts servo system. The max segment number of tooling sunk is 6.


    (4) OEM/ODM Profile

    Taking full advantage of experienced engineers, skillful professionals, perfect equipment, strict manufacturing process control and wide coverage service net-work, we are dedicated to provide our customers with the optimized solution to electric motor manufacturing. So far, except the big market share in China, we export out machines to the worldwide countries such as USA, Italy, Australia, India, Brazil, Mexico, Turkey, Thailand, Vietnam, Iran, etc, and our machines share the great reputation among customers for it durable, reliable performance, reasonable price and good after-service.


    (5) Production Line Profile


    With good service, professional team and reliable quality, Nide provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.


    (6) About Our Factory

    Located in Suzhou, a beautiful city of industry, commerce heart in Yangtze River Delta, Smart is specialized in the R&D, manufacturing and sales of induction motor machinery. Our machines produced in Suzhou factory are mainly applied to induction motors such as washing machine motor, air conditioner motor, pump motor, coil motor, three-phase motor, fan motor and compressor motor, etc.
