Hydraulic System Driven Automatic Stator Coil Forming Machine with 31-101mm Stator I.D. and ≤161mm Stator O.D.
  • name
  • name

Hydraulic System Driven Automatic Stator Coil Forming Machine with 31-101mm Stator I.D. and ≤161mm Stator O.D.

MOQ: 1 Set
Price: Negotiable
Standard Packaging: Plywood Box with your requirement.
Delivery Period: 1-3.8 months
Payment Method: T/T,L/C
Supply Capacity: 1pcs / 1- 3.7 months
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
SMT
Certification
ISO / SGS Audit
Model Number
SMT - ZJ160
Name:
Hydraulic System Driven Automatic Stator Coil Forming Machine
Model:
ZJ160
Stator I.D.:
31 -101mm
Stator O.D.:
≤161mm
Stack Height:
16-100mm
Color:
White/Blue
Machine Size:
Middle Size
Automation Type:
Full Automation
Highlight:

Pre - Forming Machine

,

electric motor winding equipment

Product Description

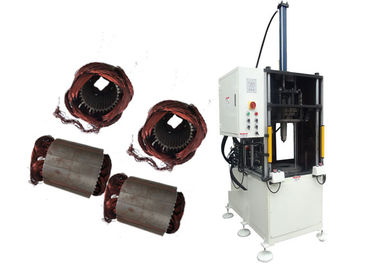

SMT - ZJ160 Coil Forming Machine Hydraulic System Driven Automatic Stator
The Stator Coil Final Forming Machine is designed for stator coil final forming, featuring hydraulic system drive and PLC control. Its tooling design incorporates flexible inner expansion principles with outer wrapping and edge forming to create stator windings. This ensures proper winding dimensions after lacing, delivering high efficiency and quality forming with advanced technology, stable performance, and competitive pricing.
Required Information for Quotation
  • Stator drawing before and after forming
  • Stator O.D. (outer diameter)
  • Stator I.D. (inner diameter)
  • Stator stack height
  • End coil dimension
Main Technical Features
Model ZJ160
Stator I.D. 31 - 101mm
Stator O.D. ≤160mm
Stack Height 16-100mm
Displacement of cylinder ≤20F
MOQ 1 Set Mid-Forming Machine
Power Supply 380V/50/60Hz 3.75Kw
Weight 1000kgs
Machine dimension (L)1200*(W)750*(H)2500
Application
This machine is primarily used in new energy automobile motors, servo motors, generators, three-phase motors, pump motors, compressor motors, household appliance motors, and other induction motors. As an industry leader, we specialize in stator and rotor core assembly, slot insulation, auto winding, inserting, fusing, and resin impregnation for various stator sizes and slot shapes.
With a focus on international trade, we prioritize both product quality and service to enhance your brand's global competitiveness. Whether you need machines, components, or OEM products, SMT Motor Equipment is your reliable partner.
Machine Main Characteristics
  • Whole hydraulic system with PLC program control
  • Adjustable forming stack length via washer changes
  • Prevents damage to slot paper and wedges
  • Eliminates stator deformation and lamination issues
  • No wire enamel breakage
  • Production capacity ≤13s/set (excluding loading/unloading)
  • Primary qualification rate ≥99.5%, ≥99.9% after rework
  • Safety grating protection system
  • Two-hand simultaneous start button for operator safety
OEM/ODM Services
  • Innovative technical team provides complete customized solutions
  • Specialized after-sale team offers rapid door-to-door service
  • Domestic and international service network for comprehensive support
  • 24/7 customer service available through multiple communication channels
Production Line Profile
SMT offers professional consulting and turn-key project services for AC motor, DC motor, and BLDC motor manufacturing, including cost evaluation, manufacturing know-how, staff training, and complete production line setup.
Hydraulic System Driven Automatic Stator Coil Forming Machine with 31-101mm Stator I.D. and ≤161mm Stator O.D. 0
About Us
Suzhou Smart Motor Equipment Manufacturing Co., Ltd is a high-tech enterprise specializing in motor manufacturing equipment design, production, and sales. With nearly 150 employees including 30+ engineers, 20,000 square meters of facilities, and advanced production equipment, we provide complete production lines for various motor types. Certified with ISO9001:2000 Quality Management System since 2012.
