Hydraulic System Driven Automatic Stator Coil Forming Machine with 31-101mm Stator I.D. and ≤161mm Stator O.D.
Product Summary
SMT - ZJ160 Coil Forming Machine Hydraulic System Driven Automatic Stator The Stator Coil Final Forming Machine is designed for stator coil final forming, featuring hydraulic system drive and PLC control. Its tooling design incorporates flexible inner expansion principles with outer wrapping and ...
Product Custom Attributes
Name:
Hydraulic System Driven Automatic Stator Coil Forming Machine
Model:
ZJ160
Stator I.D.:
31 -101mm
Stator O.D.:
≤161mm
Stack Height:
16-100mm
Color:
White/Blue
Machine Size:
Middle Size
Automation Type:
Full Automation
Highlight:
Pre - Forming Machine
,electric motor winding equipment
Basic Properties
Place of Origin:
China
Brand Name:
SMT
Certification:
ISO / SGS Audit
Model Number:
SMT - ZJ160
Trading Properties
Minimum Order Quantity:
1 Set
Price:
Negotiable
Packaging Details:
Plywood Box with your requirement.
Delivery Time:
1-3.8 months
Payment Terms:
T/T,L/C
Supply Ability:
1pcs / 1- 3.7 months
Product Description

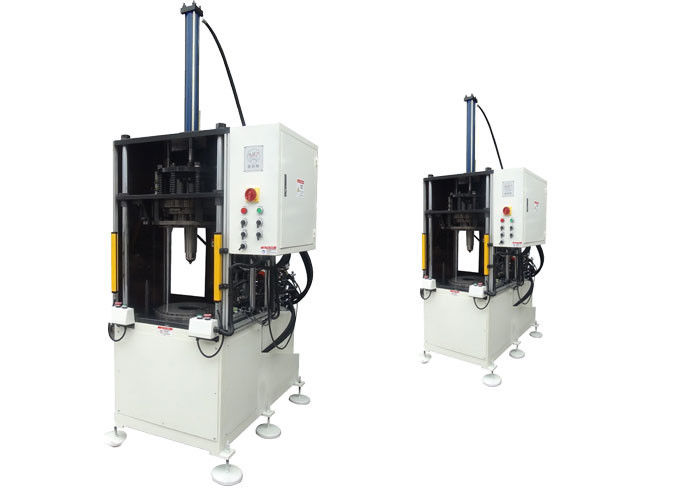

SMT - ZJ160 Coil Forming Machine Hydraulic System Driven Automatic Stator
The Stator Coil Final Forming Machine is designed for stator coil final forming, featuring hydraulic system drive and PLC control. Its tooling design incorporates flexible inner expansion principles with outer wrapping and edge forming to create stator windings. This ensures proper winding dimensions after lacing, delivering high efficiency and quality forming with advanced technology, stable performance, and competitive pricing.
Required Information for Quotation
- Stator drawing before and after forming
- Stator O.D. (outer diameter)
- Stator I.D. (inner diameter)
- Stator stack height
- End coil dimension
Main Technical Features
| Model | ZJ160 |
|---|---|
| Stator I.D. | 31 - 101mm |
| Stator O.D. | ≤160mm |
| Stack Height | 16-100mm |
| Displacement of cylinder | ≤20F |
| MOQ | 1 Set Mid-Forming Machine |
| Power Supply | 380V/50/60Hz 3.75Kw |
| Weight | 1000kgs |
| Machine dimension | (L)1200*(W)750*(H)2500 |
Application

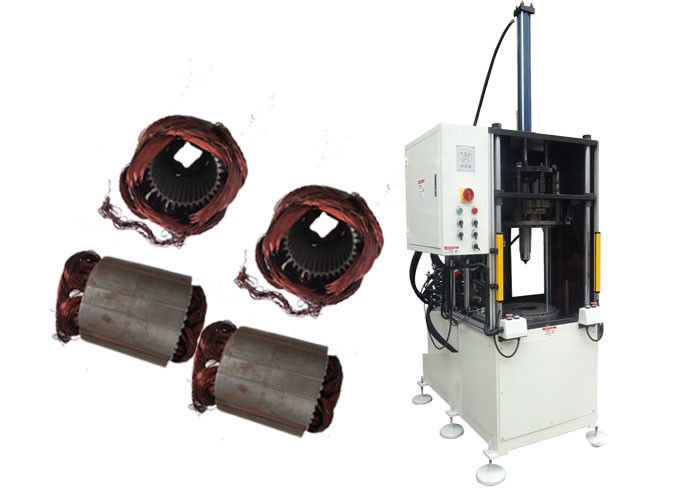

This machine is primarily used in new energy automobile motors, servo motors, generators, three-phase motors, pump motors, compressor motors, household appliance motors, and other induction motors. As an industry leader, we specialize in stator and rotor core assembly, slot insulation, auto winding, inserting, fusing, and resin impregnation for various stator sizes and slot shapes.
With a focus on international trade, we prioritize both product quality and service to enhance your brand's global competitiveness. Whether you need machines, components, or OEM products, SMT Motor Equipment is your reliable partner.
Machine Main Characteristics
- Whole hydraulic system with PLC program control
- Adjustable forming stack length via washer changes
- Prevents damage to slot paper and wedges
- Eliminates stator deformation and lamination issues
- No wire enamel breakage
- Production capacity ≤13s/set (excluding loading/unloading)
- Primary qualification rate ≥99.5%, ≥99.9% after rework
- Safety grating protection system
- Two-hand simultaneous start button for operator safety
OEM/ODM Services
- Innovative technical team provides complete customized solutions
- Specialized after-sale team offers rapid door-to-door service
- Domestic and international service network for comprehensive support
- 24/7 customer service available through multiple communication channels
Production Line Profile
SMT offers professional consulting and turn-key project services for AC motor, DC motor, and BLDC motor manufacturing, including cost evaluation, manufacturing know-how, staff training, and complete production line setup.
