Name: Automatic Compressor Motor Stator Coil Final Forming Machine Model: ZZ160
Stator I.D.: 50-100mm Stator O.D.: ≤160mm
Machine Weight: About 700kg Machine Dimension (LxWxH): 650x 900 X 2300mm
Color: Custom-made
High Light:

Automatic Compressor Motor forming equipment


Final wire forming equipment


Stator Coil forming equipment

Automatic Compressor Motor Stator Coil Final Wire Forming Equipment

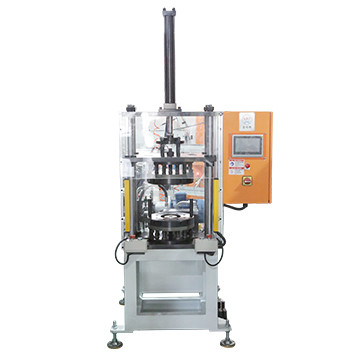

Automatic Compressor Motor Stator Coil Final Forming Machine SMT - ZZ160



This machine is used for small to middle motor stator coil forming after coil insertion, could shape the stator end coil OD, ID and height approaching to required size via initial extruding, and good for the next coil lacing process,with single-tooth slot insulation protective device. It is driven by hydraulic system; PLC programming; whole schematic design of inner expansion, outer wrapping and edge forming ensures appropriate winding outside dimension. Machine has cuff supports and sliding table,which is convenient and safe for operation.
fully hydraulic system, industrial PLC design;
independent 3D forming;
fast fixture replacement for optional;
tact time≤15s/set;


(1) Main Technical Features


Model ZZ160
Stack height 16-100mm
Stator I.D 50-100mm
Stator O.D ≤160mm
Displacement of cylinder 20F
Input 380V/50/60Hz
Power supply 3.75kw
Machine weight About 700kg
Machine dimension (LxWxH) 650x 900 x 2300mm


(2) Application


The products are mainly applied in new energy automobile motor, servo motor, generator, three-phase motor, pump motor, compressor motor, household appliance motor and other induction motors. As a world leader, we have obvious advantages in stator and rotor core assembly, slot insulation, auto winding, auto inserting, auto fusing, auto resin impregnation and other motor production technology for different sizes and slot shape of stator.

Focusing on international trading, we have placed our priority on both product quality and service, which are the key elements that make your brand more competitive in the global market. If you are looking for machines, components, or OEM products, SMT motor Equipment will be your most reliable partner.

We are ready to establish a long business relationship with your esteemed company as a supplier, a partner and a friend. We warmly welcome you from worldwide.

(3) Machine Main Characteristic


This machine adopts whole hydraulic system and PCL program.

This machine can adjust the forming stack length by changing washer.

Both slot paper and wedge should not be damaged or turned over. The stator should not be deformation or stator lamination should not be upward. There is no wire enamel broken.

Production capacity ≤13s/set (exclude loading/unloading time)

Primary qualification rate ≥99.5%, after rework, the rate ≥99.9%

This machine adopts safety grating protection system. Operator need to stand when operating.

Machine adopts two hands simultaneously start button to ensure safety.

Efficiency stator coil forming machine,stator coil forming machine,coil forming machine work,coil forming machine used


(4) OEM/ODM


Innovational technical team provides perfect complete technical solutions, to satisfy every customer’s unique requirement;
Specialized after-sale team and engineers offer superior quality, rapid after-sale service door to door, to solve customer’s all after-sale problems;
Wide spreaded domestic after-sale service service network stations and overseas agencies ensure of powerful after-sale service;
Multi communication methods and full time customer service personnel dispel customer’s after-sale scruples 24 hours.


(5) Production Line Profile


With good service, professional team and reliable quality, SMT provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.

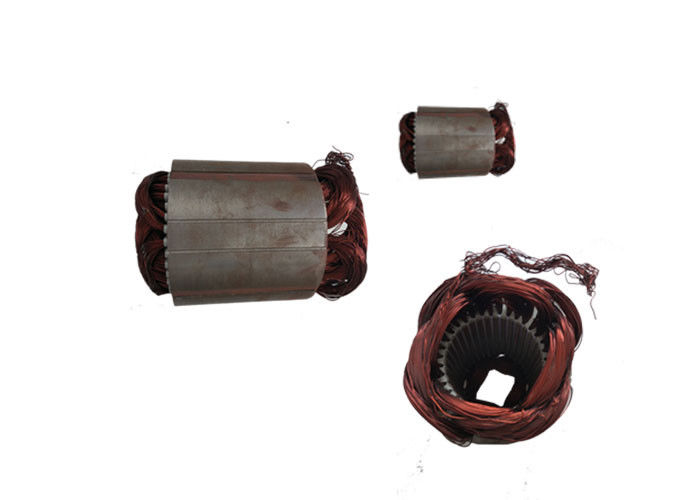

Compressor Motor Stator Coil Final Wire Forming Equipment Automatic 0

(6) About Us


Suzhou Smart motor Equipment Manufacturing Co.,Ltd is one of the high-tech key enterprises which specialize in designing, producing and selling motor manufacturing equipments in China. The company now has nearly 150 employees, including more than 30 engineers and technicians, with the building area about 20,000 square meters and a hundred sets of advanced production and test equipments. It is now qualified for designing and manufacturing full production line (starts from coil winding to final forming of a stator) for AC motors such as home appliance motor, industrial medium and small motors, pump motor, rolling door motor and automobile motor etc. In 2012, SMT passed the certification of ISO9001:2000 Quality Management System.
