Automatic Coil Lacing Machine for AC Motor, 380V 3.5Kw, ≤Φ160mm
Product Summary
Automatic Coil Lacing Machine Double Sided For AC Industrial Motor This advanced automatic coil lacing machine features double-sided lacing capability specifically designed for AC industrial motors. The machine consists of multiple precision components including the machine body, needle assembly, ...
Product Custom Attributes
Name:
Automatic Coil Lacing Machine Double Sides Lacing For AC Motor Industrial Motor
Stator O.D.:
≤Φ160mm
Stack Height:
20~120mm
Power Supply:
380V/50/60Hz 3.5Kw
Air Pressure:
0.4MPa
Color:
White/Blue/Green
Highlight:
380V stator lacing machine
,automatic coil lacing machine for AC motor
,3.5Kw stator lacing machine
Basic Properties
Place of Origin:
China
Brand Name:
SMT
Certification:
ISO / SGS Audit, CE
Model Number:
SMT - BZ51
Trading Properties
Minimum Order Quantity:
1 Set
Price:
Negotiable
Packaging Details:
Wooden case suitable for sea transportation With a Sealing Bag.
Delivery Time:
60 - 80 days
Payment Terms:
T/T,L/C
Supply Ability:
1pcs / 60 - 80 days
Product Description

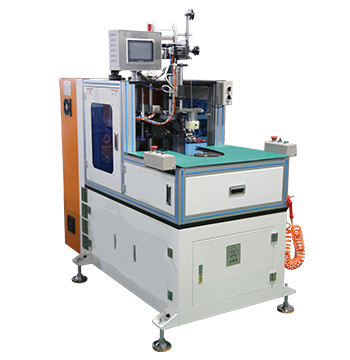

Automatic Coil Lacing Machine Double Sided For AC Industrial Motor
This advanced automatic coil lacing machine features double-sided lacing capability specifically designed for AC industrial motors. The machine consists of multiple precision components including the machine body, needle assembly, nozzle rotating mechanism, needle movement system, stator indexing unit, and automated thread feeding/cutting system.
Main Technical Specifications
| Model | SMT-BZ51 |
|---|---|
| Stack height | 17~100mm |
| Stator I.D | Φ25~ Φ100mm |
| Stator O.D | ≤Φ160mm |
| Height of overhang | ≤40mm |
| Lacing mode | Slot by slot/Interval slot/Fancy slot |
| Lacing speed | ≈0.6s/s |
| Power supply | 380V/50/60Hz 3.5Kw |
| Weight | ≈800Kg |
| Dimension | (L)1500×(W)650×(H)1700mm |
Key Advantages
- Servo-driven system with CNC control and HIM programming
- Multiple lacing modes: slot lacing, interval lacing, and fancy lacing
- Dual-needle servo system for simultaneous upper/lower coil lacing
- Automatic thread feeding and cutting - no manual knotting required
- Quick tooling change capability (50-130mm stator stack length range)
- Adjustable lacing tension with production capacity ≤1s/slot
- High-quality output: ≥98.5% primary qualification rate (≥99.5% after rework)
- Safety features include grating protection and two-hand start operation
Machine Characteristics
- Industrial PLC control with human-machine interface and horizontal frame design
- Programmable lacing methods for flexible production requirements
- Designed for large stators with high winding overhang
- Movable tooling for efficient stator loading/unloading and reduced labor
OEM/ODM Capabilities
We specialize in motor manufacturing equipment including automatic winding machines, lacing machines, inserting machines, and shaping machines. Utilizing advanced technology and processes, we deliver fully automated production solutions with stable quality and comprehensive customer support.
Production Line Services
Our professional team provides complete technical consulting and turn-key project services for AC motor, DC motor, and BLDC motor manufacturing. Services include cost evaluation, manufacturing know-how, staff training, and complete production line implementation.
About Suzhou Smart Motor Equipment Manufacturing Co., Ltd
As a high-tech enterprise specializing in motor manufacturing equipment, we employ 150 staff including 30+ engineers. Our 20,000 square meter facility features advanced production and testing equipment to ensure quality and performance.
