Intermediate Coil Former Machine for 170-260mm Stator OD with 90-220mm Stack Height and Φ100-200mm ID Range

MOQ: 1 SET
Price: Negotiable
Standard Packaging: Plywood Box With sealing
Delivery Period: 8-10 weeks
Payment Method: T/T,L/C
Supply Capacity: 7-11 weeks
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
SMT
Certification
ISO/SGS Audit
Model Number
FZJ300
Highlight:

90-220mm Stack Height Coil Forming Machine

,

Φ100-200mm ID Range Stator Coil Former Machine

,

6Kw Power Intermediate Coil Former Machine

Product Description
Intermediate Coil Former Machine For 170-260mm Stator OD
Product Description
Intermediate Forming Machine 170-260mm Stator OD ISO/SGS Audit
Application
Suitable for stators used in single phase motors, three phase motors, compressor motors, starter motors, washing machine motors, air conditioners, and more.
Information Needed for Inquiry
  • Stator lamination drawing
  • Stator stack drawing
  • Wire connection drawing
  • Stator application details
Main Technical Features
Coil Forming Machines are driven by hydraulic system, including Coil Pre-forming, Expanding, Intermediate Forming and final forming Machines. Various station configurations available.
Model SMT-FZJ300
Stack Height 90-220mm
OD Range Φ170-260mm
ID Range Φ100-200mm
Displacement of cylinder 30L
Power 6Kw
Power Supply 3-phase 380V150Hz
Weight ≈2300Kg
Dimension (L)3700×(W)1300×(H)2600mm

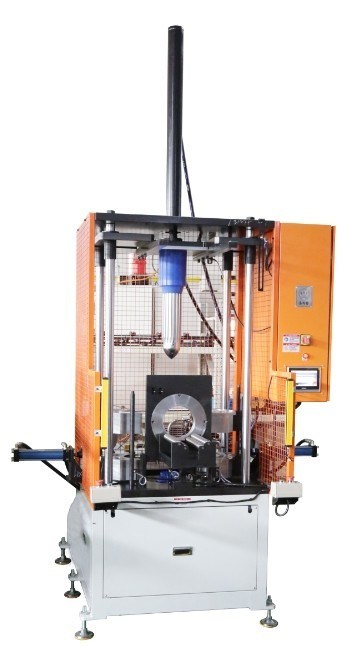

Intermediate Coil Former Machine for 170-260mm Stator OD with 90-220mm Stack Height and Φ100-200mm ID Range 0
Applications
Primarily used in new energy automobile motors, servo motors, generators, three-phase motors, pump motors, compressor motors, household appliance motors and other induction motors. Our expertise covers full production technology for various stator sizes and slot shapes.
Our Service
We prioritize both product quality and service to enhance your global market competitiveness. Whether you need machines, components, or OEM products, we are your reliable partner ready to establish long-term business relationships.
OEM/ODM Capabilities
  • Innovative technical team providing complete solutions
  • Specialized after-sale service with door-to-door support
  • Domestic and international service network
  • 24/7 customer support
Production Line Profile
We offer comprehensive motor manufacturing services including technical consulting, cost evaluation, staff training, and complete turn-key projects for AC, DC, and BLDC motors.
Intermediate Coil Former Machine for 170-260mm Stator OD with 90-220mm Stack Height and Φ100-200mm ID Range 1
About Us
SMT Intelligent Device Manufacturing (Zhejiang) Co.,Ltd is a high-tech enterprise specializing in motor manufacturing equipment. With 150 employees including 30+ engineers, we design and manufacture complete production lines for various motor types. ISO9001:2000 certified since 2012.
