Horizontal Stator Winding Inserting Machine for Compressor and Industry Motors with 60-150mm Stator I.D

MOQ: 1 Set
Price: Negotiable
Standard Packaging: Coil Inserting Machine is packaged with plywood cases. Its dimension is according to the machine and other parts size.
Delivery Period: 60 workdays after placing order
Payment Method: T/T,L/C
Supply Capacity: 10~20 sets per 3 months
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
SMT
Certification
ISO / BV / SGS
Model Number
SMT-QX08
Name:
Compressor Motor Winding Coils Inserting Machine Horizontal Inserting Winding Coils And Paper
Model:
SMT-QX08
Stator I.D:
≥Φ60mm
Stator O.D:
≤Φ210mm
Operation Way:
Horizontal
Wire:
Cu / AL
Application:
Compressor Motor/Industry Motor
OEM:
Ok
Highlight:

60-150mm Stator I.D Stator Winding Inserting Machine

,

Compressor Motor Application Stator Winding Inserting Machine

,

Industry Motor Application Stator Winding Inserting Machine

Product Description
Compressor Motor Winding Coils Inserting Machine Horizontal Inserting Winding Coils and Paper
The QX series Compressor Motor Winding Coils Inserting Machine features a modular tooling design for quick tooling changes (8 minutes changeover time). Its horizontal winding insertion structure is ideal for large stator production and can be integrated with bovine-eye bearing platforms and Coil Expanding Machines for three-times winding insertion, reducing labor intensity and simplifying loading/unloading.
Technical Parameters
Model SMT-QX08
Stator I.D Φ60~Φ150mm
Stator O.D ≤Φ210mm
Stack height ≤190mm
Tooling travel ≤90mm
Compatible wire Cu / AL
Slot number range 24~48 slot
Power supply 380V/50/60Hz 5Kw
Weight ≈1050Kg
Dimension (L)2380×(W)1180×(H)1700mm
Key Features
  • Automatically inserts winding coils and wedge insulation into stator slots in one operation
  • Servo motor-driven coil pushing with pre-pushing function
  • Servo motor-driven paper cutting and indexing with adjustable speed
  • Adjustable wedge paper length with slot-by-slot, interval slot, or skip slot feeding
  • PLC controller with fault detection and diagnosis capabilities
  • Pre-feeding paper device ensures consistent paper length
  • Low-temperature paper cutting with integrated heating device
  • Adjustable coil pushing speed for different wire gauges
  • Ergonomic standing operation with two-hand start button
  • Quick changeover time of approximately 10 minutes
Component Specifications
  • PLC Controller: INOVANCE (China)
  • Servo motor system: INOVANCE (China)
  • Sensor elements: OMRON (Japan), AUTONICS (Korea)
  • Other electrical components: SCHNEIDER (France), IDEC (Japan), Delixi (China)
  • Ball screw: HIWIN (Taiwan)
  • Bearings: NSK (Japan), SKF (Sweden)
  • Pneumatic elements: AirTAC (Taiwan)
  • Air source pressure: 0.5~1MPa
  • Power: 6.5 Kw (actual configuration may vary)
  • Power Source: 3-phase 415V/50Hz
  • Weight: ≈1150Kg
  • Dimensions: (L)2380×(W)1280×(H)1700mm
Applications
This machine is designed for various induction motors including washing machine motors, air conditioner motors, pump motors, precision servo motors, industrial three-phase motors, fan motors, and new energy motors.
Service and Support
We specialize in developing and manufacturing machines for induction motor production, offering customized solutions when required. Our services include:
  • One-year warranty with free technical support and replacement parts
  • Overseas after-sales service with rapid response
  • Manufacturing technical consulting and turn-key project services
  • Production line layout planning assistance
  • Staff training and motor cost evaluation services

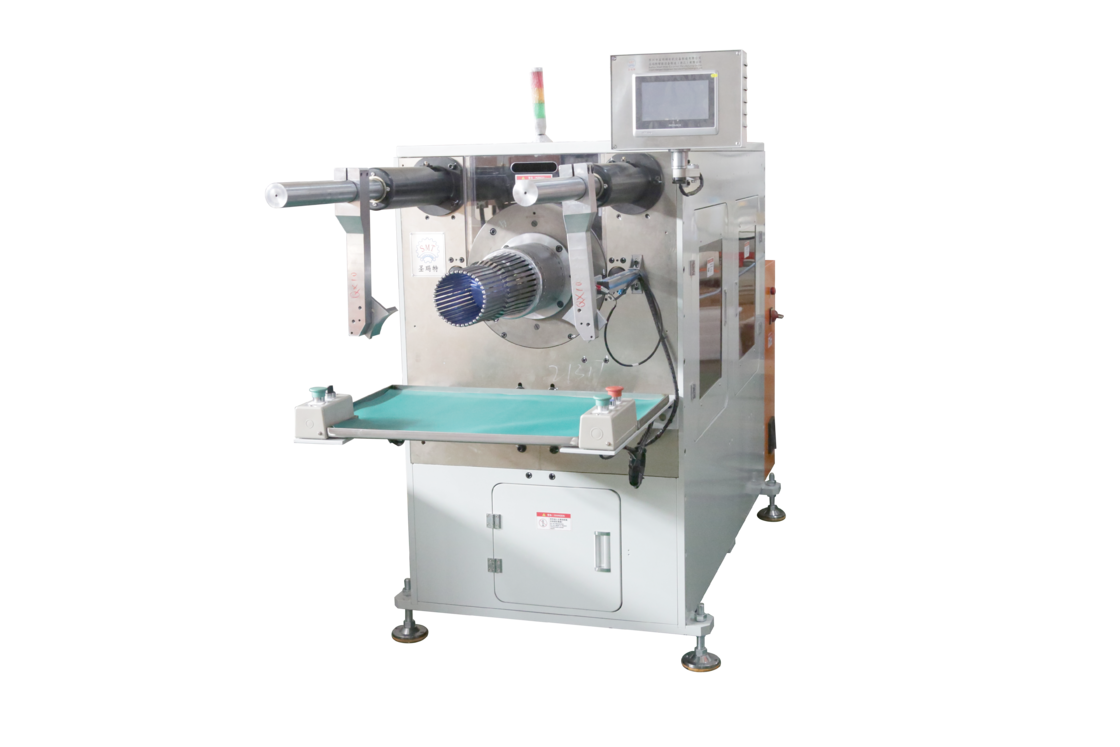

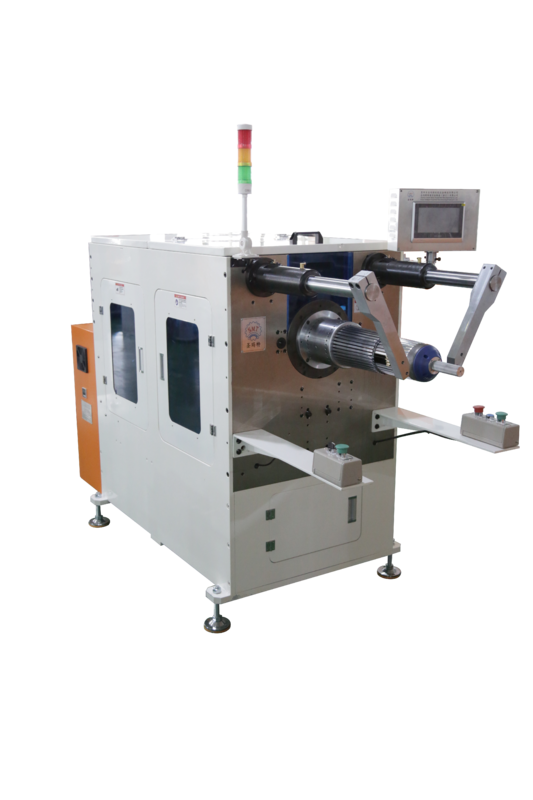

Product Image
Horizontal Stator Winding Inserting Machine for Compressor and Industry Motors with 60-150mm Stator I.D 0
