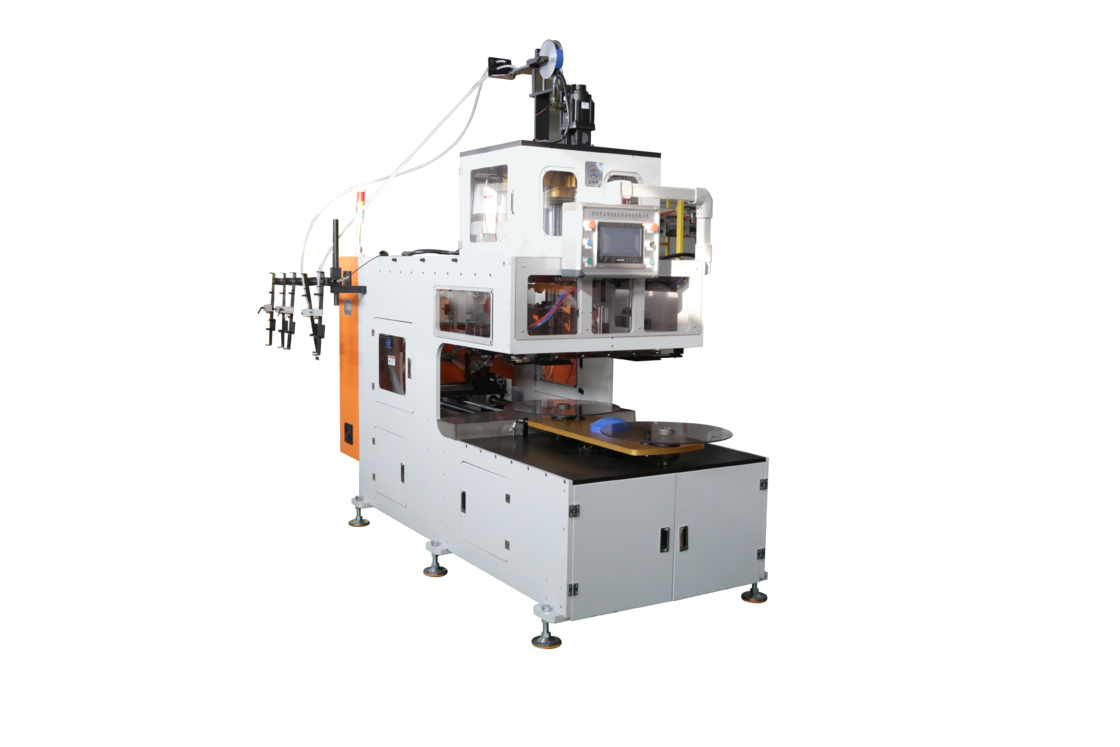

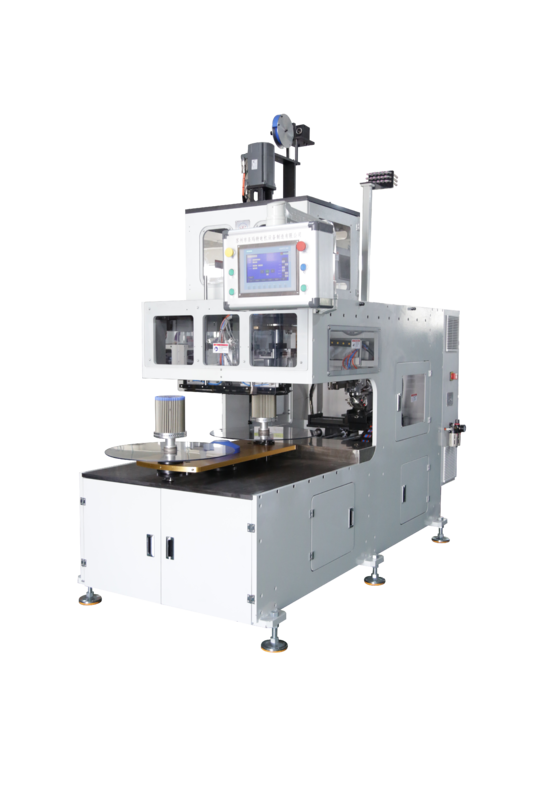

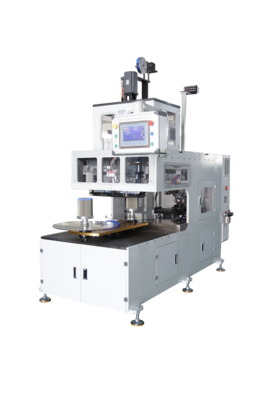

Vertical Stator Winding Machine with 500rpm Max Speed for 90-220mm Stack Height and 4 Mold Dipping Segments
Product Summary
Vertical Stator Winding Machine for 0.3-1.3mm Wire Diameter Vertical Winding Machine 0.3-1.3mm Wire Diameter ISO/SGS Audit Application Suitable for stators used in single phase motors, three phase motors, compressor motors, starter motors, washing machine motors, air conditioners, and more. For ...
Product Custom Attributes
Highlight:
500rpm Max Speed Stator Winding Machine
,90-220mm Stack Height Vertical Winding Machine
,4 Mold Dipping Segments Motor Coil Winding Machine
Basic Properties
Place of Origin:
China
Brand Name:
SMT
Certification:
lSO/ SGS Audit
Model Number:
LR300A
Trading Properties
Minimum Order Quantity:
1 SET
Price:
Negotiable
Packaging Details:
Plywood Box With sealing
Delivery Time:
8-10 weeks
Payment Terms:
L/C,T/T
Supply Ability:
7-11 weeks
Product Description
Vertical Stator Winding Machine for 0.3-1.3mm Wire Diameter
Vertical Winding Machine 0.3-1.3mm Wire Diameter ISO/SGS Audit
Application
Suitable for stators used in single phase motors, three phase motors, compressor motors, starter motors, washing machine motors, air conditioners, and more.
For stator winding inserting machine inquiries, please provide:
- Stator lamination drawing
- Stator stack drawing
- Wire connection drawing
- Stator application details
Main Technical Features
| Model | SMT-LR300A |
|---|---|
| Max. Unload Winding Speed | 500rpm |
| Wire Diameter | 0.3-1.3mm |
| Max. Stack Height | 90-220mm |
| Mold Dipping Segments | 4 (customizable) |
| Parallel Wire No. | Maximum 8 |
| Air Source Pressure | ≈120pc/min |
| Power Source | 3-phase 380V/50Hz |
| Weight | ≈2200Kg |
| Dimension | (L)2400×(W)2000×(H)2500mm |
| Stretching tolerance | ≤0.01mm |
Applications
Primarily used for new energy automobile motors, servo motors, generators, three-phase motors, pump motors, compressor motors, household appliance motors, and other induction motors. Our expertise includes stator and rotor core assembly, slot insulation, auto winding, inserting, fusing, and resin impregnation for various stator sizes and slot shapes.
Our Service
We prioritize product quality and service to enhance your global market competitiveness. Whether you need machines, components, or OEM products, SMT Motor Equipment is your reliable partner. We welcome long-term business relationships with companies worldwide.
OEM/ODM Services
- Innovative technical team provides customized solutions
- Specialized after-sale service with door-to-door support
- Domestic and international service network
- 24/7 customer support
Production Line Profile
We offer comprehensive motor manufacturing services including technical consulting, turn-key projects, cost evaluation, manufacturing know-how, and staff training for AC motors, DC motors, and BLDC motors.
About Us
SMT Intelligent Device Manufacturing (Zhejiang) Co., Ltd is a high-tech enterprise specializing in motor manufacturing equipment. With 150 employees, including 30+ engineers, and 20,000 square meters of facilities, we design and manufacture complete production lines for various motor types. Certified by ISO9001:2000 Quality Management System in 2012.
