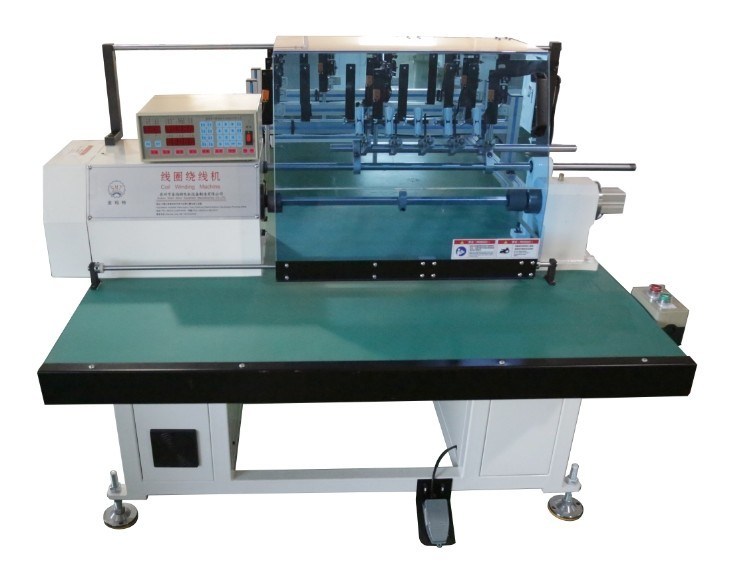

Stator Winding Machine with Max. Unload Winding Speed 1000RPM Parallel Wire 3 pcs and Max. Swing Diameter ≤550mm for Motor Coil Winding
Product Summary
Coil Stator Winding Machine For Wire Diameter 0.1mm-1.0mm Product Description Coil Winding Machine Wire Diameter 0.1mm-1.0mm ISO / SGS Audit Application Suitable for stators used in single phase motors, three phase motors, compressor motors, starter motors, washing machine motors, air conditioners, ...
Product Custom Attributes
Highlight:
Max. Unload Winding Speed 1000RPM Stator Winding Machine
,Parallel Wire 3 pcs Coil Winding Machine
,Max. Swing Diameter ≤550mm Motor Winding Equipment
Basic Properties
Place of Origin:
China
Brand Name:
SMT
Certification:
ISO / SGS Audit
Model Number:
R160
Trading Properties
Minimum Order Quantity:
1 SET
Price:
Negotiable
Packaging Details:
Plywood Box With sealing
Delivery Time:
8-10 weeks
Payment Terms:
L/C,T/T
Supply Ability:
7-11 weeks
Product Description
Coil Stator Winding Machine For Wire Diameter 0.1mm-1.0mm
Product Description
Coil Winding Machine Wire Diameter 0.1mm-1.0mm ISO / SGS Audit
Application
Suitable for stators used in single phase motors, three phase motors, compressor motors, starter motors, washing machine motors, air conditioners, and more.
For stator winding inserting machine inquiries, please provide the following information:
- Stator lamination drawing
- Stator stack drawing
- Wire connection drawing
- Stator application details
Main Technical Features
| Model | SMT-R160 |
|---|---|
| Max. Unload Winding Speed | 1000RPM |
| Wire Diameter | 0.1mm-1.0mm |
| Parallel Wire | 3 pcs |
| Max. Swing Diameter | ≤550mm |
| Groove-skipping Distance | ≤400mm |
| Weight | 550kg |
| Dimension | (L)1550×(W)1250×(H)1300mm |
| Power supply | 3-phase 220V/50Hz |
| Power | 2.2KW |
Application Areas
Primarily used in new energy automobile motors, servo motors, generators, three-phase motors, pump motors, compressor motors, household appliance motors, and other induction motors. Our expertise includes stator and rotor core assembly, slot insulation, auto winding, auto inserting, auto fusing, and auto resin impregnation for various stator sizes and slot shapes.
Our Service
We prioritize product quality and service to enhance your brand's global competitiveness. Whether you need machines, components, or OEM products, we are your reliable partner. We welcome long-term business relationships with companies worldwide.
OEM/ODM Services
- Innovative technical team provides customized solutions
- Specialized after-sale service with door-to-door support
- Domestic and international service network
- 24/7 customer support
Production Line Profile
We offer comprehensive motor manufacturing services including technical consulting, turn-key projects, cost evaluation, manufacturing know-how, and staff training for AC motors, DC motors, and BLDC motors.
About Us
SMT Intelligent Device Manufacturing (Zhejiang) Co., Ltd is a high-tech enterprise specializing in motor manufacturing equipment. With 150 employees, including 30+ engineers, we operate from a 20,000 sqm facility with advanced production and testing equipment. Certified by ISO9001:2000, we provide complete production lines for various motor types.
