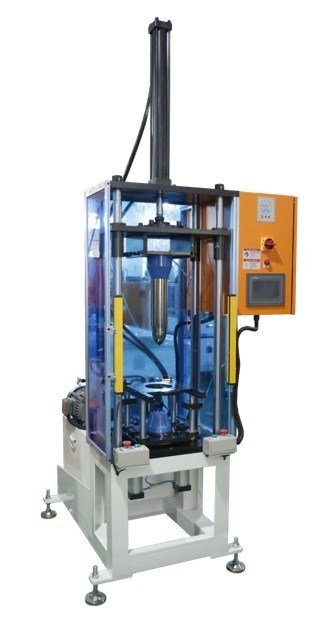

Preforming Coil Forming Machine with Stator I.D Φ50-120mm O.D Φ80-160mm and Stack Height Range 40-150mm
-
Highlight
Stator I.D Φ50-120mm Coil Forming Machine
,Stator O.D Φ80-160mm Preforming Machine
,Stack Height Range 40-150mm Stator Coil Forming Machine
-
Place of OriginChina
-
Brand NameSMT
-
CertificationISO/SGS Audit
-
Model NumberYZ160
-
Minimum Order Quantity1 Set
-
PriceNegotiable
-
Packaging DetailsPlywood Box With Sealing
-
Delivery Time8-10 weeks
-
Payment TermsT/T,L/C
-
Supply Ability1pcs/7-11 weeks
Preforming Coil Forming Machine with Stator I.D Φ50-120mm O.D Φ80-160mm and Stack Height Range 40-150mm
Preforming Coil Forming Machine for 50-120mm ID Range
Product Description
Preforming Machine 50-120mm ID Range ISO/SGS Audit
Application
Suitable for stators used in single phase motors, three phase motors, compressor motors, starter motors, washing machine motors, air conditioners, and more.
For stator winding inserting machine inquiries, please provide:
- Stator lamination drawing
- Stator stack drawing
- Wire connection drawing
- Stator application details
Main Technical Features
| Model | SMT-YZ160 |
|---|---|
| Stator I.D | Φ50-120mm |
| Stator O.D | Φ80-160mm |
| Stack Height Range | 40-150mm |
| Displacement of cylinder | 20L |
| Power | 2.5Kw |
| Power supply | 3-Phase 380V/50Hz |
| Weight | 1050kg |
| Dimension | (L)1500×(W)1350×(H)1500mm |
Applications
Primarily used in new energy automobile motors, servo motors, generators, three-phase motors, pump motors, compressor motors, household appliance motors, and other induction motors. Our expertise includes stator and rotor core assembly, slot insulation, auto winding, auto inserting, auto fusing, and auto resin impregnation for various stator sizes and slot shapes.
Our Service
We prioritize both product quality and service to enhance your brand's global competitiveness. Whether you need machines, components, or OEM products, SMT Motor Equipment is your reliable partner. We welcome opportunities to establish long-term business relationships worldwide.
OEM/ODM Services
- Innovative technical team provides customized solutions
- Specialized after-sale service with door-to-door support
- Domestic and international service network for comprehensive support
- 24/7 customer service available through multiple communication channels
Production Line Profile
We offer technical consulting and turn-key project services for AC motors, DC motors, and BLDC motors, including cost evaluation, manufacturing know-how, staff training, and complete project solutions.
About Us
Suzhou Smart Motor Equipment Manufacturing Co., Ltd is a high-tech enterprise specializing in motor manufacturing equipment. With 150 employees, including 30+ engineers, and 20,000 square meters of production space, we design and manufacture complete production lines for various AC motors. Certified by ISO9001:2000 Quality Management System in 2012.
