Automatic Coil Lacing Machine with Stack Height 20~120mm Air Pressure 0.4MPa and Servo Driven System for AC Industrial Motor
-
Highlight
Stack Height 20~120mm Automatic Coil Lacing Machine
,Air Pressure 0.4MPa Stator Lacing Machine
,Servo Driven System Double Sided Lacing Machine
-
NameAutomatic Coil Lacing Machine Double Sides Lacing For AC Motor Industrial Motor
-
Stator O.D.≤Φ160mm
-
Stack Height20~120mm
-
Power Supply380V/50/60Hz 3.5Kw
-
Air Pressure0.4MPa
-
ColorWhite/Blue/Green
-
Place of OriginChina
-
Brand NameSMT
-
CertificationISO / SGS Audit, CE
-
Model NumberSMT - BZ51
-
Minimum Order Quantity1 Set
-
PriceNegotiable
-
Packaging DetailsWooden case suitable for sea transportation With a Sealing Bag.
-
Delivery Time60 - 80 days
-
Payment TermsT/T,L/C
-
Supply Ability1pcs / 60 - 80 days

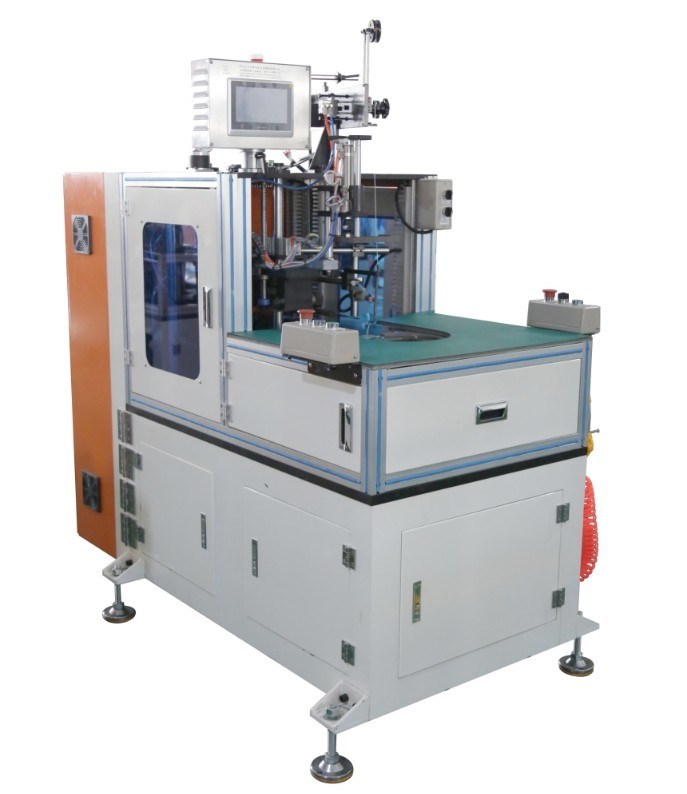

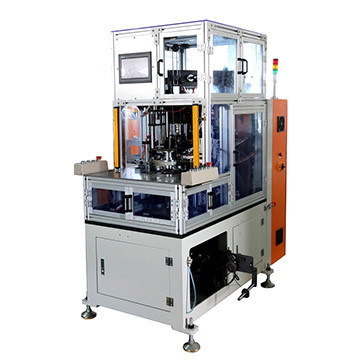

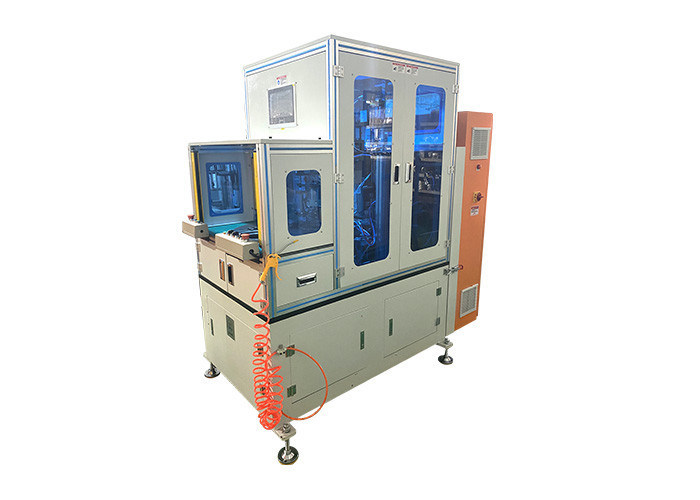

Automatic Coil Lacing Machine with Stack Height 20~120mm Air Pressure 0.4MPa and Servo Driven System for AC Industrial Motor
This automatic coil lacing machine features double-sided lacing capability specifically designed for AC motor industrial applications. The machine consists of machine body, needle, nozzle rotating part, needle fore and back movement, nozzle swing part, needle up and down movement part, stator indexing part, thread feeding, and thread cutting part.
| Model | SMT-BZ51 |
|---|---|
| Stack height | 17~100mm |
| Stator I.D | Φ25~ Φ100mm |
| Stator O.D | ≤Φ160mm |
| Height of overhang | ≤40mm |
| Lacing mode | Slot by slot/Interval slot/Fancy slot |
| Lacing speed | ≈0.6s/s |
| Power supply | 380V/50/60Hz 3.5Kw |
| Weight | ≈800Kg |
| Dimension | (L)1500×(W)650×(H)1700mm |
- Servo driven system with CNC control design and HIM program
- Servo system driven indexing with multiple lacing modes (slot lacing, interval lacing, fancy lacing)
- Servo-controlled main spindle with adjustable rotation speed
- Dual servo-driven needles for simultaneous upper and lower coil lacing
- Automatic thread feeding and cutting system (no knot tying required)
- Quick tooling change capability for stator stack length range of 50-130mm
- Adjustable lacing tension with production capacity ≤1s/slot
- Prevents copper wire snap and wire enamel breakage
- Primary qualification rate ≥98.5%, after rework ≥99.5%
- Safety grating protection system with two-hand operation requirement
- Industrial PLC with human-computer interface and horizontal frame-structure design
- Servo system provides precise control of lacing actions
- Programmable lacing methods (slot-by-slot, interval, fancy)
- Designed for large stators with high winding over-hang
- Movable tooling for easy stator loading/unloading, reducing labor intensity
Our company specializes in motor machinery and equipment production, including automatic winding machines, lacing machines, inserting machines, shaping machines, and forming machines. We incorporate advanced overseas technology and processes to enhance electromechanical fully automated factory production capacity, delivering stable quality and exceptional customer service.
Our service philosophy combines safety, professionalism, and efficiency with a commitment to technological advancement and customer-focused solutions.
With professional service, expert team, and reliable quality, we provide comprehensive technical consulting and turn-key project services for AC motor, DC motor, and BLDC motor manufacturing. Our services include motor cost evaluation, manufacturing know-how, staff training, and complete turn-key project implementation.
As a high-tech key enterprise in China, we specialize in designing, producing, and selling motor manufacturing equipment. Our company employs nearly 150 staff, including over 30 engineers and technicians, with a facility covering 20,000 square meters equipped with hundreds of advanced production and test equipment.
Our products are sold all over the world, you can rest assured.
