Automatic Servo Control Double Sides Lacing Stator Lacing Machine with Programmable Lacing Modes
-
Highlight

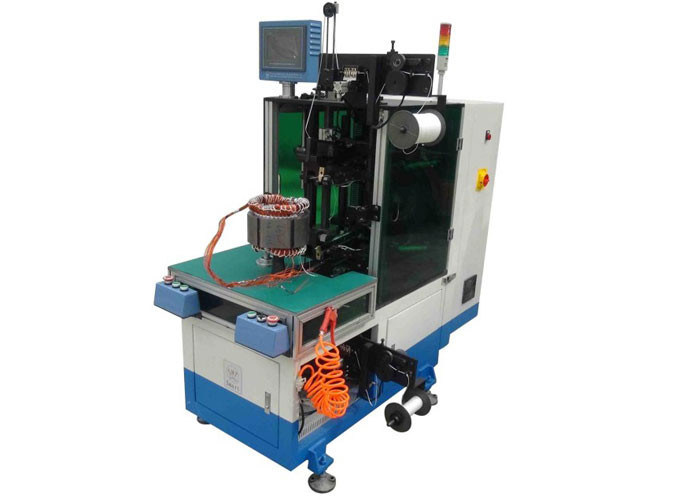

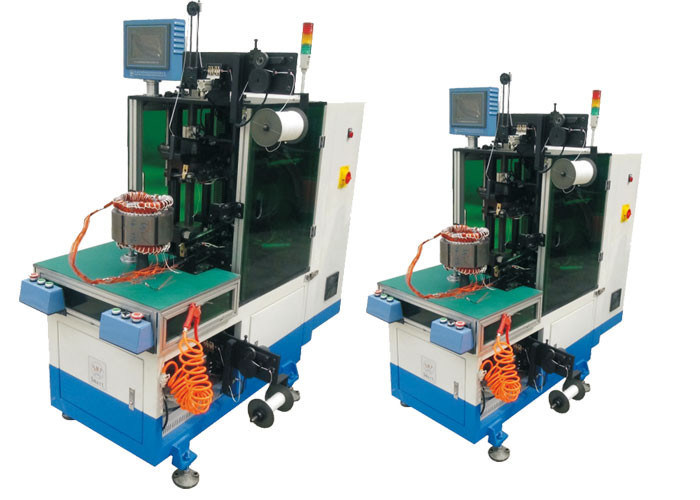

Automatic Servo Control Stator Lacing Machine
,Double Sides Lacing Stator Lacing Machine
,Programmable Lacing Modes Stator Lacing Machine
-
NameAutomatic Servo Double Sides Motor Stator Coil Turns Lacing Machine SMT - BZ190
-
ModelSMT-BZ190
-
Stator I.D.Φ110~ Φ210mm
-
Stator O.D.≤Φ300mm
-
Stack Height≤50mm
-
Power Supply380V/50/60Hz 3.5Kw
-
Slot Numbe8~48 Slots
-
Package1 Ply-Wooden Case
-
Place of OriginChina
-
Brand NameSMT
-
CertificationISO / SGS Audit
-
Model NumberSMT - BZ190
-
Minimum Order Quantity1 Set
-
PriceNegotiable
-
Packaging DetailsWooden Box Packaging
-
Delivery Time46 - 68 days
-
Payment TermsT/T,L/C
-
Supply Ability1pcs / 46 - 68 days
Automatic Servo Control Double Sides Lacing Stator Lacing Machine with Programmable Lacing Modes
The horizontal single side stator winding lacing machine adopts industrial PLC, human-computer interface and horizontal frame-structure design. The servo system machine accurately controls the lacing action. Different lacing methods such as slot-by-slot lacing, interval lacing and fancy lacing are programmable. This machine is suitable for large stators with high winding over-hang. The movable tooling allows for fast stator loading and unloading, effectively reducing labor requirements.
| Model | BZ190 |
|---|---|
| Stack height | 60-180mm |
| Stator I.D | 110-210mm |
| Stator O.D | ≤ 300mm |
| Height of Overhang | ≤50mm |
| Lacing mode | Slot by slot / interval slot/Fancy lacing |
| Lacing speed | 0.8s/s |
| Power supply | 380v/50/60Hz 3.5kw |
| Machine weight | About 900kg |
| Machine dimension (LxWxH) | 1500x 650x 1800mm |
- Servo driven system with CNC control design and HIM program
- Servo-driven indexing with programmable lacing modes (slot, interval, fancy)
- Servo-controlled main spindle with adjustable rotation speed
- Dual servo-driven needles for simultaneous upper/lower coil lacing
- Automatic thread feeding and cutting (no knots required)
- Quick tooling change capability (50-130mm stator stack length range)
- Adjustable lacing tension with production capacity ≤1s/slot
- Prevents copper wire snap and wire enamel damage
- Primary qualification rate ≥98.5%, after rework ≥99.5%
- Safety grating protection system with two-hand operation requirement
- Industrial PLC with human-computer interface and horizontal frame-structure design
- Programmable lacing methods (slot-by-slot, interval, fancy)
- Ideal for large stators with high winding over-hang
- Movable tooling for fast stator loading/unloading, reducing labor requirements
