Automatic Motor Stator Coil Forming Machine
Product Summary
Automatic Motor Stator Coil Forming Machine The Stator Coil Forming Machine is designed for efficient stator coil forming, featuring a hydraulic system drive with PLC control. Its flexible tooling design utilizes inner expansion principles for precise outer wrapping and edge forming of stator ...
Product Custom Attributes
Name:
Automatic Motor Stator Coil Forming Machine
Model:
ZJ160H
Stator I.D.:
80-120mm
Stator O.D.:
60-120mm
Spindle Motor:
Three-phase Motor+Phase Motor+AC Driver
Highlight:
automatic stator coil forming machine
,motor coil forming machine with warranty
,industrial stator winding forming equipment
Basic Properties
Place of Origin:
China
Brand Name:
SMT
Certification:
ISO / SGS Audit
Model Number:
SMT-ZJ160H
Trading Properties
Minimum Order Quantity:
1 Set
Price:
Negotiable
Packaging Details:
Plywood Box with sealing.
Delivery Time:
2-3 months
Payment Terms:
T/T,L/C
Supply Ability:
1pcs / 2-3 months
Product Description

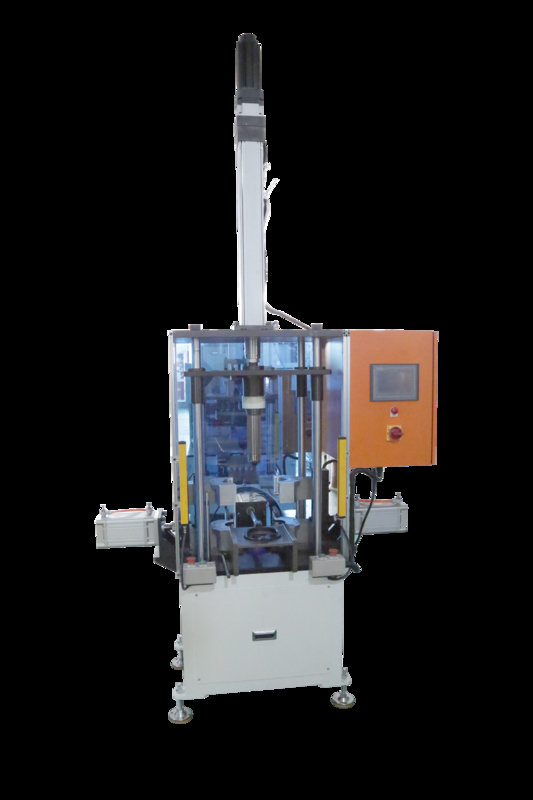

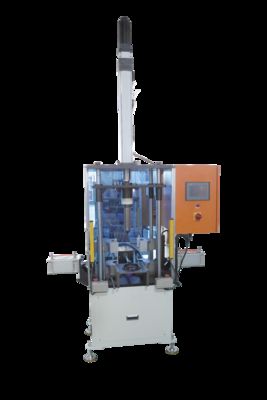

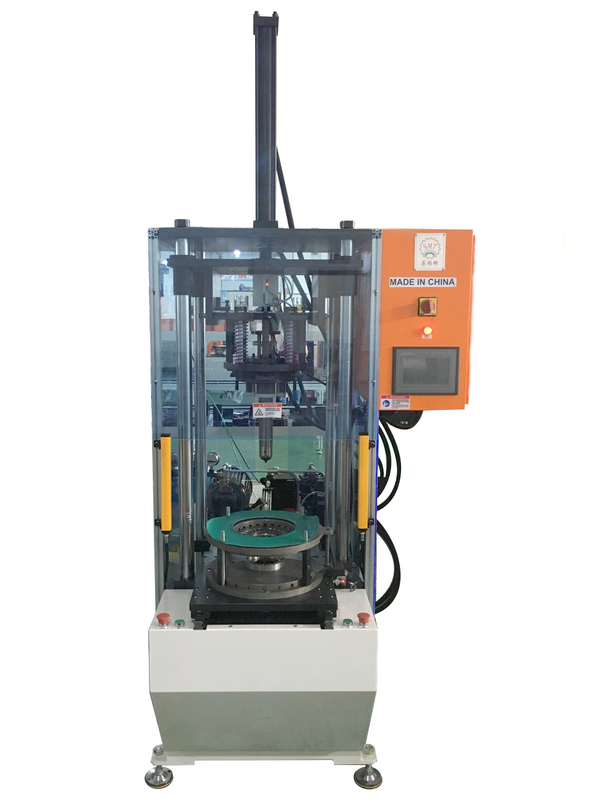

Automatic Motor Stator Coil Forming Machine
The Stator Coil Forming Machine is designed for efficient stator coil forming, featuring a hydraulic system drive with PLC control. Its flexible tooling design utilizes inner expansion principles for precise outer wrapping and edge forming of stator windings, ensuring proper dimensions after lacing. This high-performance machine delivers exceptional forming quality with outstanding efficiency.
Required Information for Quotation:
- Stator drawings (before and after forming)
- Stator O.D. (outer diameter)
- Stator I.D. (inner diameter)
- Stator stack height
- End coil dimensions
Main Technical Features
| Model | ZJ160H |
|---|---|
| Stack height | ≤190mm |
| Stator I.D. | 80-120mm |
| Stator O.D. | 60-120mm |
| Displacement of cylinder | 20F |
| Input | 380V/50/60Hz |
| Power supply | 1.5kw |
| Machine weight | About 1000kg |
| Machine dimensions (L×W×H) | 1610 × 1100 × 2310mm |
Applications
This machine is ideal for various motor types including new energy automobile motors, servo motors, generators, three-phase motors, pump motors, compressor motors, and household appliance motors. Our expertise covers complete motor production technology from stator and rotor core assembly to final forming processes.
Machine Main Characteristics
- Full hydraulic system with PLC programming
- Adjustable forming stack length via washer modification
- Prevents damage to slot paper and wedges
- Eliminates stator deformation and wire enamel breakage
- Production capacity: ≤13s/set (excluding loading/unloading)
- Primary qualification rate ≥99.5%, final rate ≥99.9% after rework
- Safety features include grating protection and two-hand start operation
OEM/ODM Services
Our technical team provides customized solutions to meet unique requirements, supported by comprehensive after-sales service including:
- Rapid door-to-door technical support
- Domestic and international service network
- 24/7 customer service availability
Production Line Profile
We offer complete motor manufacturing solutions including technical consulting, cost evaluation, staff training, and turn-key project implementation for AC/DC/BLDC motors.
