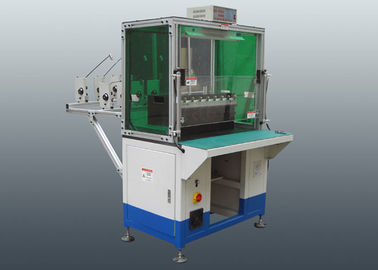

Multiple-Head Automatic Stator Winding Machine Motor Stator Wire Winding Machine SMT-DR08

Multiple-Head Automatic Stator Winding Machine Motor Stator Wire Winding Machine SMT-DR08

  • Multiple-Head Automatic Stator Winding Machine Motor Stator Wire Winding Machine SMT-DR08
Multiple-Head Automatic Stator Winding Machine Motor Stator Wire Winding Machine SMT-DR08
Product Details:
Place of Origin: China
Brand Name: SMT
Certification: ISO9001/SGS/CE
Model Number: SMT-DR08
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box Suitable for Your Machine.
Delivery Time: 5 - 8 weeks
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1pcs / 6 - 8 weeks
Contact Now
Detailed Product Description
Name: Multiple-Head Motor Stator Wire Winding Machine, Stator Coil Winding Machine Color: White
Non-Load Speed: ≤1500r/min Flier: 200mm
Transfer Number: 2-6pcs Power Supply: 220v/50/60Hz 0.75Kw
Weight: 850kg Dimension: (L)1500*(W)1200*(H)2100mm
Winding Head: 8pcs Air Pressure: ≥0.45MPa
Transfer Distance: ≥170mm
High Light:

ceiling fan coil winding machine


ceiling fan winding machine


Multiple Head Stator Winding Machine

Multiple-Head Automatic Stator Winding MachineMotor Stator Wire Winding Machine



(1) Main Technical Data


Model DR08
Wire Diameter 0.08-0.8mm
No - load Speed ≤3000r/min
Winding head 8pcs
Diameter of frame 20-120mm
Max.Transfer distance ≤250mm
Air Pressure ≥0.4MPa
Power Supply 220V/50/60Hz 0.75Kw
Weight 850kgs
Dimension (L)1500*(W)1200*(H)2100mm


(2) Application

1. Adopts PLC system and sets the procedures through the display screen, so to extremely strong the reliable operation of the whole machine.
2. Electric parts are designed in modularization, can reduce the maintenance cost.
3. The main driving operation uses the frequency-conversion speed adjustment mode, keeps the advantages of short driving chain, large startup torque, wide speed adjustment range, energy saving and low noise.
4. The winding distribution adopts the stepping motor and high-precision reduction gear.
5. It's can realize the continuous stepping stepless adjustment from 0.01mm, and bring the convenient adjustment, high distribution precision and large torque.
6. CNC winding transformer for cctv power distribution box has the machine tool wire storage automatic computation, automatic counting, automatic stop, stop memory and so on, simplifies the operation greatly.
7. It can realize the multi-wire multi-layer winding.

(3) Machine Main Function and Characteristic

Winding tooling: each machine has one set winding tooling and three vertical winding forms.
The whole set of tooling can be changed, and it takes about 15min.
The turntable is two stations structure. It adopts servo system to rotate and index transfer form.
Allow three wires winding simultaneously.
Main spindle is controlled by servo motor. The coil turn number accuracy is ±1 turn.
The working rotation speed can be set . Machine has no distinct vibration and noise.
Free of enamel damage and wire snap. Once the copper wire is run out, machine will automatically stop.
PLC can set turn number, winding speed, tooling sunk height, tooling sunk speed and winding direction.
X andY spindle of wire hooker and wire cutter adopts servo system. It can adjust the length of bridge wire and lead wire.
Tooling sunk adopts servo system. The max segment number of tooling sunk is 6.


(4) OEM/ODM

Taking full advantage of experienced engineers, skillful professionals, perfect equipment, strict manufacturing process control and wide coverage service net-work, we are dedicated to provide our customers with the optimized solution to electric motor manufacturing. So far, except the big market share in China, we export out machines to the worldwide countries such as USA, Italy, Australia, India, Brazil, Mexico, Turkey, Thailand, Vietnam, Iran, etc, and our machines share the great reputation among customers for it durable, reliable performance, reasonable price and good after-service.


(5) Production Line Profile


With good service, professional team and reliable quality, Nide provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.


(6) About Us


Located in Suzhou, a beautiful city of industry, commerce heart in Yangtze River Delta, Smart is specialized in the R&D, manufacturing and sales of induction motor machinery. Our machines produced in Suzhou factory are mainly applied to induction motors such as washing machine motor, air conditioner motor, pump motor, coil motor, three-phase motor, fan motor and compressor motor, etc.
