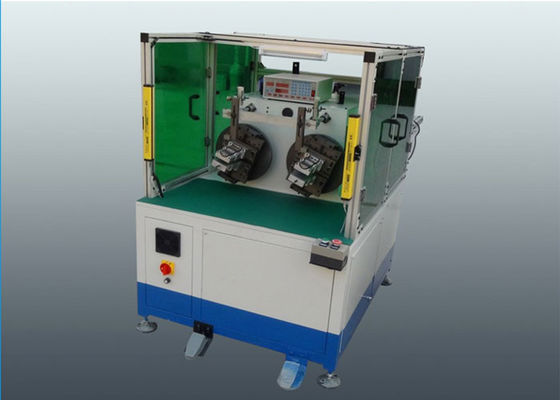

Auto Double-Station Horizontal Stator Winding Machine For Copper Wire SMT-WR100

Auto Double-Station Horizontal Stator Winding Machine For Copper Wire SMT-WR100

  • Auto Double-Station Horizontal Stator Winding Machine For Copper Wire SMT-WR100
Auto Double-Station Horizontal Stator Winding Machine For Copper Wire SMT-WR100
Product Details:
Place of Origin: China
Brand Name: SMT
Certification: ISO9001/SGS
Model Number: SMT-WR100
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 35 - 55 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1pcs / 35 - 55 days
Contact Now
Detailed Product Description
Name: Pump Motor Coil Winding Machine /two Stations Automatic Stator Winding Machine Color: White
Flier: 200mm Transfer Number: 2-6pcs
Power Supply: 220V/50/60Hz 1.5Kw Weight: 1600kg
Dimension: (L)1050*(W)1800*(H)1500mm Winding Head: 2pcs
Air Pressure: 0.4-0.7Mpa Wire Diameter: 0.15-0.8mm
High Light:

ceiling fan coil winding machine


electric motor coil winding machine


Horizontal Stator Winding Machine

Auto Double-station Horizontal Stator Winding Machine For Copper Wire



(1) Main Specification


Item Data
Model WR100
Wire diameter Φ0.15~Φ0.8mm
No-load Speed 800r/min
Suitable wire copper/aluminum
Max. Transfer distance ≤250mm
Diameter of frame Φ20-Φ120mm
Power supply 220V, single phase, 50/60Hz, 1.5kW
Machine weight About 1000kg
Machine dimension (LxWxH) 1050 x 1800x 1500mm


(2) Application:
The products are mainly applied in new energy automobile motor, servo motor, generator, three-phase motor, pump motor, compressor motor, household appliance motor and other induction motors. As a world leader, we have obvious advantages in stator and rotor core assembly, slot insulation, auto winding, auto inserting, auto fusing, auto resin impregnation and other motor production technology for different sizes and slot shape of stator.

(3) Machine main function and characteristic
Winding tooling: each machine has one set winding tooling and three vertical winding forms.
The whole set of tooling can be changed, and it takes about 15min.
The turntable is two stations structure. It adopts servo system to rotate and index transfer form.
Allow three wires winding simultaneously.
Main spindle is controlled by servo motor. The coil turn number accuracy is ±1 turn.
The working rotation speed can be set . Machine has no distinct vibration and noise.
Free of enamel damage and wire snap. Once the copper wire is run out, machine will automatically stop.
PLC can set turn number, winding speed, tooling sunk height, tooling sunk speed and winding direction.
X andY spindle of wire hooker and wire cutter adopts servo system. It can adjust the length of bridge wire and lead wire.
Tooling sunk adopts servo system. The max segment number of tooling sunk is 6.


(4) OEM/ODM Profile

Taking full advantage of experienced engineers, skillful professionals, perfect equipment, strict manufacturing process control and wide coverage service net-work, we are dedicated to provide our customers with the optimized solution to electric motor manufacturing. So far, except the big market share in China, we export out machines to the worldwide countries such as USA, Italy, Australia, India, Brazil, Mexico, Turkey, Thailand, Vietnam, Iran, etc, and our machines share the great reputation among customers for it durable, reliable performance, reasonable price and good after-service.


(5) Production Line Profile


With good service, professional team and reliable quality, Nide provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.

Auto Double-Station Horizontal Stator Winding Machine For Copper Wire SMT-WR100 0

(6) About Smart


Located in Suzhou, a beautiful city of industry, commerce heart in Yangtze River Delta, Smart is specialized in the R&D, manufacturing and sales of induction motor machinery. Our machines produced in Suzhou factory are mainly applied to induction motors such as washing machine motor, air conditioner motor, pump motor, coil motor, three-phase motor, fan motor and compressor motor, etc.
