| Place of Origin: | China |
| Brand Name: | SMT |
| Certification: | ISO9001/SGS |
| Model Number: | SMT-DR1200 |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Box |
| Delivery Time: | 4 - 9 weeks |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 1pcs / 4 - 9 weeks |
| Name: | Automatic Coil Winding Machine For Variety Of Copper Wire Gauge Stators/China Supplier | Color: | White |
|---|---|---|---|
| Swing Dia: | ≤900mm | Flier: | 200mm |
| Transfer Number: | 2-6pcs | Power Supply: | 220v/50/60Hz 3Kw |
| Weight: | 1000kg | Dimension: | 2300x 2200 X 2000mm |
| Winding Head: | 8pcs | Air Pressure: | 0.4-0.6MPa |
| High Light: | electric motor coil winding machine,ceiling fan winding machine,Gauge Stators Winding Machine |
||

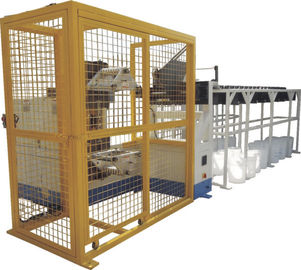

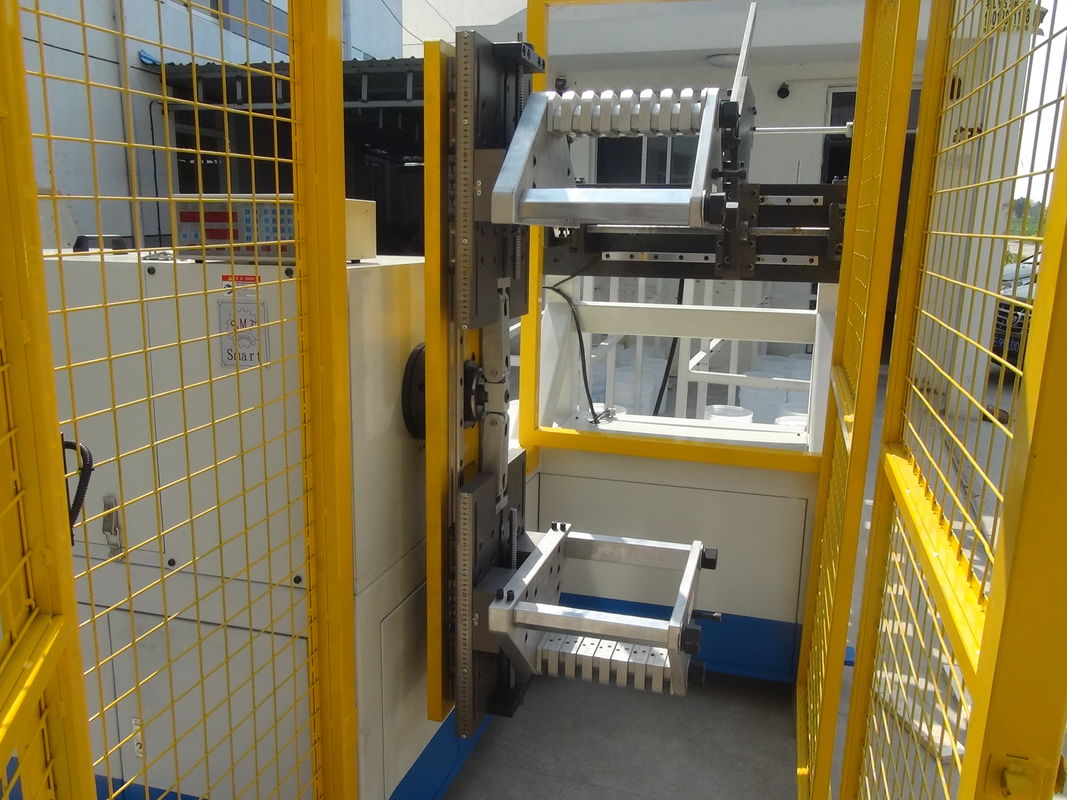

Full automatic Horizontal big wire electric motor stator toroid coil winding machine SMT-DR1200
(1) Main Features of Our Motor Equirpment
| Item | Data |
| Model | DR1200 |
| Swing Diameter | ≤900mm |
| Wire diameter | 0.4 - 1.5mm |
| Paralle Wire No. | ≤ 40pieces |
| Air Pressure | 0.4 -0- 0.6 MPa |
| Power supply | 220V/ 50/60Hz, 3kw |
| Machine weight | About 1100kg |
| Machine dimension (LxWxH) | 2300x 2200 x 2000mm |
Application
This automatic Big power motor stator Coil Winding wire Machine is suitable for winding the coil for big power motor.
Machine function and characteristic:
The automatic Big power motor Stator Coil Winding Machine adopts special purpose controller to achieve the function of auto winding, auto arraying, slot acrossing, auto getting through wax tube and output setting, etc.
The Big Stator Coil Winding Machine could produce different dimension coils which are for same series size stator by adjusting the tooling, and tension is adjustable.
