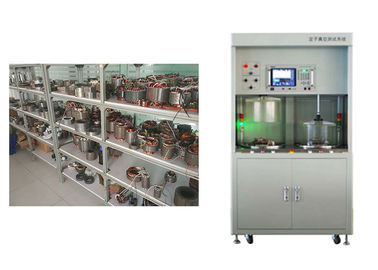

    Electric Motor Stator Testing Machine / Electronic Automatic Integrated Tester
  • Output Voltage
    100 - 1000VAC
  • Insulation Resistance
    1 - 500MΩ
  • Output Frequency
    50Hz / 60Hz
  • Weight
    35 Kg
  • Dimension
  • Place of Origin
  • Brand Name
  • Certification
    ISO / SGS Audit
  • Model Number
  • Minimum Order Quantity
  • Price
  • Packaging Details
    Electric Motor Stator Testing Machine is packed by wood case.
  • Delivery Time
    37 - 52 days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1pcs / 36 - 59 days

AC / DC Electric Motor Testing Equipment / Electronic Automatic Tester

AC / DC Electric Motor Testing Equipment / Electronic Automatic Tester



Suitable to test the stator of Y/∆ type 3 phase motor, single phase motor, brushless motor, car alternator motor, synchronous motor, multi-speed motor.


(1) Main Technical Information Of Our Product


Function ACW IR IW DCR Reverse Rotation L P-P ACW
AN96951A(F) —— —— —— Optional Optional
AN96951B(F) —— —— Optional Optional
AN96951M(F) Optional Optional
AN969-02071S(F) Stator test bench
AN969-01081B(F) 8 channels connection box
AN969-01161B(F) 16 channels connection box


(2) Description


1. Winding reverse: check if the stator winding is reversed

2. Multi-channel: Provide 8 channels configuration to 2 station mode, 16 channels configuration to single station mode

3. Large ACW capacity: Standard is 3KV/20mA, but can be up to 5Kv/100mA.

4. Large IW capacity: IW is improved to 0.1uF storage capacitor, stronger identification

5. Modify ACW mode: Case Hight voltage, wire high voltage and phase to phase mode

(3) Machine Main Characteristic


A station detects: vacuum between turns, voltage, insulation resistance, anti-embedded magnetic field rotation, once wiring complete all the testing;
Accurate and reliable: DSP technology, 14-bit, high-precision 16-bit AD converter, test consistency, repeatability and stability;
High speed and efficiency: all the testing process consists of a high-performance processing core of control, no multi-processor communications, high-speed production to meet the needs of the beat;
High integration: Cabinets beautiful atmosphere, compact structure, rational use of space, the components are integrated inside the cabinet, to avoid the piping, wiring connection problems caused by multi-machine combination, to maximize reduce equipment footprint, reduce staff travel distance and reduce Labor intensity.
Security is good: hand operation start button design, high sensitivity safety light curtain protection, effective protection of the operator and other personnel from mechanical damage and damage to high-voltage electric shock;
Vacuum generator speed: duplex test, each station is equipped with separate high-speed vacuum generator, vacuum gauge, a stator routine testing can be performed simultaneously with the vacuum generator, improve test beats, under pressure -60kpa 4-speed motor stator typical test time ≤10 seconds;


(4) Advantage


High-strength vacuum chamber: high structural strength of the vacuum chamber, which can meet between 0 ~ -90kPa turns testing requirements;
A multi-purpose machine: the vacuum can be used for the inter-turn test, can also be used between the vacuum turns + performance testing can also turn off the vacuum mode, as normally the provisions of sub-test equipment;
De-embedding Location: can accurately identify and locate the stator line package insert anti-poor, reduce the quality loss;
Simple: Design 10.4 inch TFT LCD and key operation, keyboard and mouse operation is relatively more direct and reliable; Windows interface, simple Chinese motor model entry, software operation, in line with computer software usage;
USB Data Support: Support U disk import, export model parameters, export test results; when more than one use in a device input model parameters, import through U disk to another device, such that multiple devices at the same time to create a new type of operation easier fast;
Serial Communication Support: Support RS232,485 serial communication, supports serial bar code scanner to read the data;
Easy maintenance: modular hardware design, the boot program self-diagnosis fault module can be 10 minutes quick fix; you can add or replace cards for device model upgrades, pneumatic components can be individually controlled movement, easy to debug and maintenance;


(5) Production Line Profile


With good service, professional team and reliable quality, Nide provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.
