Automatic Electric Motor Testing Equipment For Inductive Motors / Pump

Automatic Electric Motor Testing Equipment For Inductive Motors / Pump

  • High Light

    automatic motor winding machine

    ,

    induction motor winding machine

  • Name
    AC / DC Electric Motor Stator Tester / Integrated Testing / Fan Motor / Cooler Machine SMT-AN96951V
  • Output Voltage
    100 - 1000VAC
  • Insulation Resistance
    1 - 500MΩ
  • Output Frequency
    50Hz / 60Hz
  • Waveform Acquisition
    5kHz-40Mhz
  • Several Tests
    1-9 Times, Continuous
  • Weight
    About 32kg
  • Size
    431x245x550mm
  • Place of Origin
    China
  • Brand Name
    SMT
  • Certification
    ISO / SGS Audit
  • Model Number
    SMT-AN96951V
  • Minimum Order Quantity
    1pcs
  • Price
    Negotiable
  • Packaging Details
    Electric Motor Stator Testing Machine is Packed By Wood Box.
  • Delivery Time
    32 - 75 days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1pcs / 36 - 81 days

Automatic Electric Motor Testing Equipment For Inductive Motors / Pump

Automatic Electric Motor Testing Equipment For Inductive Motors / Pump

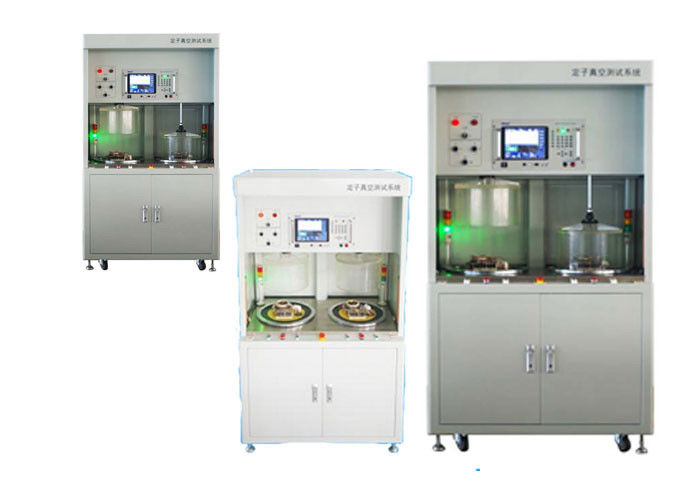

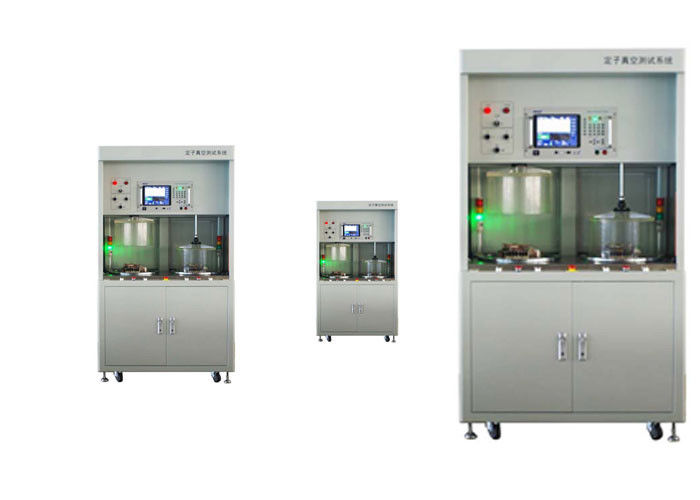

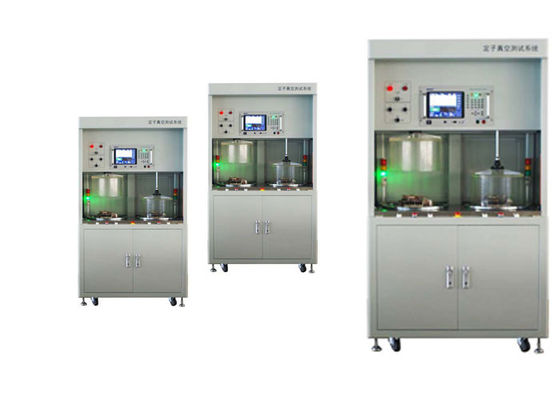

This tester is applied to integrated test varieties of compressor stator in refrigerator, air conditioner and heater etc. Its LCD shows all technical data which obtained by industrial control computer, which check and verify the quality of testing stators.
Do auto compensation to ambient temperature.
2 working stations
Systems switch device is made of imported high pressure vacuum steel spring relay
Flash-over test focuses on external slot lead.



(1) Main Technical Information Of Our Product



Function ACW IR IW DCR Reverse Rotation L P-P ACW
Model
AN96951A(F) —— —— —— Optional Optional
AN96951B(F) —— —— Optional Optional
AN96951M(F) Optional Optional
AN969-02071S(F) Stator test bench
AN969-01081B(F) 8 channels connection box
AN969-01161B(F) 16 channels connection box



(2) Description



1. Winding reverse: check if the stator winding is reversed

2. Multi-channel: Provide 8 channels configuration to 2 station mode, 16 channels configuration to single station mode

3. Large ACW capacity: Standard is 3KV/20mA, but can be up to 5Kv/100mA.

4. Large IW capacity: IW is improved to 0.1uF storage capacitor, stronger identification

5. Modify ACW mode: Case Hight voltage, wire high voltage and phase to phase mode


(3) Machine Main Characteristic



A station detects: vacuum between turns, voltage, insulation resistance, anti-embedded magnetic field rotation, once wiring complete all the testing;
Accurate and reliable: DSP technology, 14-bit, high-precision 16-bit AD converter, test consistency, repeatability and stability;
High speed and efficiency: all the testing process consists of a high-performance processing core of control, no multi-processor communications, high-speed production to meet the needs of the beat;
High integration: Cabinets beautiful atmosphere, compact structure, rational use of space, the components are integrated inside the cabinet, to avoid the piping, wiring connection problems caused by multi-machine combination, to maximize reduce equipment footprint, reduce staff travel distance and reduce Labor intensity.
Security is good: hand operation start button design, high sensitivity safety light curtain protection, effective protection of the operator and other personnel from mechanical damage and damage to high-voltage electric shock;
Vacuum generator speed: duplex test, each station is equipped with separate high-speed vacuum generator, vacuum gauge, a stator routine testing can be performed simultaneously with the vacuum generator, improve test beats, under pressure -60kpa 4-speed motor stator typical test time ≤10 seconds;



(4) Advantage


USB Data Support: Support U disk import, export model parameters, export test results; when more than one use in a device input model parameters, import through U disk to another device, such that multiple devices at the same time to create a new type of operation easier fast;
Serial Communication Support: Support RS232,485 serial communication, supports serial bar code scanner to read the data;
Easy maintenance: modular hardware design, the boot program self-diagnosis fault module can be 10 minutes quick fix; you can add or replace cards for device model upgrades, pneumatic components can be individually controlled movement, easy to debug and maintenance;



(5) Production Line Profile



With good service, professional team and reliable quality, Nide provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.
