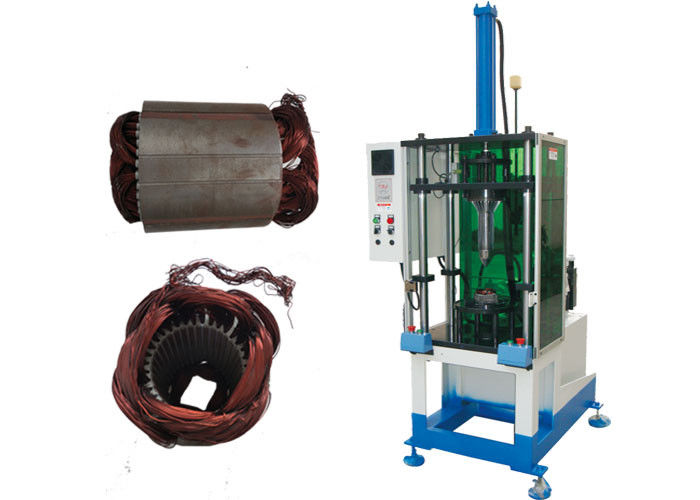

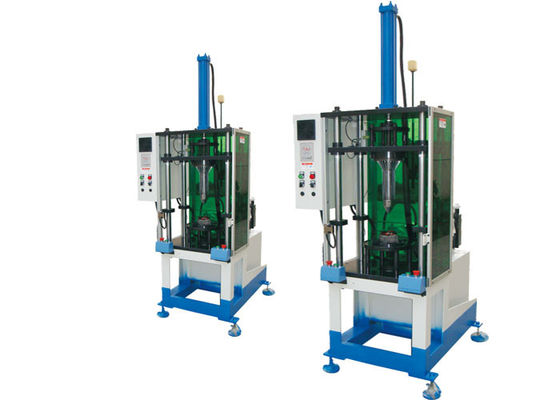

Automatic Compressor Motor Stator Coil Final Forming Machine

Automatic Compressor Motor Stator Coil Final Forming Machine

  • Automatic Compressor Motor Stator Coil Final Forming Machine
  • Automatic Compressor Motor Stator Coil Final Forming Machine
Automatic Compressor Motor Stator Coil Final Forming Machine
Product Details:
Place of Origin: China
Brand Name: SMT
Certification: ISO / SGS Audit
Model Number: SMT-KZ160
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 1pcs / 4 - 9 weeks
Payment Terms: T/T , L/C
Supply Ability: 1pcs / 4 - 9 weeks
Contact Now
Detailed Product Description
Name: Automatic Stator Coil Pro-Forming Machine After Lacing SMT - KZ160 Model: ZZ160
Stator I.D.: 30-100mm Stator O.D.: ≤160mm
Stack Height: 15- 100mm Power Supply: 380V/50/60Hz 3Kw
Machine Dimension (LxWxH): 1200x 7x 2200mm Machine Weight: About 800kg
High Light:

Pre - Forming Machine


Stator Coil Winding Machine

Automatic Compressor Motor Stator Coil Final Forming Machine / Coil Forming Machine SMT - KZ160



We have different kinds of motor making machine. Which we have exported to many countries. some factories make servo motor, some make external rotor motor. some make inner rotor motor. and We can do customized machine according to your requirment.
What our advantage is very good quality, and very low price. and we can make stator tooling service for our customer to save time .


(1) Main Technical Features


Model KZ160
Stack height 15- 100mm
Stator I.D 30-100mm
Stator O.D ≤160mm
Displacement of cylinder 20F
Input 380V/50/60Hz
Power supply 1.5kw
Machine weight About 800kg
Machine dimension (LxWxH) 1200x 7x 2200mm

(2) Application


The products are mainly applied in new energy automobile motor, servo motor, generator, three-phase motor, pump motor, compressor motor, household appliance motor and other induction motors. As a world leader, we have obvious advantages in stator and rotor core assembly, slot insulation, auto winding, auto inserting, auto fusing, auto resin impregnation and other motor production technology for different sizes and slot shape of stator.

Focusing on international trading, we have placed our priority on both product quality and service, which are the key elements that make your brand more competitive in the global market. If you are looking for machines, components, or OEM products, SMT motor Equipment will be your most reliable partner.

We are ready to establish a long business relationship with your esteemed company as a supplier, a partner and a friend. We warmly welcome you from worldwide.

(3) Machine Main Characteristic


This machine adopts whole hydraulic system and PCL program.

This machine can adjust the forming stack length by changing washer.

Both slot paper and wedge should not be damaged or turned over. The stator should not be deformation or stator lamination should not be upward. There is no wire enamel broken.

Production capacity ≤13s/set (exclude loading/unloading time)

Primary qualification rate ≥99.5%, after rework, the rate ≥99.9%

This machine adopts safety grating protection system. Operator need to stand when operating.

Machine adopts two hands simultaneously start button to ensure safety.

Efficiency stator coil forming machine,stator coil forming machine,coil forming machine work,coil forming machine used


(4) OEM/ODM


Innovational technical team provides perfect complete technical solutions, to satisfy every customer’s unique requirement;
Specialized after-sale team and engineers offer superior quality, rapid after-sale service door to door, to solve customer’s all after-sale problems;
Wide spreaded domestic after-sale service service network stations and overseas agencies ensure of powerful after-sale service;
Multi communication methods and full time customer service personnel dispel customer’s after-sale scruples 24 hours.


(5) Production Line Profile


With good service, professional team and reliable quality, SMT provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.

Automatic Compressor Motor Stator Coil Final Forming Machine 0

(6) About Us


Suzhou Smart motor Equipment Manufacturing Co.,Ltd is one of the high-tech key enterprises which specialize in designing, producing and selling motor manufacturing equipments in China. The company now has nearly 150 employees, including more than 30 engineers and technicians, with the building area about 20,000 square meters and a hundred sets of advanced production and test equipments. It is now qualified for designing and manufacturing full production line (starts from coil winding to final forming of a stator) for AC motors such as home appliance motor, industrial medium and small motors, pump motor, rolling door motor and automobile motor etc. In 2012, SMT passed the certification of ISO9001:2000 Quality Management System.
