Coil Forming Machine  / Automatic Stator Forming Machine

Coil Forming Machine / Automatic Stator Forming Machine

  • Highlight

    Pre - Forming Machine

    ,

    Stator Coil Winding Machine

  • Name
    Automatic Stator Coil Enter And Exit Station Middle - Forming Machine After Lacing SMT - ZJ190
  • Model
    ZJ190
  • Stator I.D.
    50-131mm
  • Stator O.D.
    ≤191mm
  • Stack Height
    16-100mm
  • Power Supply
    380V/50/60Hz 3Kw
  • Place of Origin
    China
  • Brand Name
    SMT
  • Certification
    ISO / SGS Audit
  • Model Number
    SMT - ZJ190
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Plywood Box with sealing.
  • Delivery Time
    41 - 82 days
  • Payment Terms
    T/T , L/C
  • Supply Ability
    1pcs / 39 - 82 days

Coil Forming Machine / Automatic Stator Forming Machine

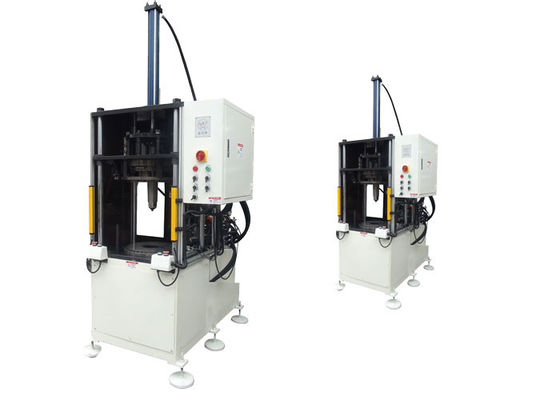

SMT - ZJ190 Coil Forming Machine / Automatic Stator Forming Machine





This machine is used for small to middle motor stator coil forming after coil insertion, could shape the stator end coil OD, ID and height approaching to required size via initial extruding, and good for the next coil lacing process,with single-tooth slot insulation protective device. It is driven by hydraulic system; PLC programming; whole schematic design of inner expansion, outer wrapping and edge forming ensures appropriate winding outside dimension. Machine has cuff supports and sliding table,which is convenient and safe for operation.



(1) Main Technical Date



Model ZZ190
Stator I.D. 50-131mm
Stator O.D. ≤191mm
Stack Height 20-160mm
Displacement of cylinder 20F
MOQ 1 Coil Forming Machine
Power Supply 380V/50/60Hz Kw
Weight 1500kgs
Machine dimension (L)1950*(W)1100*(H)2500mm



(2) Application



The products are mainly applied in new energy automobile motor, servo motor, generator, three-phase motor, pump motor, compressor motor, household appliance motor and other induction motors. As a world leader, we have obvious advantages in stator and rotor core assembly, slot insulation, auto winding, auto inserting, auto fusing, auto resin impregnation and other motor production technology for different sizes and slot shape of stator.

Focusing on international trading, we have placed our priority on both product quality and service, which are the key elements that make your brand more competitive in the global market. If you are looking for machines, components, or OEM products, SMT motor Equipment will be your most reliable partner.

We are ready to establish a long business relationship with your esteemed company as a supplier, a partner and a friend. We warmly welcome you from worldwide.


(3) Machine Main Characteristic



This machine adopts whole hydraulic system and PCL program.

This machine can adjust the forming stack length by changing washer.

Both slot paper and wedge should not be damaged or turned over. The stator should not be deformation or stator lamination should not be upward. There is no wire enamel broken.

Production capacity ≤13s/set (exclude loading/unloading time)

Primary qualification rate ≥99.5%, after rework, the rate ≥99.9%

This machine adopts safety grating protection system. Operator need to stand when operating.

Machine adopts two hands simultaneously start button to ensure safety.
