|Place of Origin:||China|
|Certification:||ISO / SGS Audit|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Plywood Box|
|Delivery Time:||2 - 3.6 months|
|Payment Terms:||T/T , L/C|
|Supply Ability:||1pcs / 1 - 3.5 month|
|Name:||Fan Motor Stator Coil Winding Shaping And Forming Machine||Model:||ZZ160|
|Stator I.D.:||50-100mm||Stator O.D.:||≤160mm|
|Machine Weight:||About 700kg||Machine Dimension (LxWxH):||650x 900 X 2300mm|
|Color:||White Or As Per Customer Requirement||Automatic Grade:||Full-Automatic|
Stator Coil Winding Machine,
electric motor winding equipment
Fan Motor Stator Coil Winding Shaping Coil Forming Machine SMT - ZZ160
Based on your production needs
1. Design the suitable product or production line for you ,OEM and ODM available
2. We have professional and rich experience engineers in the domestic and overseas.
3. We will wind and test the samples in our plant before delivery
1, Warranty Period: 1 year
2. Engineers available to service machinery overseas
(1) Main Technical Features
|Displacement of cylinder||20F|
|Machine weight||About 700kg|
|Machine dimension (LxWxH)||650x 900 x 2300mm|

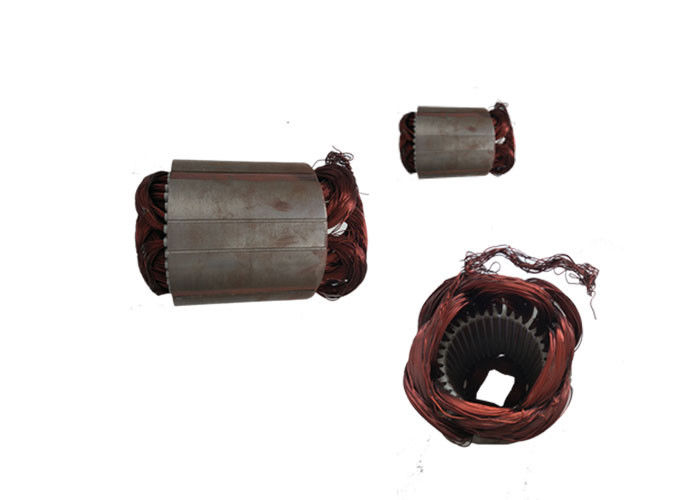

The products are mainly applied in new energy automobile motor, servo motor, generator, three-phase motor, pump motor, compressor motor, household appliance motor and other induction motors. As a world leader, we have obvious advantages in stator and rotor core assembly, slot insulation, auto winding, auto inserting, auto fusing, auto resin impregnation and other motor production technology for different sizes and slot shape of stator.
Focusing on international trading, we have placed our priority on both product quality and service, which are the key elements that make your brand more competitive in the global market. If you are looking for machines, components, or OEM products, SMT motor Equipment will be your most reliable partner.
We are ready to establish a long business relationship with your esteemed company as a supplier, a partner and a friend. We warmly welcome you from worldwide.
(3) Machine Main Characteristic
This machine adopts whole hydraulic system and PCL program.
This machine can adjust the forming stack length by changing washer.
Both slot paper and wedge should not be damaged or turned over. The stator should not be deformation or stator lamination should not be upward. There is no wire enamel broken.
Production capacity ≤13s/set (exclude loading/unloading time)
Primary qualification rate ≥99.5%, after rework, the rate ≥99.9%
This machine adopts safety grating protection system. Operator need to stand when operating.
Machine adopts two hands simultaneously start button to ensure safety.
Efficiency stator coil forming machine,stator coil forming machine,coil forming machine work,coil forming machine used
Innovational technical team provides perfect complete technical solutions, to satisfy every customer’s unique requirement;
Specialized after-sale team and engineers offer superior quality, rapid after-sale service door to door, to solve customer’s all after-sale problems;
Wide spreaded domestic after-sale service service network stations and overseas agencies ensure of powerful after-sale service;
Multi communication methods and full time customer service personnel dispel customer’s after-sale scruples 24 hours.
(5) Production Line Profile
With good service, professional team and reliable quality, SMT provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.
(6) About Us
Suzhou Smart motor Equipment Manufacturing Co.,Ltd is one of the high-tech key enterprises which specialize in designing, producing and selling motor manufacturing equipments in China. The company now has nearly 150 employees, including more than 30 engineers and technicians, with the building area about 20,000 square meters and a hundred sets of advanced production and test equipments. It is now qualified for designing and manufacturing full production line (starts from coil winding to final forming of a stator) for AC motors such as home appliance motor, industrial medium and small motors, pump motor, rolling door motor and automobile motor etc. In 2012, SMT passed the certification of ISO9001:2000 Quality Management System.
