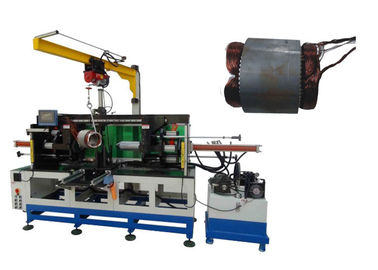

Stator Coil Pre - Middle - Final Shaping Machine for Motor Production SMT - ZJ300

Stator Coil Pre - Middle - Final Shaping Machine for Motor Production SMT - ZJ300

  • Stator Coil Pre - Middle - Final Shaping Machine for Motor Production SMT - ZJ300
  • Stator Coil Pre - Middle - Final Shaping Machine for Motor Production SMT - ZJ300
Stator Coil Pre - Middle - Final Shaping Machine for Motor Production SMT - ZJ300
Product Details:
Place of Origin: China
Brand Name: SMT
Certification: ISO / SGS Audit
Model Number: SMT - ZJ300
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 1 Ply-Wooden Case With a Plastic Bag.
Delivery Time: 42 - 79 days
Payment Terms: T/T , L/C
Supply Ability: 1pcs / 42 - 79 days
Contact Now
Detailed Product Description
Name: Stator Coil Pre - Middle - Final Shaping Machine For Motor Production Model: ZJ300
Stator I.D.: 110-210mm Stator O.D.: ≤300mm
Displacement Of Cylinder: 40L After-sales Service: Overseas Service Available
Specification: Customized Vertical Shaping: Stator Shaping
High Light:

Pre - Forming Machine

,

electric motor winding equipment

Stator Coil Pre - Middle - Final Shaping Machine for Motor Production SMT - ZJ300

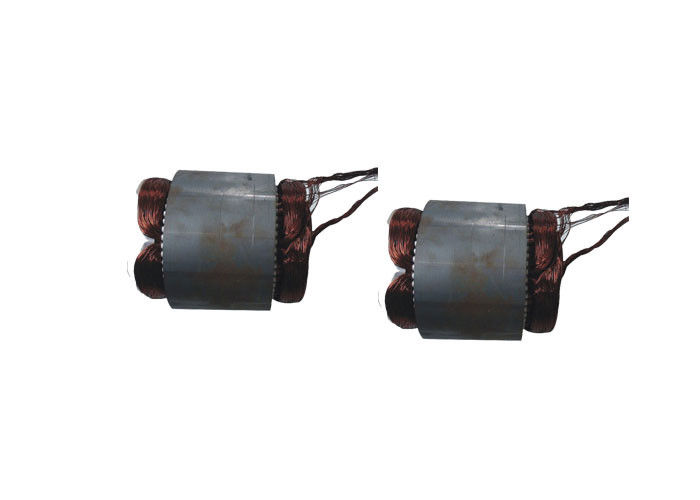

With high technology and stable performance, this final forming machine is of highly efficiency and qualified forming. it is equipped with and driven by the hydraulic system. The displacement of cylinder is 20L/min. The machine tooling design adopts flexible principles of inner expansion. The outer wrapping and edge forming form the stator winding. It can ensure appropriate winding outside dimension after lacing.

Required information for quotation: stator drawing before forming and after forming, including stator O.D, stator I.D, stator stack height, and end coil dimension.



(1) Main Technical Date



Model ZJ300
Stack height 70- 250mm
Stator I.D 110-210mm
Stator O.D ≤300mm
Displacement of cylinder 40L
Power supply 380V/50/60Hz 4.2Kw
Machine weight About 2300kg
Machine dimension (LxWxH) L3726x W1251 x H2111mm



(2) Application



The products are mainly applied in new energy automobile motor, servo motor, generator, three-phase motor, pump motor, compressor motor, household appliance motor and other induction motors. As a world leader, we have obvious advantages in stator and rotor core assembly, slot insulation, auto winding, auto inserting, auto fusing, auto resin impregnation and other motor production technology for different sizes and slot shape of stator.

Focusing on international trading, we have placed our priority on both product quality and service, which are the key elements that make your brand more competitive in the global market. If you are looking for machines, components, or OEM products, SMT motor Equipment will be your most reliable partner.

We are ready to establish a long business relationship with your esteemed company as a supplier, a partner and a friend. We warmly welcome you from worldwide.


(3) Machine Main Characteristic



This machine adopts whole hydraulic system and PCL program.

This machine can adjust the forming stack length by changing washer.

Both slot paper and wedge should not be damaged or turned over. The stator should not be deformation or stator lamination should not be upward. There is no wire enamel broken.

Production capacity ≤13s/set (exclude loading/unloading time)

Primary qualification rate ≥99.5%, after rework, the rate ≥99.9%

This machine adopts safety grating protection system. Operator need to stand when operating.

Machine adopts two hands simultaneously start button to ensure safety.

Efficiency stator coil forming machine,stator coil forming machine,coil forming machine work,coil forming machine used



(4) OEM/ODM



Innovational technical team provides perfect complete technical solutions, to satisfy every customer’s unique requirement;
Specialized after-sale team and engineers offer superior quality, rapid after-sale service door to door, to solve customer’s all after-sale problems;
Wide spreaded domestic after-sale service service network stations and overseas agencies ensure of powerful after-sale service;
Multi communication methods and full time customer service personnel dispel customer’s after-sale scruples 24 hours.



(5) Production Line Profile



With good service, professional team and reliable quality, SMT provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.

Stator Coil Pre - Middle - Final Shaping Machine for Motor Production SMT - ZJ300 0

(6) About Us



Suzhou Smart motor Equipment Manufacturing Co.,Ltd is one of the high-tech key enterprises which specialize in designing, producing and selling motor manufacturing equipments in China. The company now has nearly 150 employees, including more than 30 engineers and technicians, with the building area about 20,000 square meters and a hundred sets of advanced production and test equipments. It is now qualified for designing and manufacturing full production line (starts from coil winding to final forming of a stator) for AC motors such as home appliance motor, industrial medium and small motors, pump motor, rolling door motor and automobile motor etc. In 2012, SMT passed the certification of ISO9001:2000 Quality Management System.
