Automatic Motor Servo Stator Slot Insulation Paper Inserting Machine SMT - CW200

Automatic Motor Servo Stator Slot Insulation Paper Inserting Machine SMT - CW200

  • High Light

    paper inserter


    slot insulation machine


    Servo Paper Inserting Machine

  • Name
    Automatic Slot Insulation Paper Inserting Machine For Stator
  • Core Length
  • Stator I.D.
    80 -150mm
  • Stator O.D.
  • Height Of Edge Folded
  • Power Supply
    380V/50/60Hz 0.75Kw
  • Machine Size
    Middle Size
  • Customized Service
  • Place of Origin
  • Brand Name
  • Certification
    ISO/SGS Audit
  • Model Number
  • Minimum Order Quantity
    1 Set
  • Price
  • Packaging Details
    Plywood Box
  • Delivery Time
    38 - 68 days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1pcs / 38 - 68 days

Automatic Motor Servo Stator Slot Insulation Paper Inserting Machine SMT - CW200

0.75Kw Automatic Slot Insulation Machine for Stator SMT - CW200



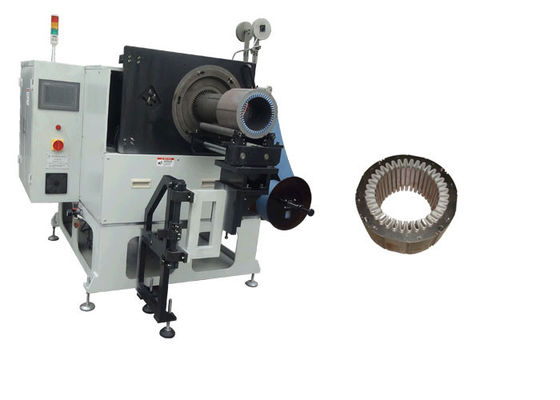

This machine is specially designed for the inserting of the starter motor armature insulating paper, after roasting the insulating paper at high temperature, inserting it into the armature to make the shape of insulating paper more stable and match with the armature slot batter. Armature calibrate adopts mechanical model; Paper feed length adopts cylinder clamped-in style with simple structure. This machine adopts PLC programme control, operation interface touch screen display and easy to debug.



(1) Main Technical Data


Model CW200
Core length 60-190mm
Stator I.D. 80 -150mm
Stator O.D. ≤210mm
Height of Edge Folded 3-7mm
Insulation paper's thickness ≤0.35mm
Efficiency 0.7-1 s/s
Power Supply 380V/50/60Hz 0.75Kw
Weight 550kg
Machine dimension (L)1100*(W)900*(H)1500mm


(2) Application


1. Suitable exclusively for large and medium-sized motors,inserting insulation paper automatically from bottom of stator slot;

2. Automatic paper feeding,edge folding and forming;

3. Characterized by low noise, fast speed, excellent forming,etc;

4. Slot number change is controlled by electric;

5. Interval slot inserting and skip slot inserting could be at option;

6. It is convenient and easy for different slot number stator production and changing tooling;

7. Especially suitable for generator,deep pump motor, three phase machine,etc.

(3) Machine Main Characteristic


It is a special design specific to different design or different sizes of slot; can finish insulation paper insertion at a time; automatic adjustment to perimeter, automatic cutting paper, automatic hemming and automatic inserting when inserting to various or different-sized slot; use servo paper inserting machine to feed paper and settle breadth; interpersonal interface sets required specific parameter; forming mould is adjustable to different sizes of slot automatically; characterized by simple operation, low noise, fast speed and high automaticity.
The equipment adopts programmable terminal, also called touched screen, that can set and display necessary information, it is easy to operate and reliable.


(4) OEM/ODM


Innovational technical team provides perfect complete technical solutions, to satisfy every customer’s unique requirement;
Specialized after-sale team and engineers offer superior quality, rapid after-sale service door to door, to solve customer’s all after-sale problems;
Wide spreaded domestic after-sale service service network stations and overseas agencies ensure of powerful after-sale service;
Multi communication methods and full time customer service personnel dispel customer’s after-sale scruples 24 hours.


(5) Production Line Profile


With good service, professional team and reliable quality, Nide provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.
