Paper Insert Slot Insulation Machine For Washing Machine / Fan / Pump Stator

Paper Insert Slot Insulation Machine For Washing Machine / Fan / Pump Stator

  • Paper Insert Slot Insulation Machine For Washing Machine / Fan / Pump Stator
Paper Insert Slot Insulation Machine For Washing Machine / Fan / Pump Stator
Product Details:
Place of Origin: China
Brand Name: SMT
Certification: ISO/SGS Audit
Model Number: SMT-CW300
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Inner preservative film,outer regeneration plywood case package suitable for air and sea transportation, effective for protecting the goods.
Delivery Time: 40 - 65 days
Payment Terms: T/T, L/C
Supply Ability: 1pcs / 40 - 65 days
Contact Now
Detailed Product Description
Name: Slot Insulation Paper Insertion Machine For Washing Machine / Fan / Pump Stator I.D.: 100-200mm
Stator O.D.: ≤300mm Height Of Edge Folded: 3-10mm
Power Supply: 0.75Kw Warranty: 12 Months
Appropriate Wire: 0.2~1.2mm After-sales Service Provided: Online Support
Function: Motor Manufacturing
High Light:

electric motor winding equipment

,

slot insulation machine

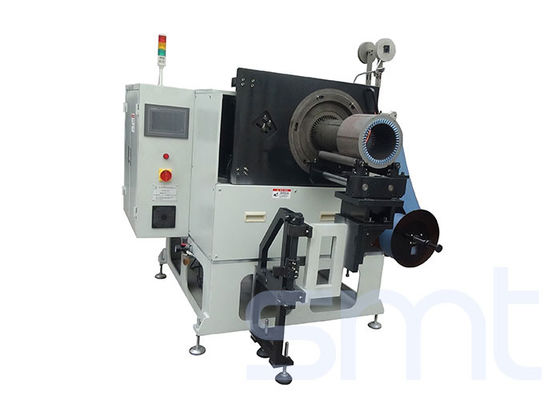

SMT - CW300 Induction Motor Winding Machine for Washing Machine / Fan / Pump



This slot insulation paper inserting machine is specially designed for slot cell paper insertion of large and medium size industrial motor stator. All procedure are done by the machine automatically except to put on and take off stator. The production cost will be highly reduced by decreasing the material loss and labor cost.

(1)Introduction and features

1. The Stator slot Insulation Paper Inserting Machine adopts horizontal structure,

2. Suitable for large and medium-size electric motors,

3. Inserting insulation paper automatically from bottom of stator slot;

4. Automatic paper feeding, edge folding and forming;

5. Slot number change is controlled by electric;

6. Interval slot inserting and skip slot inserting could be at option;

7. Characterized by fast speed, excellent forming, low noise ,etc.

8. It is convenient and easy for different slot number stator production and changing tooling.

9. The cutting edge of insulation paper should be neat, no damage, and free of burr.

10. The stator should not be deformation and stator lamination should not be upward resulting from paper inserting.

11. Adapt servo motor for indexing, paper feeding and paper pushing.

(2) Main Technical Parameter:

Product name: Industrial Motor Slot cell Insulation Paper Insertion Machine
Stack height: 50- 300mm
Stator I.D: 70~150mm
StatorO.D: MAX 320mm
Height of edge folded: 4mm-7mm
Paper thickness: 0.188-0.35mm
Cycle time: 1-1.5s/s
Power supply: 380V 50/60hz 3.5kw
Weight: about 500kg
Dimension: (L)1100*(W)900*(H)1500mm
Slot No.: can be settable

(3) Application:

The stator slot insulation paper insertion machine is suitable for large and medium-size motors, especially suitable for three phase machine, deep water pump motor, generator, submersible motor, etc..
