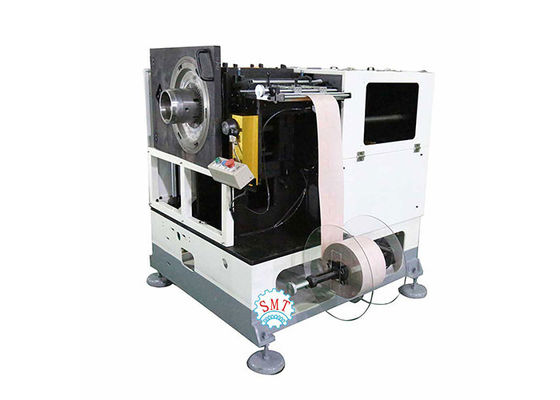

Large And Medium Industrial Motor Stator Slot Insulation Paper Inserting Machine

Large And Medium Industrial Motor Stator Slot Insulation Paper Inserting Machine

  • Large And Medium Industrial Motor Stator Slot Insulation Paper Inserting Machine
Large And Medium Industrial Motor Stator Slot Insulation Paper Inserting Machine
Product Details:
Place of Origin: China
Brand Name: SMT
Certification: ISO/SGS Audit
Model Number: SMT-CW300
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Inner preservative film,outer regeneration plywood case package suitable for air and sea transportation, effective for protecting the goods.
Delivery Time: 40 - 65 days
Payment Terms: T/T, L/C
Supply Ability: 1pcs / 40 - 65 days
Contact Now
Detailed Product Description
Name: Slot Insulation Paper Insertion Machine Stator I.D.: 100-200mm
Stator O.D.: ≤300mm Height Of Edge Folded: 3-10mm
Power Supply: 0.75Kw Warranty: 12 Months
Appropriate Wire: 0.2~1.2mm OEM: Avaliable
Color: Request
High Light:

electric motor winding equipment

,

slot insulation machine

,

OEM Paper Inserting Machine

Automatic motor stator insulation paper inserting machine for generator and deep pump motor



1. Model No.: CW300
2. It is suitable exclusively for big size motors.
3. This machine is characterized by low noise, fast speed, excellent forming,
4. it is convenient and easy for different slot number stator production and changing tooling.
5. It is suitable for generator, deep pump motor, three phase machine, etc..


It is suitable exclusively for big size, long stack length, big power motors, especially suitable for generator, deep pump motor,three phase machine, etc..



(1) Main Technical Data



Product name stator paper inserting mahcine
Stator ID 70-150mm
Stator height 80-250mm
Stator OD ≤300mm
Height of edge folded 2-4mm/4-7mm
insulation paper's thickness 0.188~0.35mm
Tack time 1.2 S/slot
Power 380V 50/60HZ 3.5KW
Dimension 1600*1400*1500mm
Weight 600KG

(2) Application



1. Suitable exclusively for large and medium-sized motors,inserting insulation paper automatically from bottom of stator slot;

2. Automatic paper feeding,edge folding and forming;

3. Characterized by low noise, fast speed, excellent forming,etc;

4. Slot number change is controlled by electric;

5. Interval slot inserting and skip slot inserting could be at option;


(3) Machine Main Characteristic



It is a special design specific to different design or different sizes of slot; can finish insulation paper insertion at a time; automatic adjustment to perimeter, automatic cutting paper, automatic hemming and automatic inserting when inserting to various or different-sized slot; use servo paper inserting machine to feed paper and settle breadth; interpersonal interface sets required specific parameter; forming mould is adjustable to different sizes of slot automatically; characterized by simple operation, low noise, fast speed and high automaticity.
The equipment adopts programmable terminal, also called touched screen, that can set and display necessary information, it is easy to operate and reliable.



Application of the stator paper inserting mahcine

The automatic stator insulationg paper insertingm machine is suitable exclusively for large and medium-size motors, especially suitable for generator, deep pump motor, three phase machine, etc.

 Machine main function and characteristic of the stator paper inserting mahcine

The type of paper inserting machine is Horizontal

Inserting insulation paper automatically from bottom of stator slot,

Automatic paper feeding and edge folding and forming

The slot number change is controlled by electric;

interval slot inserting and skip slot inserting could be at option;

It is convenient and easy for different slot number stator production and changing tooling.
