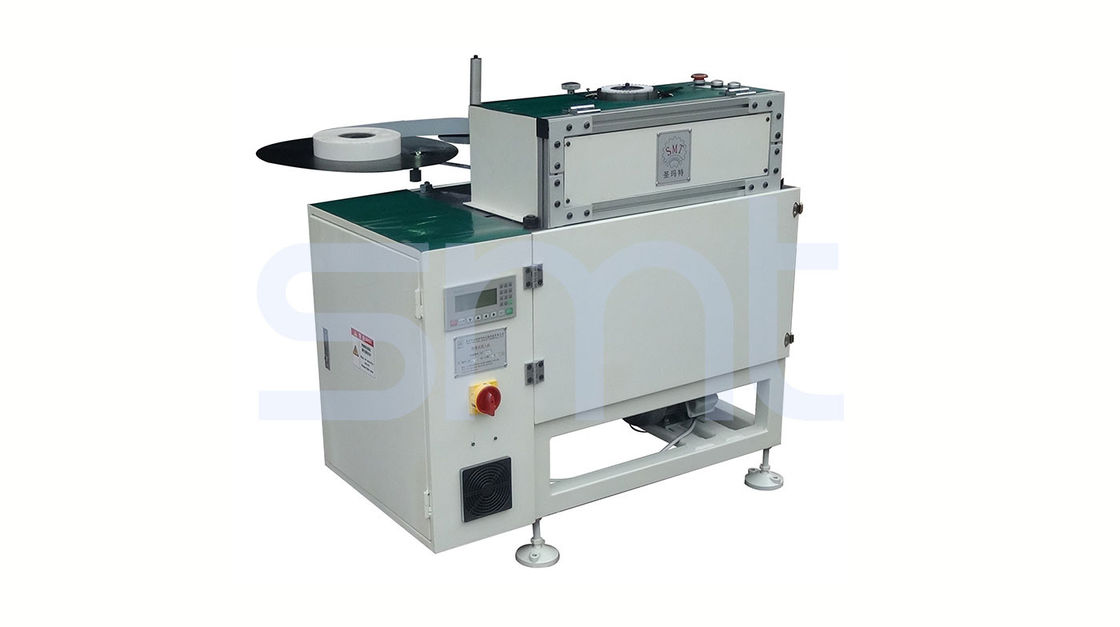

Automatic Stator Slot Insulation Paper Inserting Machine for Induction Motor Three Phase Motor Winding

Automatic Stator Slot Insulation Paper Inserting Machine for Induction Motor Three Phase Motor Winding

  • High Light

    electric motor winding equipment

    ,

    paper inserter

    ,

    Induction Motor Paper Inserting Machine

  • Name
    Induction Motor Servo Slot Insulation Paper Inserting Machine
  • Model
    SMT-C100
  • Stack Height
    10~90mm
  • Cuff Height
    2.5~4mm
  • TAKT Time
    ≈0.45s/s
  • Weight
    ≈400Kg
  • Warranty
    1year
  • Type
    Paper Cutting Machine
  • Place of Origin
    China
  • Brand Name
    SMT
  • Certification
    ISO / BV / SGS
  • Model Number
    C100
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Machine "Simple Stator Slot Insulation Machine for Micro Table Fan Motors" is packaged with plywood cases. Its dimension is according to acutal product and accessories size
  • Delivery Time
    32-45 days after placing order
  • Supply Ability
    11 Set/Sets per Month

Automatic Stator Slot Insulation Paper Inserting Machine for Induction Motor Three Phase Motor Winding

Automatic Slot insulation paper inserting machine for electric motor stator





1. A special design specific to different design or different sizes of slot;
2. can finish insulation paper insertion at a time; automatic adjustment to perimeter , automatic cutting paper, automatic hemming and automatic inserting when inserting to various or different-sized slot;
3. use servo paper inserting machine to feed paper and settle breadth;
4. interpersonal interface sets required specific parameter;
5. forming mold is adjustable to different sizes of slot automatically;
6. characterized by simple operation, low noise, fast speed and high automaticity.



1. Introduction:

The slot insulation paper inserting machine is used for electric motor stator manufacturing, suitable for different design or different sizes of stator slot. It not only has the insulation paper forming function, but also can push the clamped insulation paper into a groove of the motor stator, has efficient automatic performance, and puts an end to the low efficiency working manner of manual insertion.

2. Working principle:

The automatic insulation paper inserting machine is mainly includes a paper feeding device, an indentation device and a cutting device. A insulation paper guide slot is arranged between the indentation device and the cutting device; a paper pushing mechanism is matched with the cutting device; after the paper feeding device sends out a piece of insulation paper, the insulation paper passes through the indentation device, the paper guide slot and the cutting device sequentially, and then is pushed out of the cutting device by the paper pushing mechanism; the insulation paper finally enters the motor stator clamped on a stator clamping workbench on a side surface of the working platform; the stator clamping workbench is connected with the working platform via a rotating shaft, and can turn over around the rotating shaft.

3. Features:

It can finish insulation paper insertion at a time;

Automatic adjustment to perimeter, automatic cutting paper, automatic hemming and automatic inserting when inserting to various or different-sized slot;

Use servo paper inserting machine to feed paper and settle breadth;

Interpersonal interface sets required specific parameter;

Forming mould is adjustable to different sizes of slot automatically;

The equipment adopts programmable terminal, also called touched screen, that can set and display necessary information,

Simple operation and reliable, low noise, fast speed and high automaticity.

4. Technical data:

Product name: Automatic stator insulation paper inserting machine
Stator stack length: 20~160mm
Stator OD: max 190mm
Stator ID: 50~120mm
Folding height/width: 2~4mm/4~7mm
Insulation paper thickness: 0.188~0.35mm
Efficiency: ≈0.8s/s
Power: 380V/50/60HZ 0.75KW
Machine weight: ≈250kg
Machine dimension: (L) 1200*(W) 650*(H) 1200mm

5. Application:

This Stator Insulation Paper Inserting Machine is suitable for single phase motor, three phase motor, induction motor, washing machine motor, fan motor, gasoline generator, etc.

Automatic Stator Slot Insulation Paper Inserting Machine for Induction Motor Three Phase Motor Winding 0



(6) Company Profile - Suzhou Smart motor Equipment Manufacturing Co.,Ltd



Suzhou Smart motor Equipment Manufacturing Co.,Ltd is a Chinese manufacturer, which is specialize in R&D, manufacturing and selling automatic equipments for motor production as well as exporting equipments to the world. The company now has nearly 81 employees including more than 10 engineers and technicians, with the building area about 5,000 square meters and hundered sets of advanced production and equipments under testing.
