High Efficiency Alternator Stator Equipment / Motor Stator Insulation Paper Inserter

High Efficiency Alternator Stator Equipment / Motor Stator Insulation Paper Inserter

  • High Light

    electric motor winding equipment

    ,

    paper inserter

    ,

    High Efficiency Alternator Stator Equipment

  • Name
    Alternator Stator Equipment Stator Slot Insulation Paper Inserting Machine
  • Stator I.D.
    50-120mm
  • Stator O.D.
    ≤190mm
  • Efficiency
    0.5s/s
  • Height Of Edge Folded
    2-5mm
  • After-sales Service
    Engineers Available To Service
  • Condition
    New
  • Place of Origin
    China
  • Brand Name
    SMT
  • Certification
    ISO/SGS Audit
  • Model Number
    SMT-C100
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Plywood Case With Plastic Bag
  • Delivery Time
    52 - 80 days
  • Payment Terms
    T/T, L/C, D/A
  • Supply Ability
    1pcs / 52 - 73 days

High Efficiency Alternator Stator Equipment / Motor Stator Insulation Paper Inserter



Alternator Stator Equipment / Motor Stator Insulation Paper Inserter



Slot paper inserting machine is specially designed for automatically inserting insulation papers into stator slots. All the actions such as paper feeding, forming, folding, inserting and stator rotating are automatic.
Range of application: industrial motors, air conditioner motors, washer motors, electrical fan motors, pump motors and so on.



(1) Main Technical Data



Model C100
Core Length 10-90mm
Stator I.D 20-80mm
Stator O.D ≤140mm
Height of edge folded 2-4mm
Insulation paper’s thickness ≤0.35mm
Efficiency 0.5s/s
Power supply 380V, 50/60Hz, 0.75kW
Weight 400kg
Dimension 1100*650*1000mm



(2) Application


1. Suitable exclusively for large and medium-sized motors,inserting insulation paper automatically from bottom of stator slot;

2. Automatic paper feeding,edge folding and forming;

3. Characterized by low noise, fast speed, excellent forming,etc;

4. Slot number change is controlled by electric;

5. Interval slot inserting and skip slot inserting could be at option;

6. It is convenient and easy for different slot number stator production and changing tooling;

7. Especially suitable for generator,deep pump motor, three phase machine,etc.

High Efficiency Alternator Stator Equipment / Motor Stator Insulation Paper Inserter 0
(3) Machine Main Characteristic



It is a special design specific to different design or different sizes of slot; can finish insulation paper insertion at a time; automatic adjustment to perimeter, automatic cutting paper, automatic hemming and automatic inserting when inserting to various or different-sized slot; use servo paper inserting machine to feed paper and settle breadth; interpersonal interface sets required specific parameter; forming mould is adjustable to different sizes of slot automatically; characterized by simple operation, low noise, fast speed and high automaticity.
The equipment adopts programmable terminal, also called touched screen, that can set and display necessary information, it is easy to operate and reliable.



(4) OEM/ODM



Innovational technical team provides perfect complete technical solutions, to satisfy every customer’s unique requirement;
Specialized after-sale team and engineers offer superior quality, rapid after-sale service door to door, to solve customer’s all after-sale problems;
Wide spreaded domestic after-sale service service network stations and overseas agencies ensure of powerful after-sale service;
Multi communication methods and full time customer service personnel dispel customer’s after-sale scruples 24 hours.

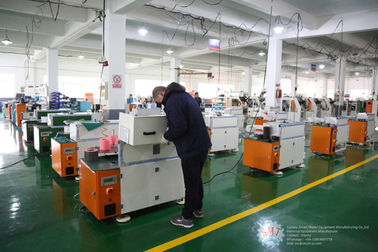

(5) Production Line Profile



With good service, professional team and reliable quality, Nide provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.
