Automobile Motor Wiper Motor Stator Integrated Testing Panel SMT-AN96951V

Automobile Motor Wiper Motor Stator Integrated Testing Panel SMT-AN96951V

  • Automobile Motor Wiper Motor Stator Integrated Testing Panel SMT-AN96951V
  • Automobile Motor Wiper Motor Stator Integrated Testing Panel SMT-AN96951V
Automobile Motor Wiper Motor Stator Integrated Testing Panel SMT-AN96951V
Product Details:
Place of Origin: China
Brand Name: SMT
Certification: ISO / SGS Audit
Model Number: SMT-AN96951V
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Electric Motor Stator Testing Machine is Packed By Wood Box.
Delivery Time: 48 - 64 days
Payment Terms: T/T, L/C
Supply Ability: 1pcs / 48 - 64 days
Contact Now
Detailed Product Description
Name: Automobile Motor Wiper Motor Stator Integrated Testing Panel Output Voltage: 100 - 1000VAC
Insulation Resistance: 1 - 500MΩ Output Frequency: 50Hz / 60Hz
Waveform Acquisition: 5kHz-40Mhz Several Tests: 1-9 Times, Continuous
Weight: About 32kg Size: 431x245x550mm
High Light:

automatic motor winding machine


induction motor winding machine

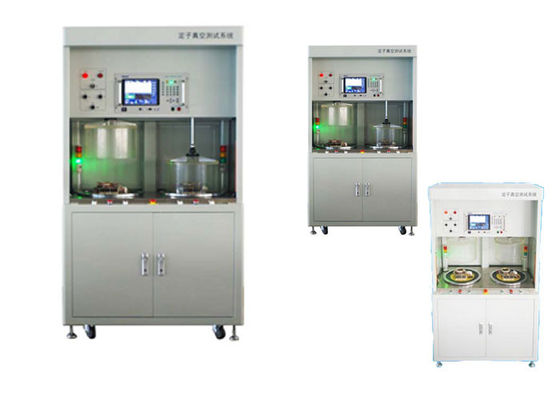

Automobile Motor Wiper Motor Stator Integrated Testing Panel SMT-AN96951V



1. All test items of electrical performance are done automatically at one time fast.

2. Each test items could be on or off randomly. Approval standard lso could be set up randomly

3. The machine will give acousto-optic alarm for reject stator

4. Do auto compensation to ambient temperature, it ensures test accuracy.

automatic count the quantity in total and reject ones. also it category the breakdown reason

5. Single working station/2 working station (selective), high test efficiency and perfect use

item program could be done according to the test requirement by customers.

6. Software adjusts the testing voltage automatically.

7.Systems switch device is made of imported high pressure vacuum steel spring relay, withstand voltage is 10000V, working test 100 million times.

8. It could save, edit and transfer each test standard.

9. Code scanner could be added to the machine according to the customer requirement. All concerning test data will display while you input the code No.


(1) Main Technical Information Of Our Product


Function ACW IR IW DCR Reverse Rotation L P-P ACW
AN96951A(F) —— —— —— Optional Optional
AN96951B(F) —— —— Optional Optional
AN96951M(F) Optional Optional
AN969-02071S(F) Stator test bench
AN969-01081B(F) 8 channels connection box
AN969-01161B(F) 16 channels connection box


(2) Description


1. Winding reverse: check if the stator winding is reversed

2. Multi-channel: Provide 8 channels configuration to 2 station mode, 16 channels configuration to single station mode

3. Large ACW capacity: Standard is 3KV/20mA, but can be up to 5Kv/100mA.

4. Large IW capacity: IW is improved to 0.1uF storage capacitor, stronger identification

5. Modify ACW mode: Case Hight voltage, wire high voltage and phase to phase mode

(3) Machine Main Characteristic


A station detects: vacuum between turns, voltage, insulation resistance, anti-embedded magnetic field rotation, once wiring complete all the testing;
Accurate and reliable: DSP technology, 14-bit, high-precision 16-bit AD converter, test consistency, repeatability and stability;
High speed and efficiency: all the testing process consists of a high-performance processing core of control, no multi-processor communications, high-speed production to meet the needs of the beat;
High integration: Cabinets beautiful atmosphere, compact structure, rational use of space, the components are integrated inside the cabinet, to avoid the piping, wiring connection problems caused by multi-machine combination, to maximize reduce equipment footprint, reduce staff travel distance and reduce Labor intensity.
Security is good: hand operation start button design, high sensitivity safety light curtain protection, effective protection of the operator and other personnel from mechanical damage and damage to high-voltage electric shock;
Vacuum generator speed: duplex test, each station is equipped with separate high-speed vacuum generator, vacuum gauge, a stator routine testing can be performed simultaneously with the vacuum generator, improve test beats, under pressure -60kpa 4-speed motor stator typical test time ≤10 seconds;


(4) Advantage

USB Data Support: Support U disk import, export model parameters, export test results; when more than one use in a device input model parameters, import through U disk to another device, such that multiple devices at the same time to create a new type of operation easier fast;
Serial Communication Support: Support RS232,485 serial communication, supports serial bar code scanner to read the data;
Easy maintenance: modular hardware design, the boot program self-diagnosis fault module can be 10 minutes quick fix; you can add or replace cards for device model upgrades, pneumatic components can be individually controlled movement, easy to debug and maintenance;


(5)Production Line Profile


With good service, professional team and reliable quality, Nide provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.


(6)About Us


Suzhou Smart motor Equipment Manufacturing Co.,Ltd is one of the high-tech key enterprises which specialize in designing, producing and selling motor manufacturing equipments in China. The company now has nearly 150 employees, including more than 30 engineers and technicians, with the building area about 20,000 square meters and a hundred sets of advanced production and test equipments. It is now qualified for designing and manufacturing full production line (starts from coil winding to final forming of a stator) for AC motors such as home appliance motor, industrial medium and small motors, pump motor, rolling door motor and automobile motor etc. In 2012, SMT passed the certification of ISO9001:2000 Quality Management System.
